2003 Suzuki TL1000R Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2003 Suzuki TL1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

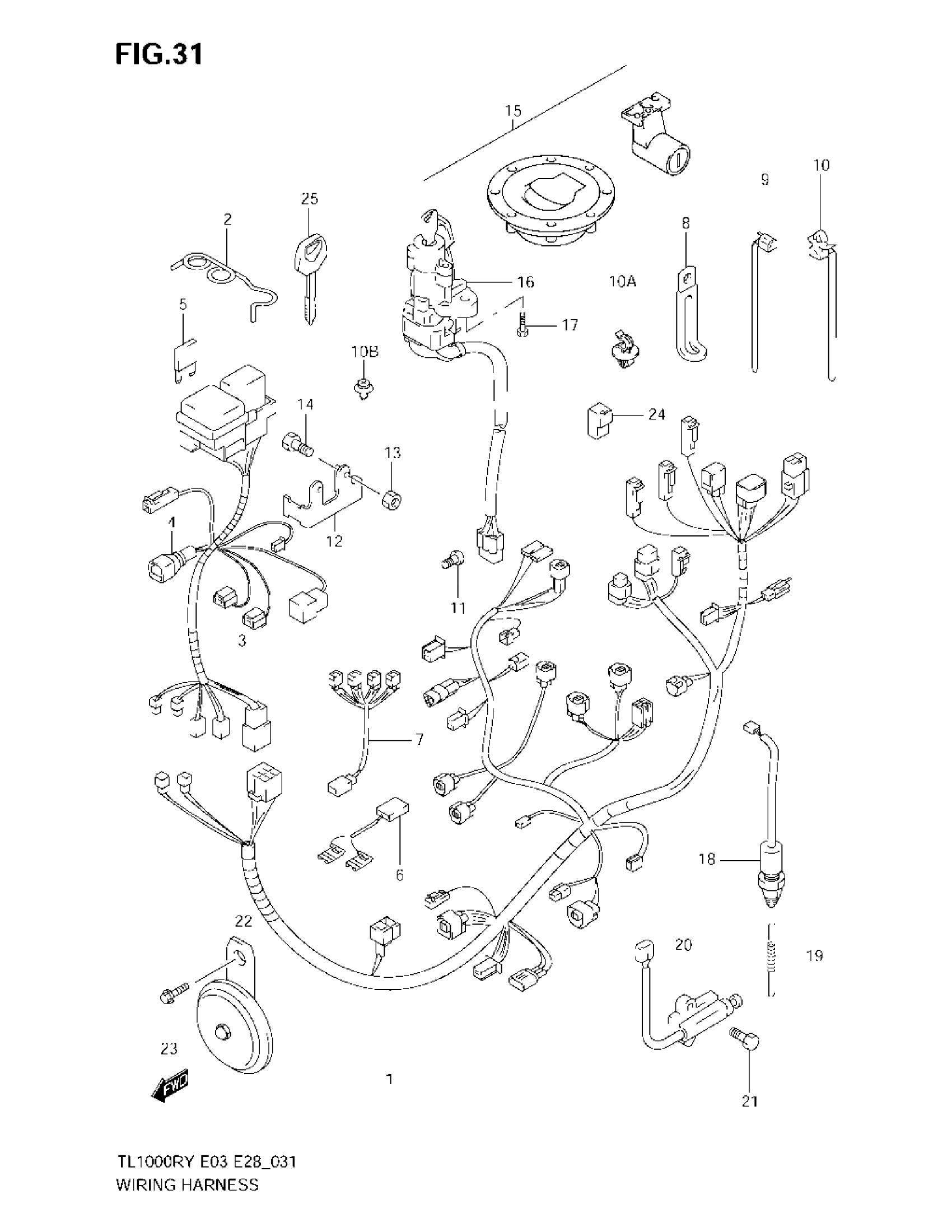

2003 Suzuki TL1000R Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1

36610-02F60

1
Out of stock

2

GUIDE, WIRING HARNESS

36619-02F00

1
Out of stock

3

HARNESS, WIRING NO.2 | Includes Item(s) 4 - 5

36620-02F60

1
Out of stock

4

COVER, SPEEDOMETER

36618-33E00

1
Out of stock

5

FUSE (10A)

09481-10501

2
Out of stock

5

FUSE (15A)

09481-15501

3
Out of stock

6

WIRE, IGNITION COIL LEAD

36852-02F00

2
Out of stock

7

WIRE, INJECTION LEAD

36854-02F60

1
Out of stock

8

CLAMP This part replaces 09404-06432.

09404-06039

2
Out of stock

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

3
Out of stock

9

CLAMP (L:125)

09407-14403

4
Out of stock

9

CLAMP (L:165)

09407-18402

2
Out of stock

9

CLAMP (L:235)

09407-25401

1
Out of stock

10

CLAMP (L:90)

09407-11402

1
Out of stock

10

CLAMP This part replaces 09407-14408.

09407-17402

3
Out of stock

10

CLAMP This part replaces 09407-17401.

09407-17402

2
Out of stock

10A

CLAMP

09403-07325

1
Out of stock

10B

CLIP

09409-07305-5PK

1
Out of stock

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

12

BRACKET, FUSE BOX

36744-33E00

1
Out of stock

13

2

$7.13

In stock

14

.SCREW This part replaces 02142-05123.

02142-0512A

2
Out of stock

15

LOCK SET

37103-33870

1
Out of stock

15

LOCK SET | E33; Includes Item(s) 16

37103-33880

1
Out of stock

16

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

1
Out of stock

17

SCREW (8X20)

09139-08016

2
Out of stock

18

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

19

SPRING

09443-06012

1
Out of stock

20

SWITCH ASSY,SID This part replaces 37840-26X50.

37840-26X52

1
Out of stock

21

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

22

HORN ASSY

38500-02F60

1
Out of stock

23

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

24

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

1
Out of stock

25

KEY, BLANK | OPT

37146-33E00

1
Out of stock
