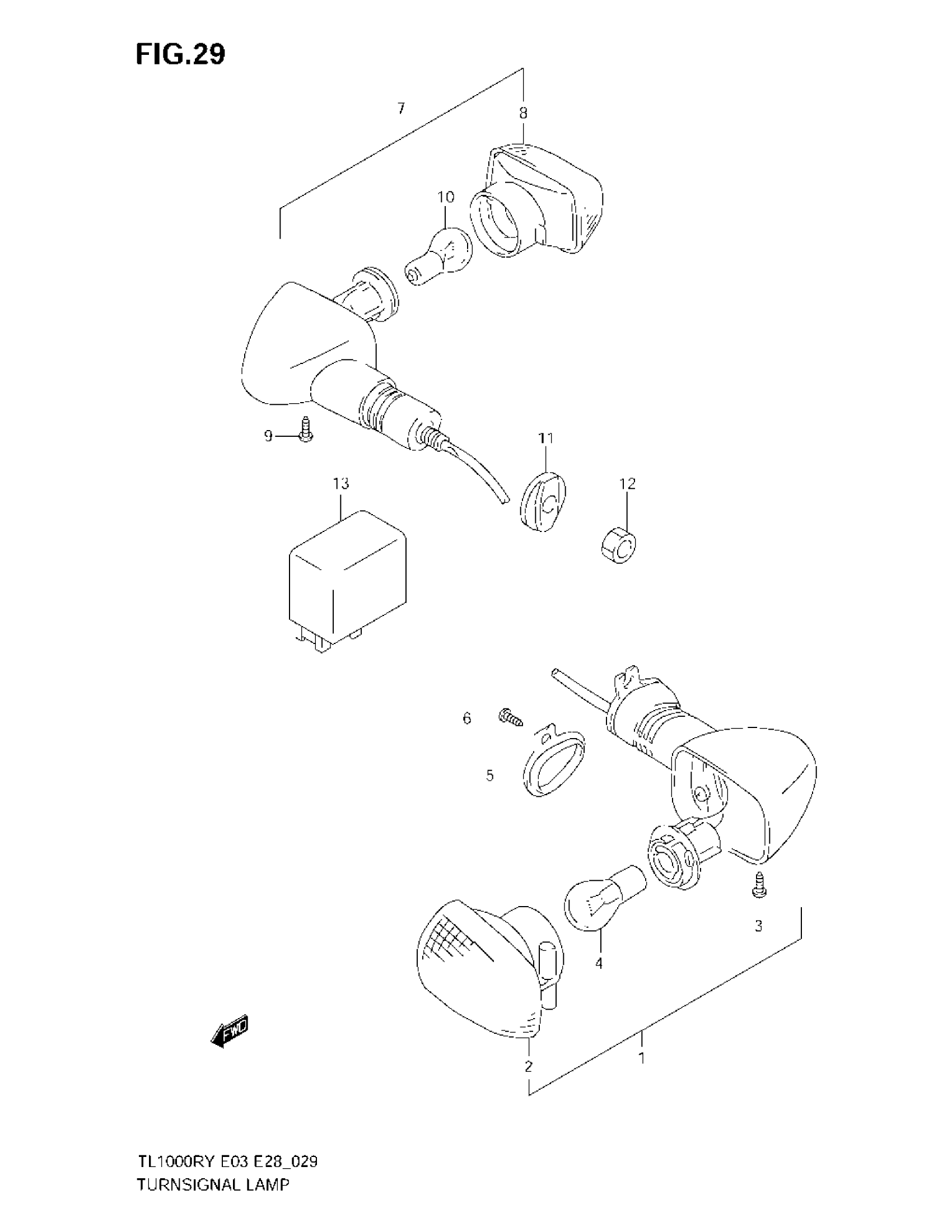

Suzuki TL1000R (2003) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH | MODEL W/X/Y/K1/K2 This part replaces 35601-33E00.

35601-33E30

$104.15

1

LAMP ASSY, FRONT TURNSIGNAL R | MODEL K3

35601-33E30

$104.15

1

LAMP ASSY, FRONT TURNSIGNAL LH | MODEL W/X/Y/K1/K2 This part replaces 35602-33E00.

35602-33E30

$80.07

1

LAMP ASSY, FRONT TURNSIGNAL L | MODEL K3; Includes Item(s) 2 - 4

35602-33E30

$80.07

2

LAMP UNIT

35610-33E00

$36.97

3

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

4

BULB(12V,21W)

09471-12045

$2.95

5

PLATE, FRONT

35629-33E00

$6.75

6

SCREW This part replaces 03511-05103.

03511-0510A

$2.17

7

LAMP ASSY, REAR TURNSIGNAL RH

35603-33E60

Unavailable

7

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 8 - 10

35604-33E60

Unavailable

8

LAMP UNIT

35610-33E00

$36.97

9

SCREW This part replaces 03242-04123.

03242-0412B

$3.23

10

BULB (12V,21W)

09471-12045

$2.95

11

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$3.69

12

NUT This part replaces 08310-00103.

08310-0010A

$1.86

13

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
