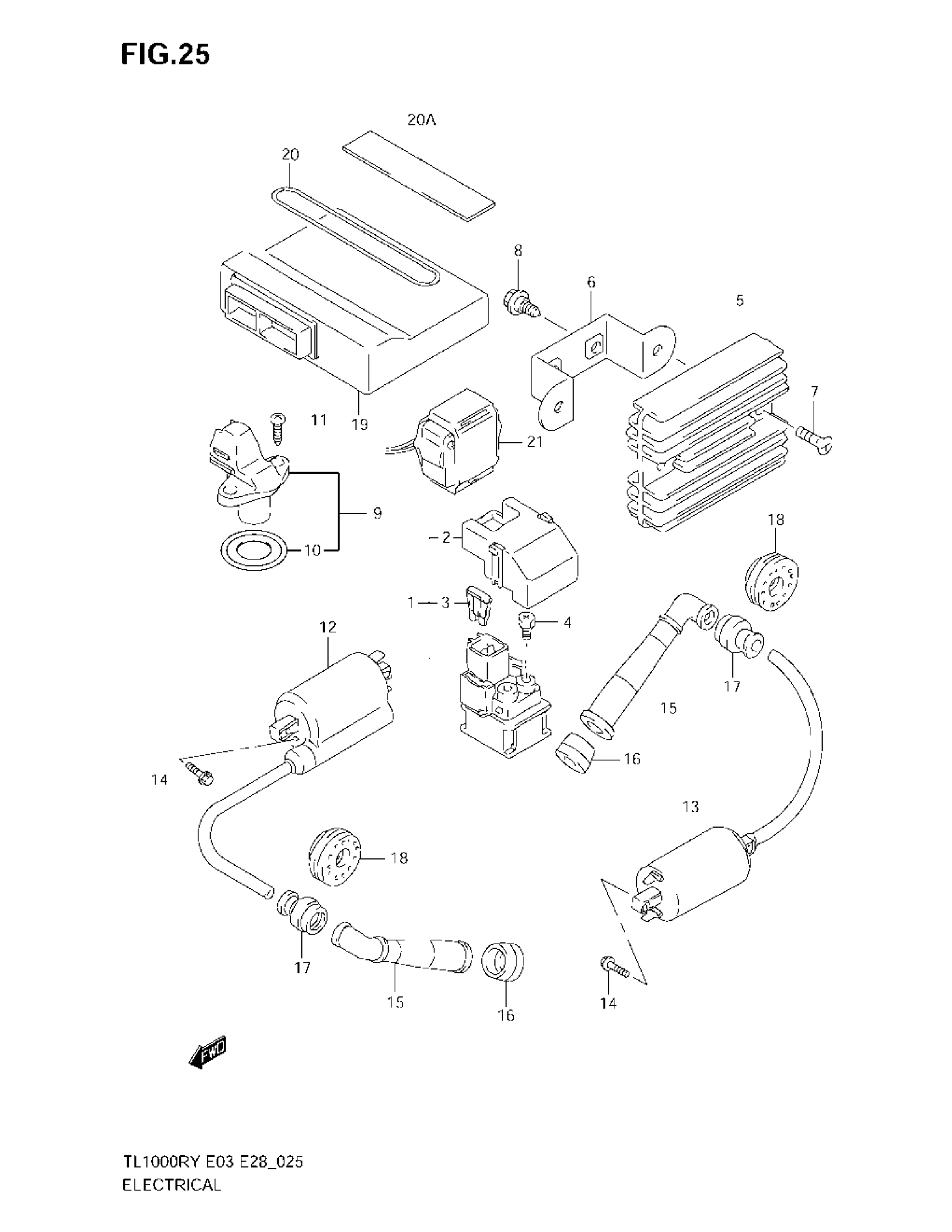

Suzuki TL1000R (2003) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$61.62

2

.COVER This part replaces 31861-21E20.

31861-47E00

$18.23

3

FUSE, 30A

09481-30101

$2.28

4

BOLT (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-02F00

$365.12

6

BRACKET, RECT FTG

32831-02F10

Unavailable

7

BOLT | MODEL W/X/Y This part replaces 09136-06093.

01560-0620A

$2.97

7

BOLT | MODEL K1/K2/K3 This part replaces 02162-06203.

02162-0620C

$1.73

8

BOLT, BRACKET (6X16) | MODEL W

09111-06066

$2.64

8

BOLT, BRACKET (6X16) | MODEL X/Y/K1/K2/K3

09113-06001

$2.75

9

SENSOR ASSY, CAM POSITION | MODEL W

32160-02F10

$167.32

9

SENSOR ASSY, CAM POSITION | MODEL X/Y/K1/K2

32160-02F00

Unavailable

9

SENSOR ASSY, CAM POSITION | MODEL K3; Includes Item(s) 10

32160-02F10

$167.32

10

PACKING

32161-02F00

$10.97

11

SCREW This part replaces 02112-06163.

02112-0616A

$1.43

12

COIL ASSY, IGNITION

33410-02F00

$130.28

13

COIL ASSY, IGNITION

33420-38A11

$175.35

14

SCREW This part replaces 02162-05203.

02162-0520B

$2.85

15

CAP ASSY, SPARK PLUG

33510-48B10

$29.09

16

SEAL, SPARK PLUG CAP

33541-23E01

$5.80

17

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

18

COVER, SPARK PLUG CAP

33543-02F00

$8.35

19

CONTROL UNIT, FI

32920-02FD0

Unavailable

20

BAND, EPI CONT

33651-12910

$4.93

20A

CUSHION (80X80X2) | CUT AS REQUIRED PROFILE(80X20)

33652-07D00

$5.17

21

SENSOR ASSY,FUE This part replaces 33960-02F00.

33960-02F01

$85.07
