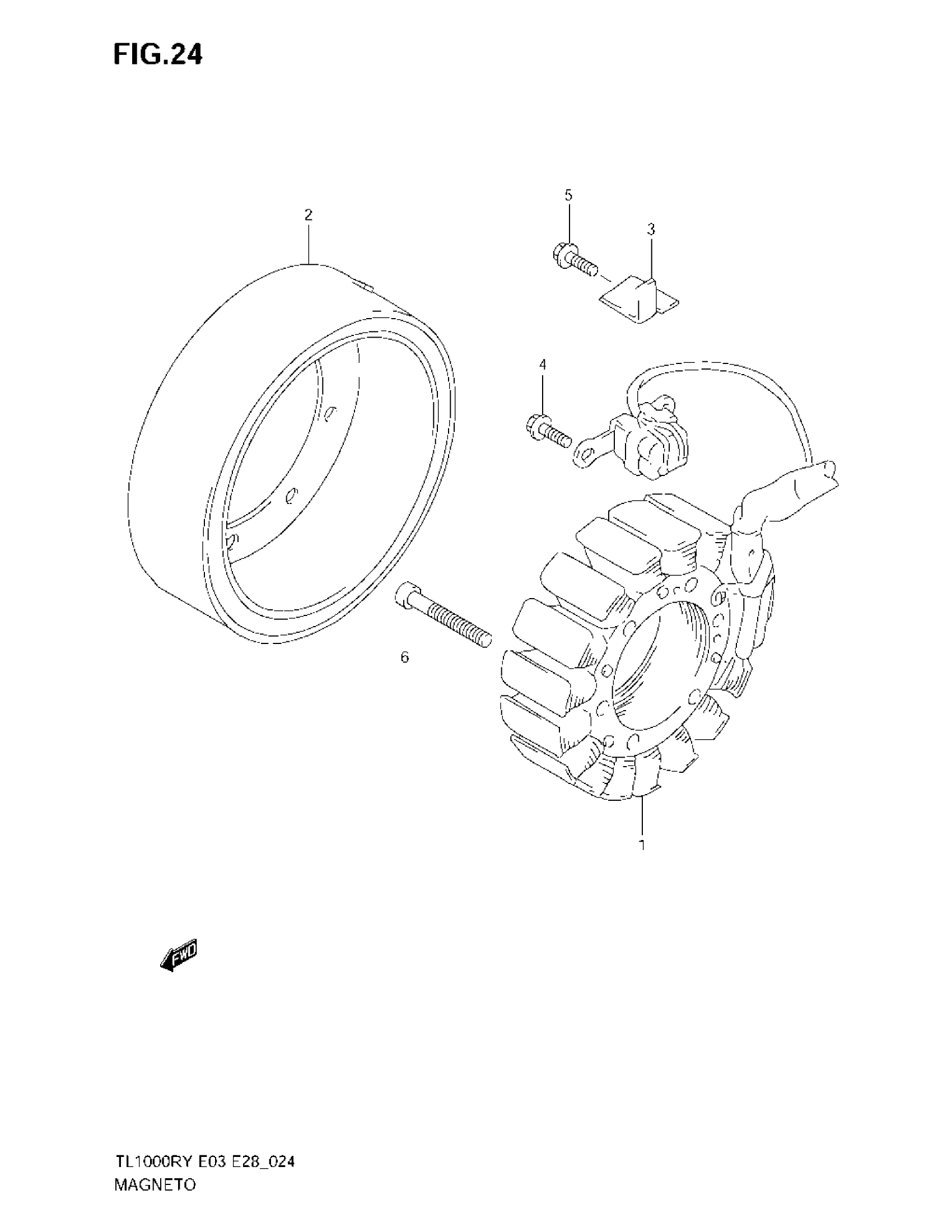

Suzuki TL1000R (2003) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-02F00

$557.62

2

ROTOR ASSY

32102-02F00

Unavailable

3

CLAMP, MAGNETO

32371-13E00

$3.35

4

BOLT This part replaces 01547-05103.

01547-0510B

$3.22

5

BOLT This part replaces 01547-05103.

01547-0510B

$3.22

6

BOLT This part replaces 07130-06353.

07130-0635B

$3.04
