2025 Kawasaki Teryx4 S Special Edition Sun Top Diagram

← All diagrams

Find the part on the Sun Top diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

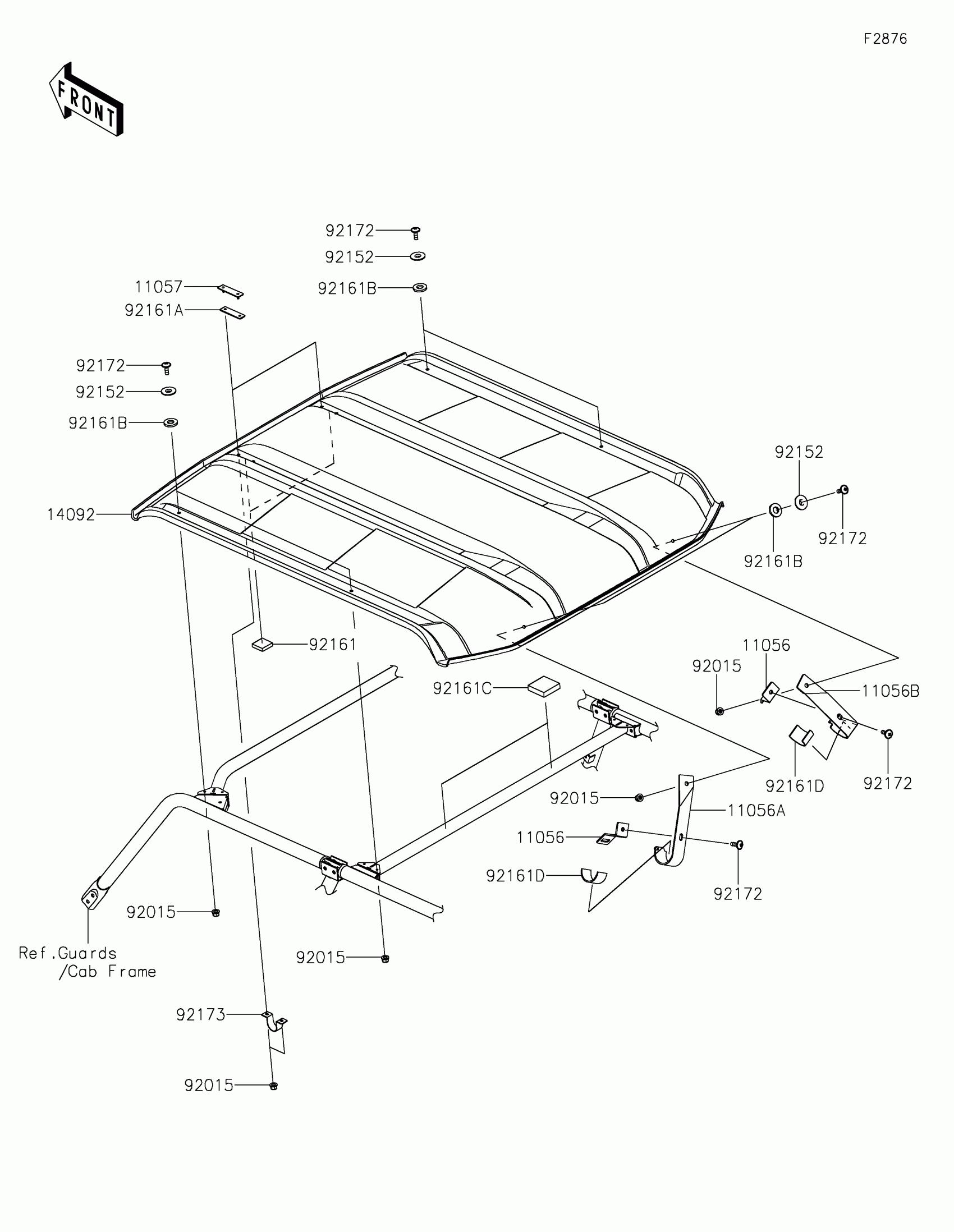

2025 Kawasaki Teryx4 S Special Edition Sun Top Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1405

1
Out of stock

11056A

BRACKET

11056-7112

1
Out of stock

11056B

BRACKET

11056-7113

1
Out of stock

11057

BRACKET

11057-0074

1
Out of stock

14092

COVER,SUN TOP

14092-1065

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92152

COLLAR,6.3X26X5.1

92152-1569

1
Out of stock

92161

DAMPER,25.4X25.4X6.3

92161-1405

1
Out of stock

92161A

DAMPER

92161-1476

1
Out of stock

92161B

DAMPER

92161-1477

1
Out of stock

92161C

DAMPER,40X40X10

92161-1603

1
Out of stock

92161D

DAMPER,25X65X1.6

92161-2086

1
Out of stock

92172

SCREW,6X18

92172-0002

1
Out of stock

92173

CLAMP,R22

92173-0884

1
Out of stock
