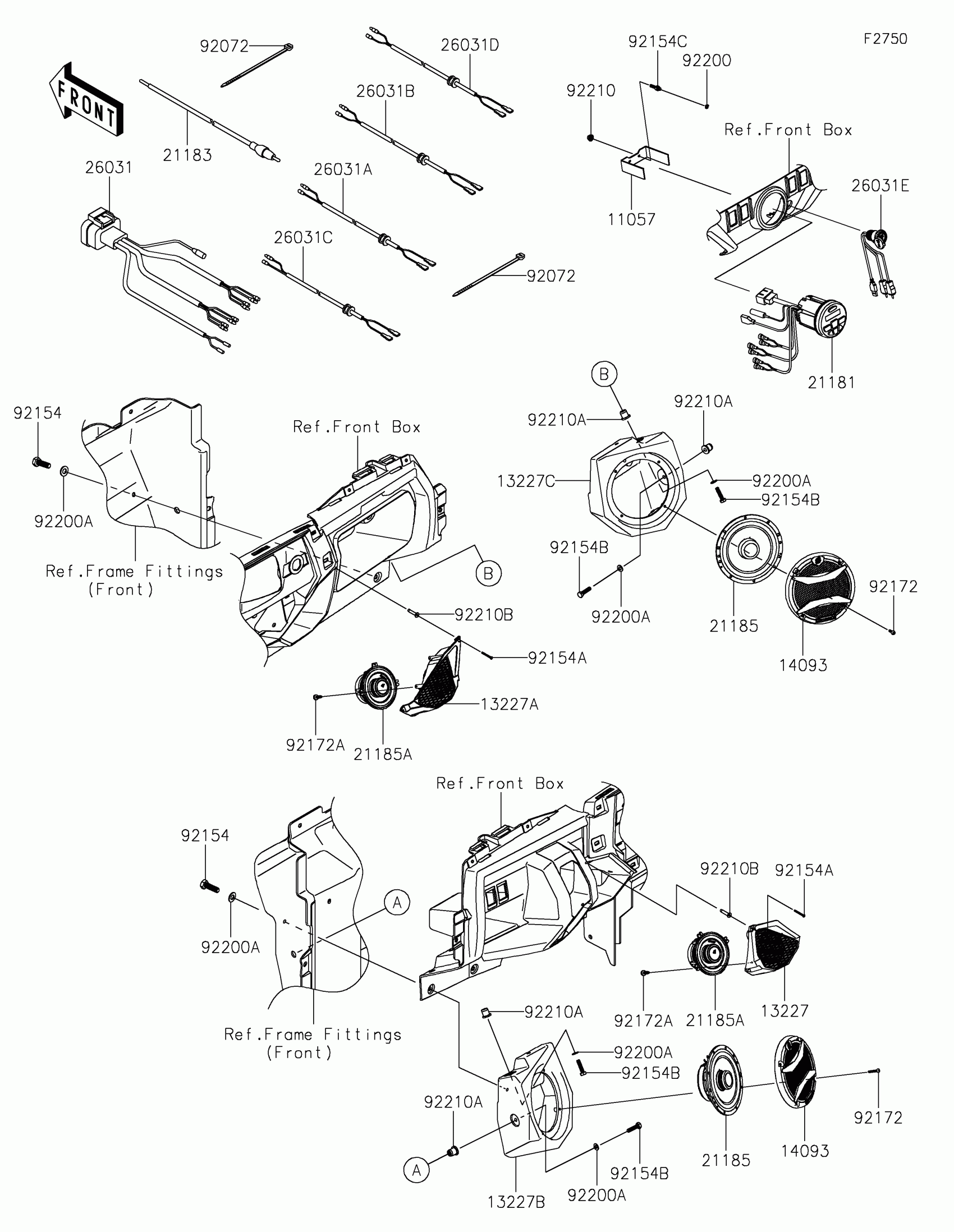

Kawasaki Teryx4 S Special Edition Other(Audio System) Diagram

#

Description
Price

11057

BRACKET,AMPLIFIER

11057-2282

$5.41

13227

HOUSING,DASH POD,LH

13227-0708

$44.83

13227A

HOUSING,DASH POD,RH

13227-0709

$44.83

13227B

HOUSING,LOWER POD,LH

13227-0710

$166.49

13227C

HOUSING,LOWER POD,RH

13227-0711

$166.49

14093

COVER,SPEAKER GRILL

14093-1058

$34.81

21181

AMPLIFIER,AUDIO

21181-0016

$397.14

21183

ANTENNA,AM/FM RADIO

21183-0016

$6.66

21185

SPEAKER

21185-0015

$86.89

21185A

SPEAKER

21185-0019

$70.11

26031

HARNESS,RADIO

26031-3742

$56.36

26031A

HARNESS,LOWER POD SPEAKER,RH

26031-3743

$78.69

26031B

HARNESS,DASH POD SPEAKER,LH

26031-3755

$11.58

26031C

HARNESS,LOWER POD SPEAKER,LH

26031-3756

$78.69

26031D

HARNESS,DASH POD SPEAKER,RH

26031-3757

$11.58

26031E

HARNESS,USB OUTLET

26031-3836

$36.53

92072

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT,HEX HEAD,5/16-18X25.4MM

92154-4330

$5.64

92154A

BOLT,HEX HOLE,6-32X31.75MM

92154-4335

$3.12

92154B

BOLT,HEX HEAD,5/16-18X31.75MM

92154-4360

$5.85

92154C

BOLT,THREADED

92154-7100

$8.07

92172

SCREW,TORX,ST4.8X25

92172-1389

$1.75

92172A

SCREW,TORX,ST4.2X13

92172-1431

$11.73

92200

WASHER,SPRING,4.4X6.4X2.10

92200-2257

$0.64

92200A

WASHER,8X15.9X1.2

92200-2491

$1.46

92210

NUT,FLANGED,4MM

92210-1704

$0.78

92210A

NUT,WELL,5/16-18

92210-1876

$13.83

92210B

NUT,WELL,6-32

92210-1881

$4.42
