2025 Kawasaki Teryx4 S Special Edition Door Diagram

← All diagrams

Find the part on the Door diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

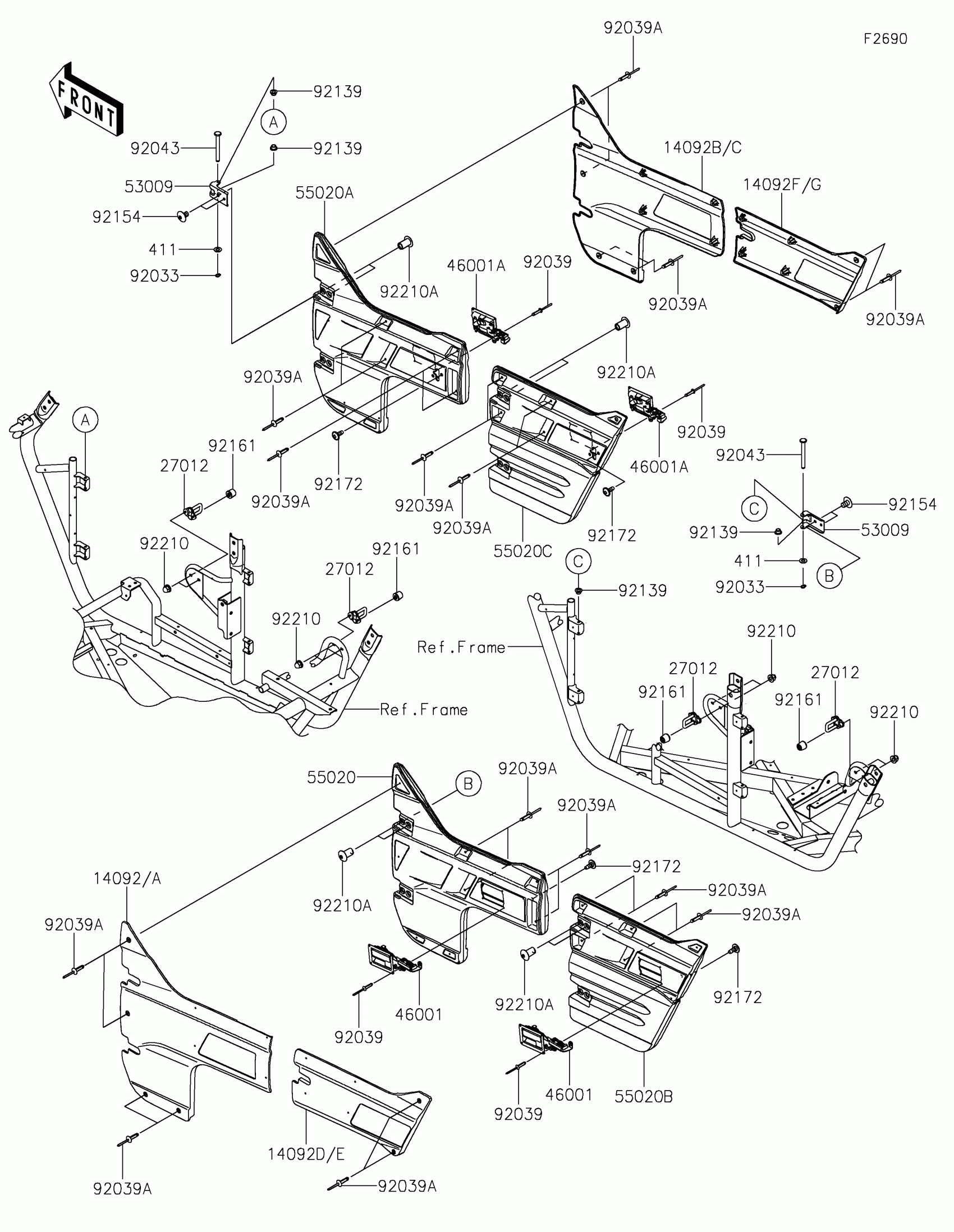

2025 Kawasaki Teryx4 S Special Edition Door Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092A

COVER,SIDE GUARD,FR,LH,S.BLACK

14092-0748-839

1
Out of stock

14092C

COVER,SIDE GUARD,FR,RH,S.BLACK

14092-0749-839

1
Out of stock

14092E

COVER,SIDE GUARD,RR,LH,S.BLACK

14092-0751-839

1
Out of stock

14092G

COVER,SIDE GUARD,RR,RH,S.BLACK

14092-0752-839

1
Out of stock

27012

HOOK

27012-0705

1
Out of stock

46001

HANDLE-ASSY,SIDE GUARD,LH

46001-0556

1
Out of stock

46001A

HANDLE-ASSY,SIDE GUARD,RH

46001-0557

1
Out of stock

53009

HINGE

53009-0303

1

$4.97

In stock

55020

GUARD,SIDE,FR,LH

55020-0737

1

$136.06

In stock

55020A

GUARD,SIDE,FR,RH

55020-0738

1

$136.06

In stock

55020B

GUARD,SIDE,RR,LH

55020-0739

1

$136.06

In stock

55020C

GUARD,SIDE,RR,RH

55020-0740

1

$136.06

In stock

92033

RING-SNAP

92033-0719

1
Out of stock

92039

RIVET,4.0X17.5

92039-0703

1
Out of stock

92039A

RIVET,5X23.3

92039-0769

1
Out of stock

92043

PIN,6X56

92043-0743

1
Out of stock

92139

BUSHING,6X8X6

92139-0709

1
Out of stock

92154

BOLT,TORX,8X13

92154-1911

1
Out of stock

92161

DAMPER,9X28X24.3

92161-1456

1
Out of stock

92172

SCREW,6X16

92172-0711

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock

92210A

NUT,TORX,8MM

92210-1442

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock
← Decals Frame →
