2025 Kawasaki Teryx4 S Special Edition Front BOX Diagram

← All diagrams

Find the part on the Front BOX diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

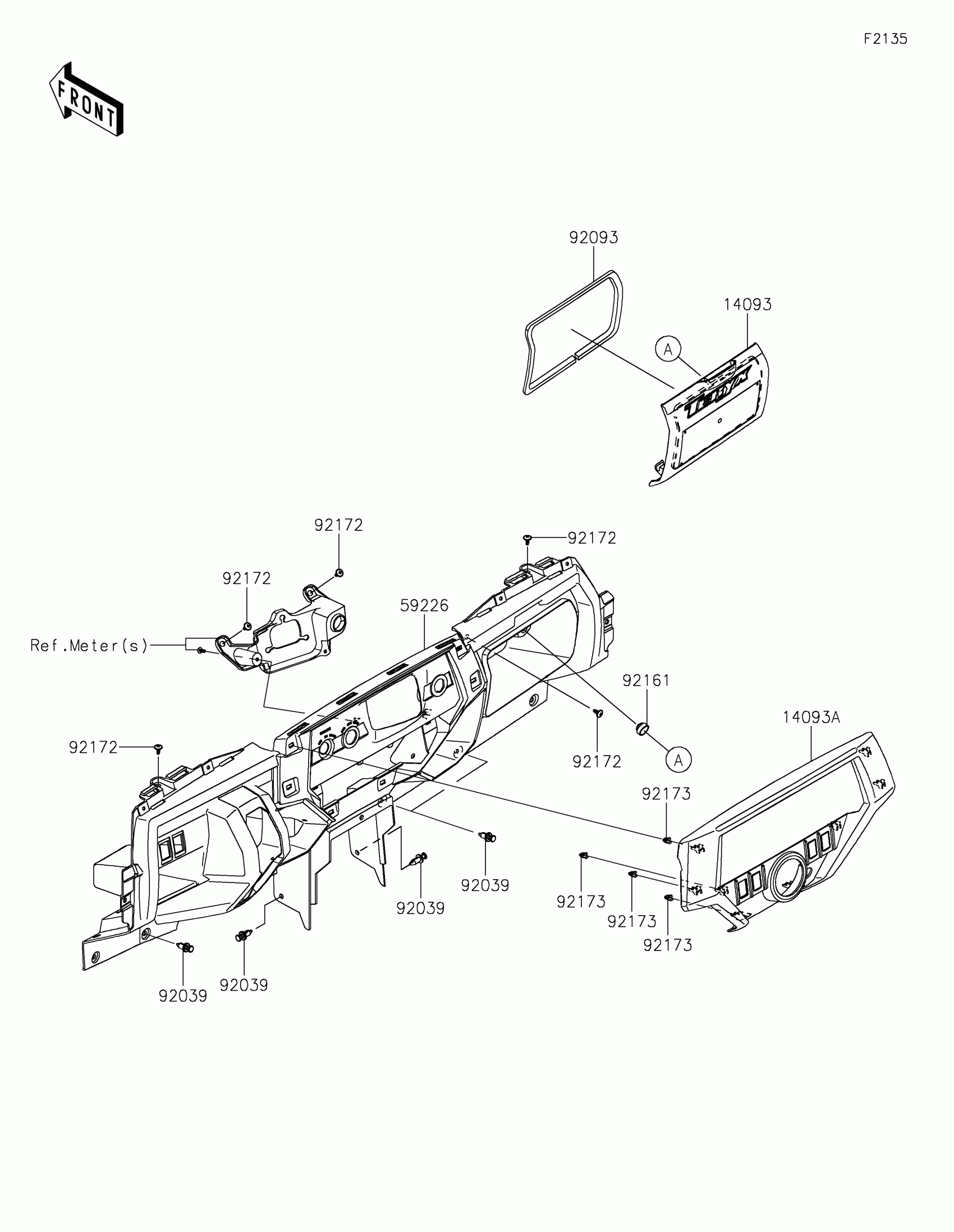

2025 Kawasaki Teryx4 S Special Edition Front BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,GLOVE BOX

14093-0204

1
Out of stock

14093A

COVER,CENTER PANEL

14093-1279

1
Out of stock

59226

PANEL-CONTROL

59226-0761

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92093

SEAL,6X10

92093-0658

1
Out of stock

92161

DAMPER

92161-0568

1
Out of stock

92172

SCREW,6X16

92172-0826

1
Out of stock

92173

CLAMP

92173-1423

1
Out of stock
