2025 Kawasaki Teryx4 S Special Edition Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

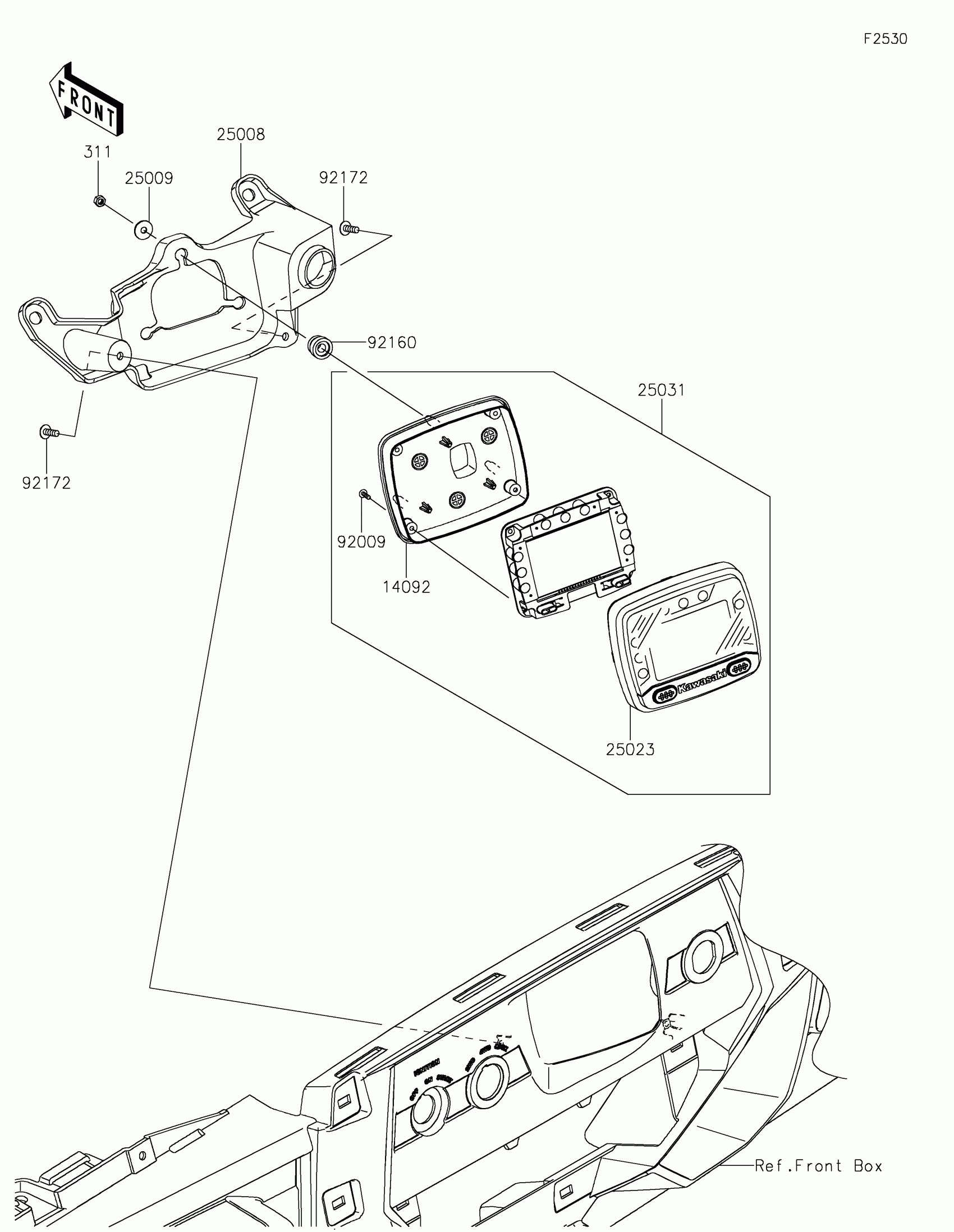

2025 Kawasaki Teryx4 S Special Edition Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,METER,LWR

14092-0834

1
Out of stock

25008

BRACKET-METER

25008-0043

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0075

1
Out of stock

25031

METER-ASSY,LCD

25031-0692

1
Out of stock

92009

SCREW,TAPPING,3X12

92009-1255

1
Out of stock

92160

DAMPER

92160-1460

1
Out of stock

92172

SCREW,TAPPING,5X14

92172-0265

1
Out of stock

311

NUT-HEX,5MM

311AB0500

1
Out of stock
