2025 Kawasaki Teryx4 S Special Edition Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

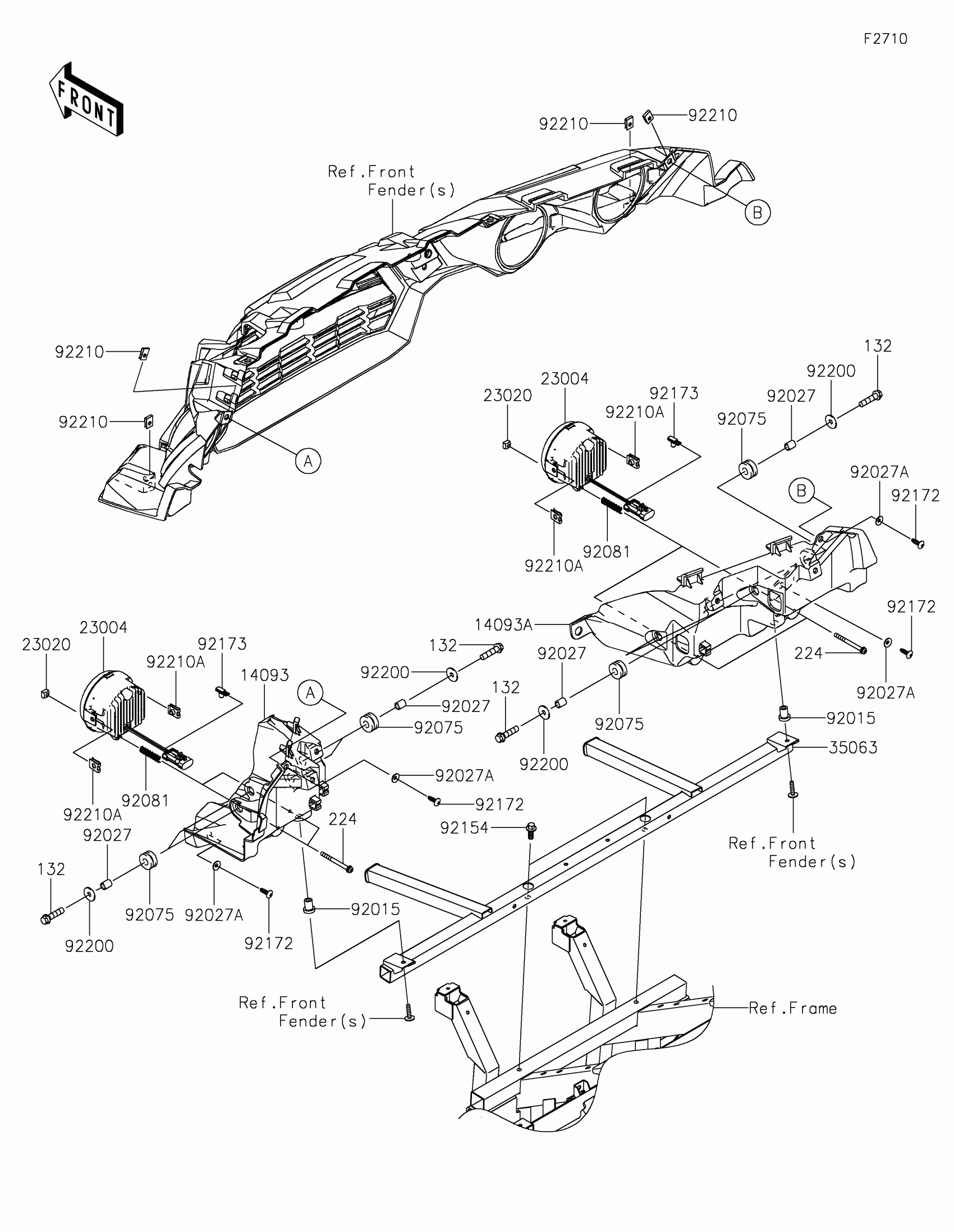

2025 Kawasaki Teryx4 S Special Edition Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,HEADLIGHT,LH

14093-0207

1
Out of stock

14093A

COVER,HEADLIGHT,RH

14093-0208

1
Out of stock

23004

LAMP-HEAD

23004-0370

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

35063

STAY,HEADLAMP

35063-1405

1
Out of stock

92015

NUT,RUBBER,6MM

92015-1692

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92027A

COLLAR

92027-4020

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92154

BOLT,FLANGED,8X20

92154-1226

1
Out of stock

92172

SCREW,TAPPING,6X20

92172-0883

1
Out of stock

92173

CLAMP

92173-1491

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock

92210A

NUT

92210-1125

1
Out of stock

132

1

$2.29

In stock

224

SCREW-PAN-WP-CROS,4X45

224AA0445

1
Out of stock
