2025 Kawasaki Teryx4 S Special Edition Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

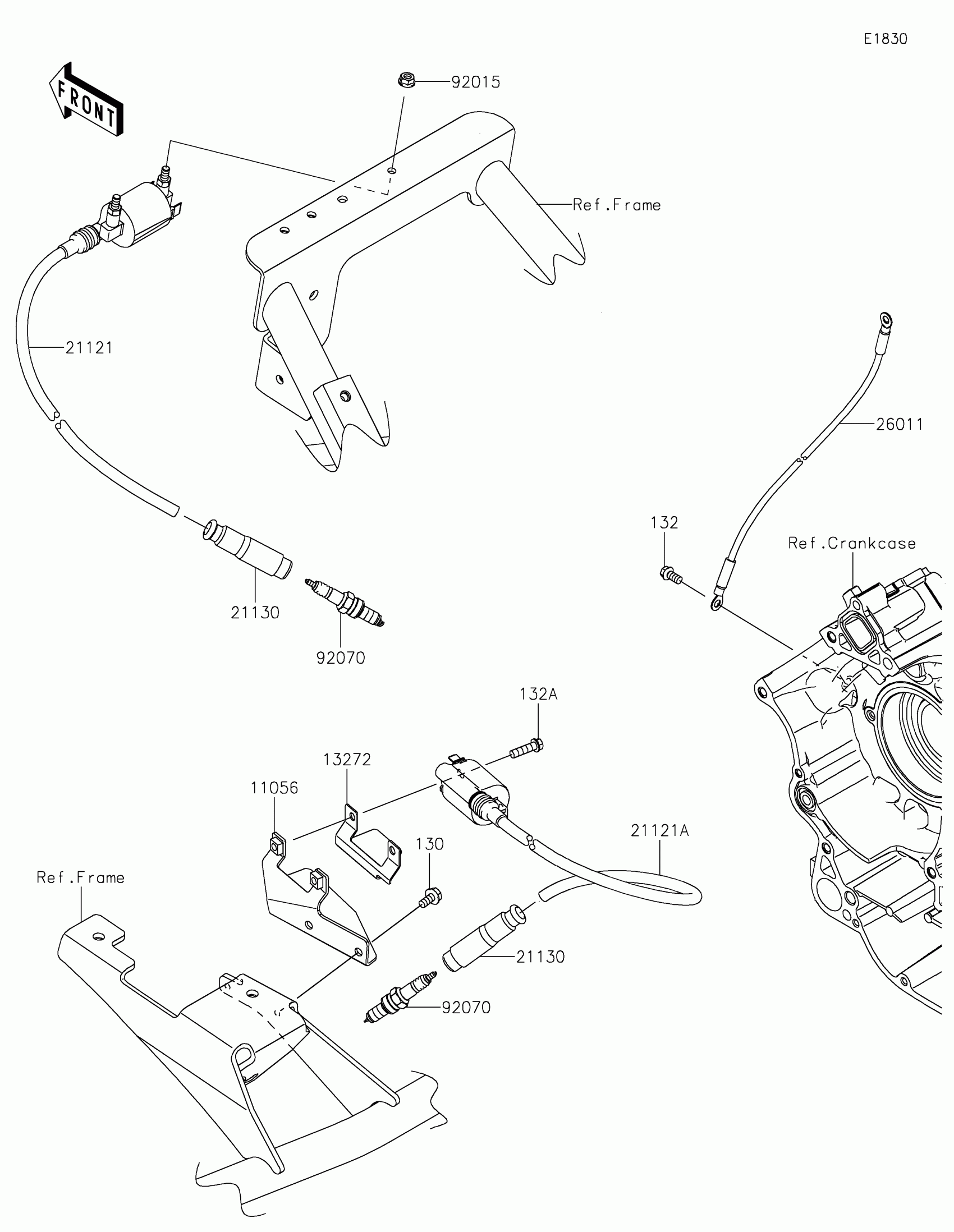

2025 Kawasaki Teryx4 S Special Edition Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2673

1
Out of stock

13272

PLATE

13272-1541

1

$12.85

In stock

21121

COIL-IGNITION

21121-0716

1
Out of stock

21121A

COIL-IGNITION

21121-0717

1
Out of stock

21130

CAP-SPARK PLUG

21130-1071

1
Out of stock

26011

WIRE-LEAD

26011-0712

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92070

PLUG-SPARK,CPR7EA-9(NGK)

92070-0022

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$1.12

In stock

132A

1

$1.66

In stock
