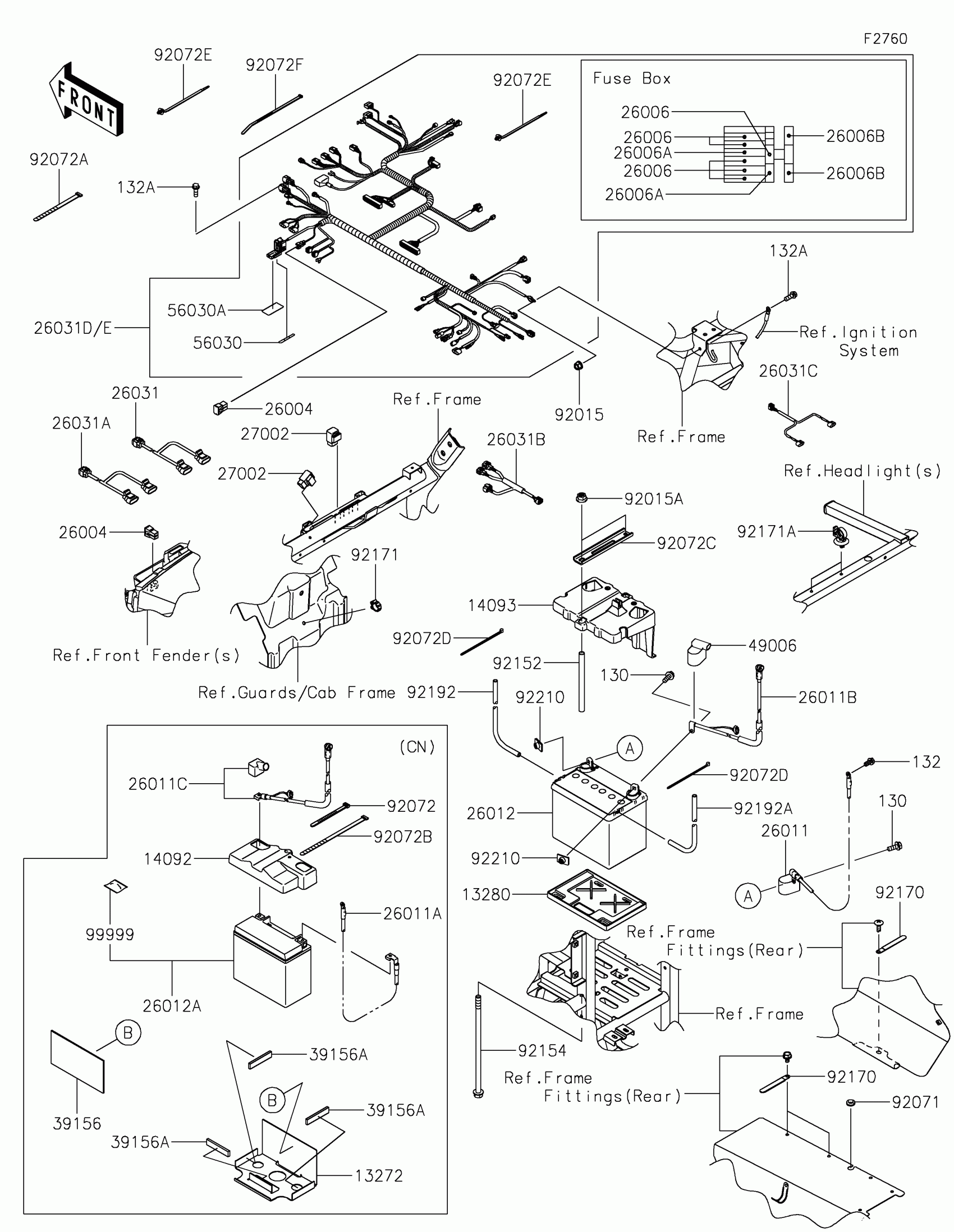

Kawasaki Teryx4 S Special Edition Chassis Electrical Equipment Diagram

#

Description
Price

13272

PLATE,BATTERY BOTTOM

13272-1322

$9.12

13280

HOLDER,BATTERY

13280-0709

$7.64

14092

COVER,BATTERY

14092-0978

$7.81

14093

COVER,BATTERY

14093-0546

$7.81

26004

FUSE-ASSY,40A

26004-0035

$4.21

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$3.71

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,BATTERY(-)

26011-1852

$25.32

26011A

WIRE-LEAD,BATTERY(-)

26011-1853

$50.12

26011B

WIRE-LEAD,BATTERY (+)

26011-2423

$79.63

26011C

WIRE-LEAD,BATTERY(+)

26011-2426

$93.82

26012

BATTERY,12V 14AH

26012-0107

$115.35

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-0787

$111.29

26031

HARNESS,HEAD LAMP,RH,2P

26031-2387

$31.89

26031A

HARNESS,HEAD LAMP,LH,2P

26031-2428

$31.89

26031B

HARNESS,SUB,FI

26031-2430

$25.86

26031C

HARNESS,SUB,TAIL LAMP

26031-2431

$85.55

26031D

HARNESS,MAIN

26031-3758

$733.71

26031E

HARNESS,MAIN

26031-3759

$733.71

27002

RELAY-ASSY

27002-1062

$40.25

39156

PAD,175X94X3

39156-0837

Unavailable

39156A

PAD,15X72X5

39156-0838

Unavailable

49006

BOOT

49006-0648

$15.00

56030

LABEL,FUSE BOX,30A

56030-0404

$3.31

56030A

LABEL,FUSE BOX

56030-0900

$2.37

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92015A

NUT,FLANGED,8MM

92015-1406

$3.39

92071

GROMMET,10X20X6

92071-0733

$0.92

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=218

92072-032

$3.81

92072C

BAND

92072-0707

$7.44

92072D

BAND,92X2.4

92072-0791

$0.47

92072E

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072F

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR,10.2X12.7X165.8

92152-1555

$2.58

92154

BOLT,FLANGED,8X185

92154-0889

$8.92

92170

CLAMP

92170-1925

$1.98

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93

92171A

CLAMP

92171-0453

$3.12

92192

TUBE,7X10X450

92192-1695

$1.61

92192A

TUBE,7X10X560

92192-1818

$2.00

92210

NUT,PLATE,6MM

92210-1352

$1.73

99999

BOLT NUT KIT

99999-0311

$10.14

130

BOLT-FLANGED,6X16

130BA0616

$0.97

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16
