2013 Kawasaki TERYX4™ 750 4x4 Eps Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2013 Kawasaki TERYX4™ 750 4x4 Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

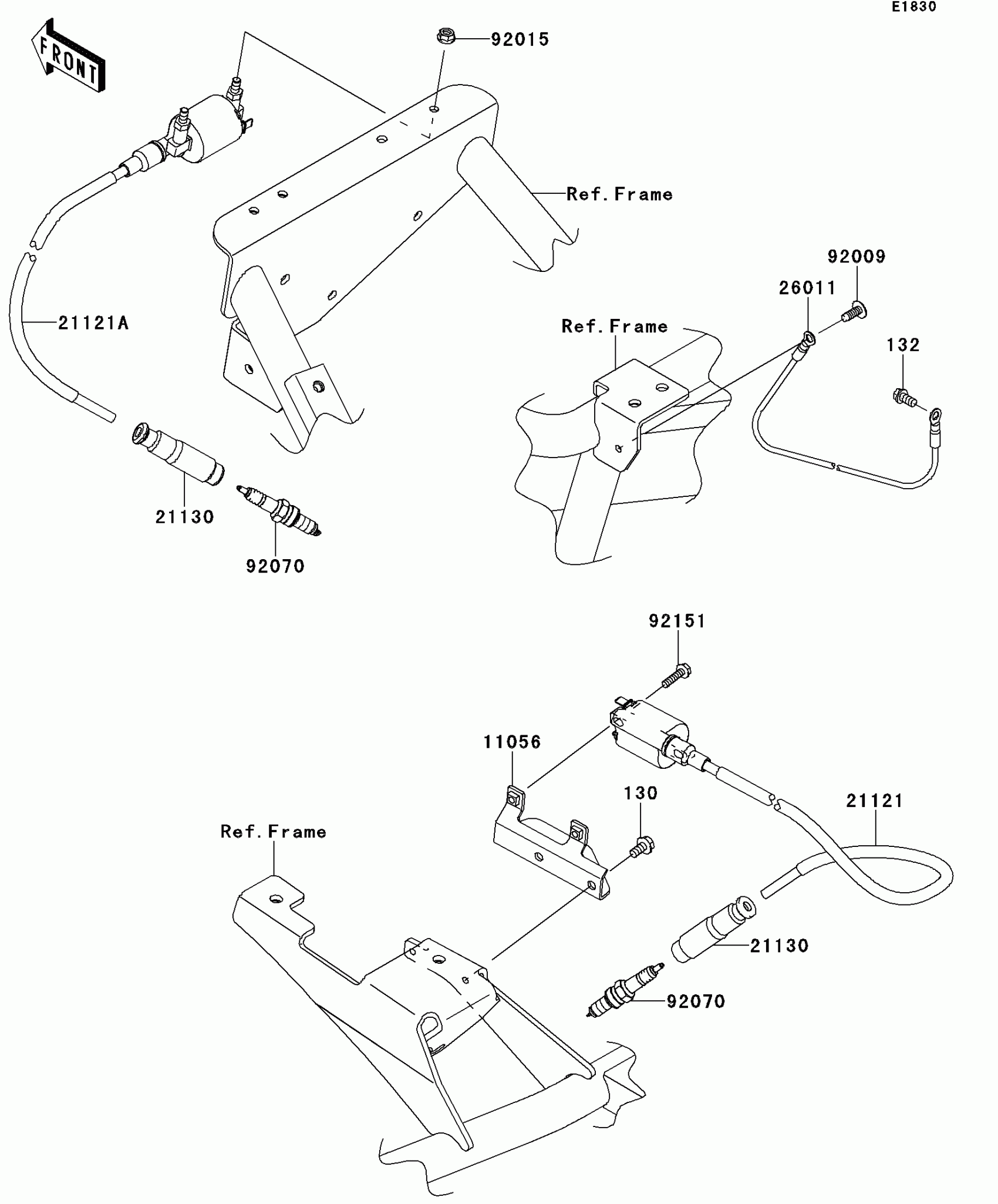

2013 Kawasaki TERYX4™ 750 4x4 Eps Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0714

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BD0612

1
Out of stock

21121

COIL-IGNITION

21121-0045

1
Out of stock

21121A

COIL-IGNITION,FR

21121-0702

1
Out of stock

21130

CAP-SPARK PLUG

21130-1071

1
Out of stock

26011

WIRE-LEAD

26011-0712

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92070

PLUG-SPARK,CPR7EA-9(NGK)

92070-0022

1
Out of stock

92151

BOLT,SOCKET,5X20

92151-1096

1
Out of stock
