2013 Kawasaki TERYX4™ 750 4x4 Eps Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2013 Kawasaki TERYX4™ 750 4x4 Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

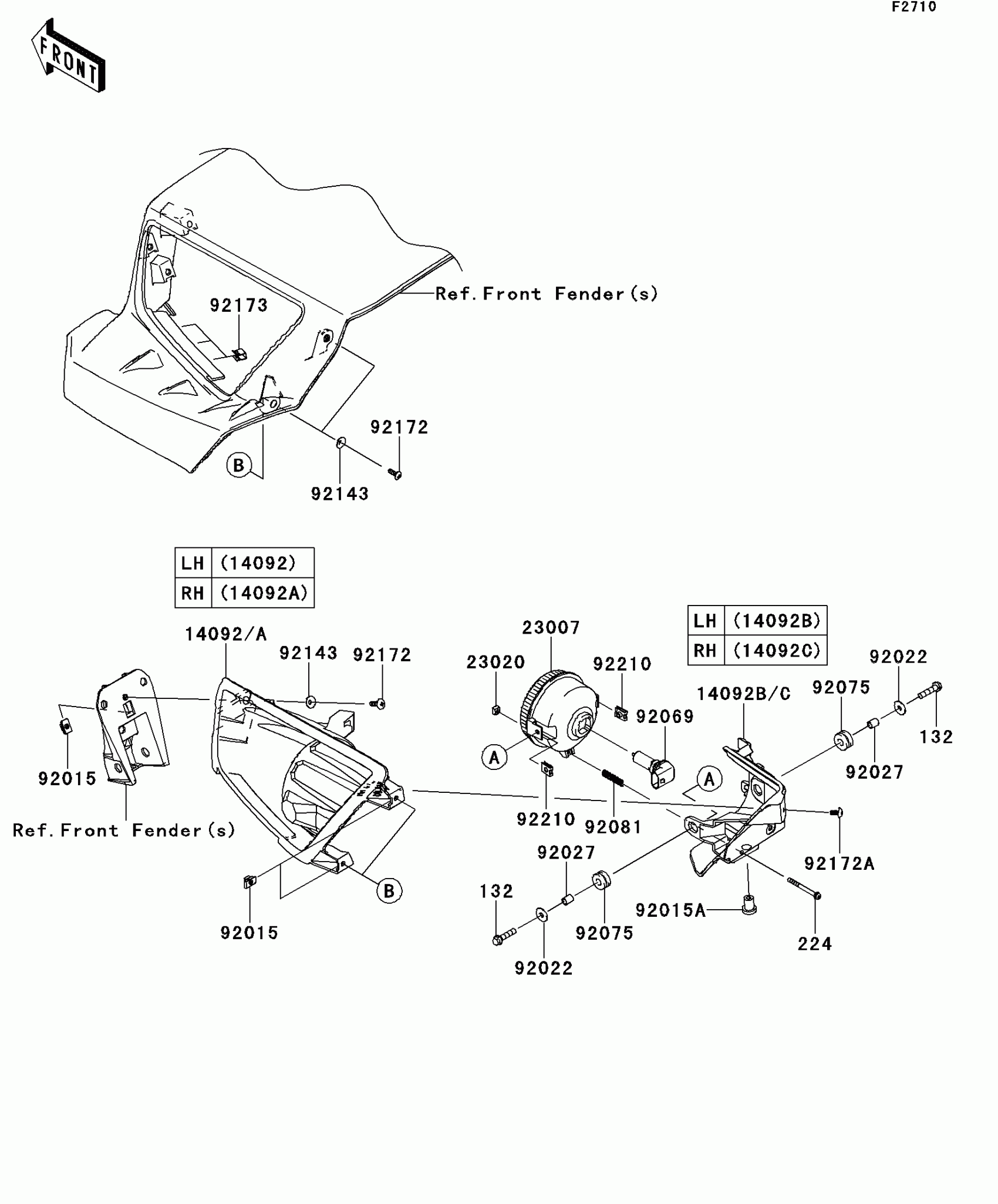

2013 Kawasaki TERYX4™ 750 4x4 Eps Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X25

132BA0625

1
Out of stock

14092

COVER,HEAD LAMP,FR,LH

14092-0054

1
Out of stock

14092A

COVER,HEAD LAMP,FR,RH

14092-0055

1
Out of stock

14092B

COVER,HEAD LAMP,RR,LH

14092-0056

1
Out of stock

14092C

COVER,HEAD LAMP,RR,RH

14092-0057

1
Out of stock

224

SCREW-PAN-WP-CROS,4X45

224AA0445

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-0096

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

92015

NUT,5MM

92015-1627

1
Out of stock

92015A

NUT,RUBBER,6MM

92015-1692

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 35/35W

92069-0019

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92172

SCREW,5X16

92172-0322

1
Out of stock

92172A

SCREW,TAPPING,5X10

92172-1061

1
Out of stock

92173

CLAMP

92173-0104

1
Out of stock

92210

NUT

92210-1125

1
Out of stock
