2024 Kawasaki Teryx KRX®4 1000 Es Front Box Diagram

← All diagrams

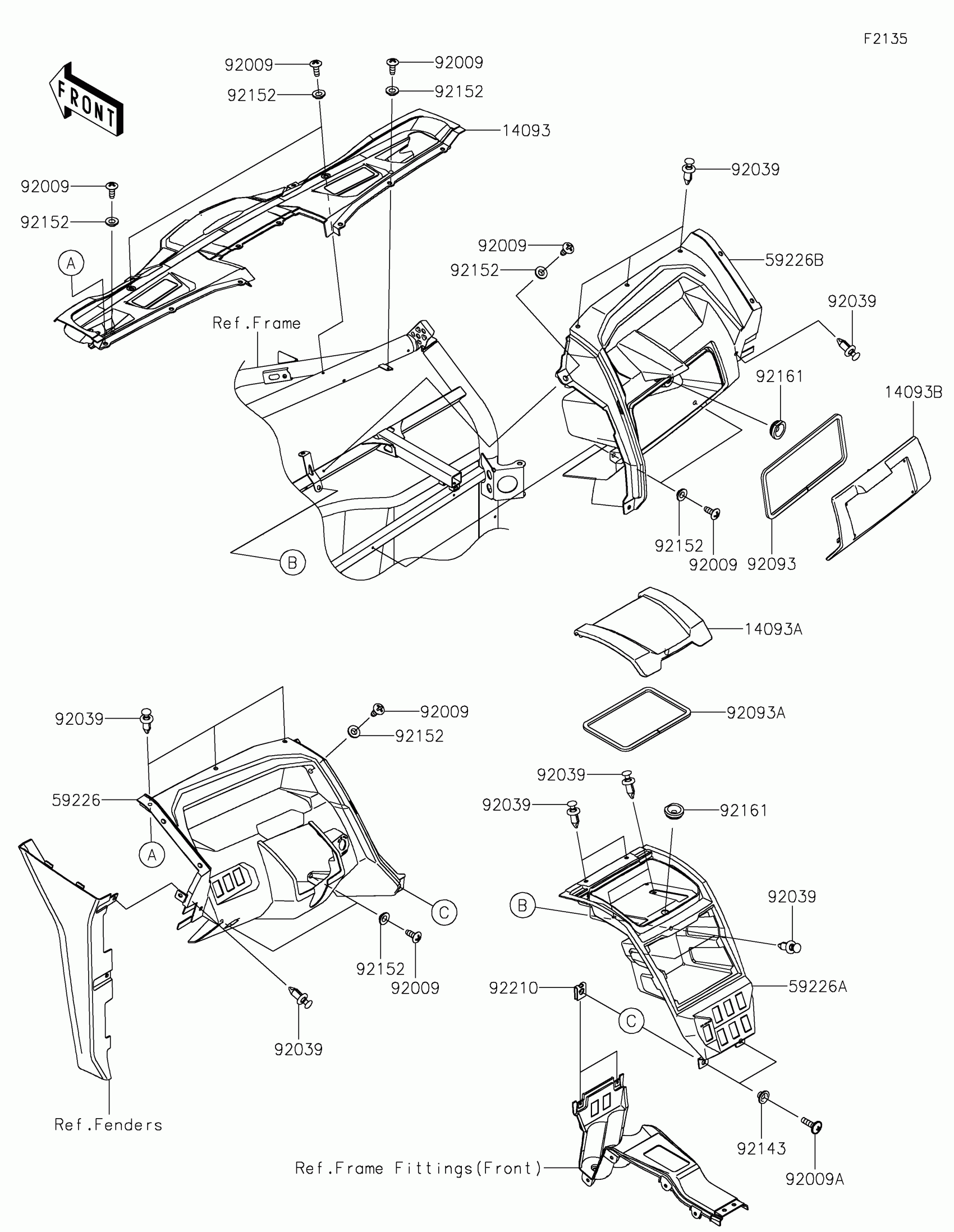

Find the part on the Front Box diagram for your 2024 Kawasaki Teryx KRX®4 1000 Es, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Teryx KRX®4 1000 Es Front Box Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER

14093-0829

1

$152.18

In stock

14093A

COVER,STORAGE,UPP

14093-0831

1

$16.10

In stock

14093B

COVER,STORAGE,LWR

14093-0832

1

$50.31

In stock

59226

PANEL-CONTROL,LH

59226-0745

1

$132.69

In stock

59226A

PANEL-CONTROL,CNT

59226-0755

1

$107.80

In stock

59226B

PANEL-CONTROL,RH

59226-0757

1

$174.70

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92039

RIVET

92039-0776

1

$0.80

In stock

92093

SEAL,10X6X825

92093-0729

1

$2.63

In stock

92093A

SEAL,10X6X725

92093-0730

1

$2.58

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1

$4.75

In stock

92161

DAMPER,7.8X30X11

92161-1953

1

$1.08

In stock

92210

NUT

92210-1125

1
Out of stock
