2020 Kawasaki Teryx KRX® 1000 Throttle Diagram

← All diagrams

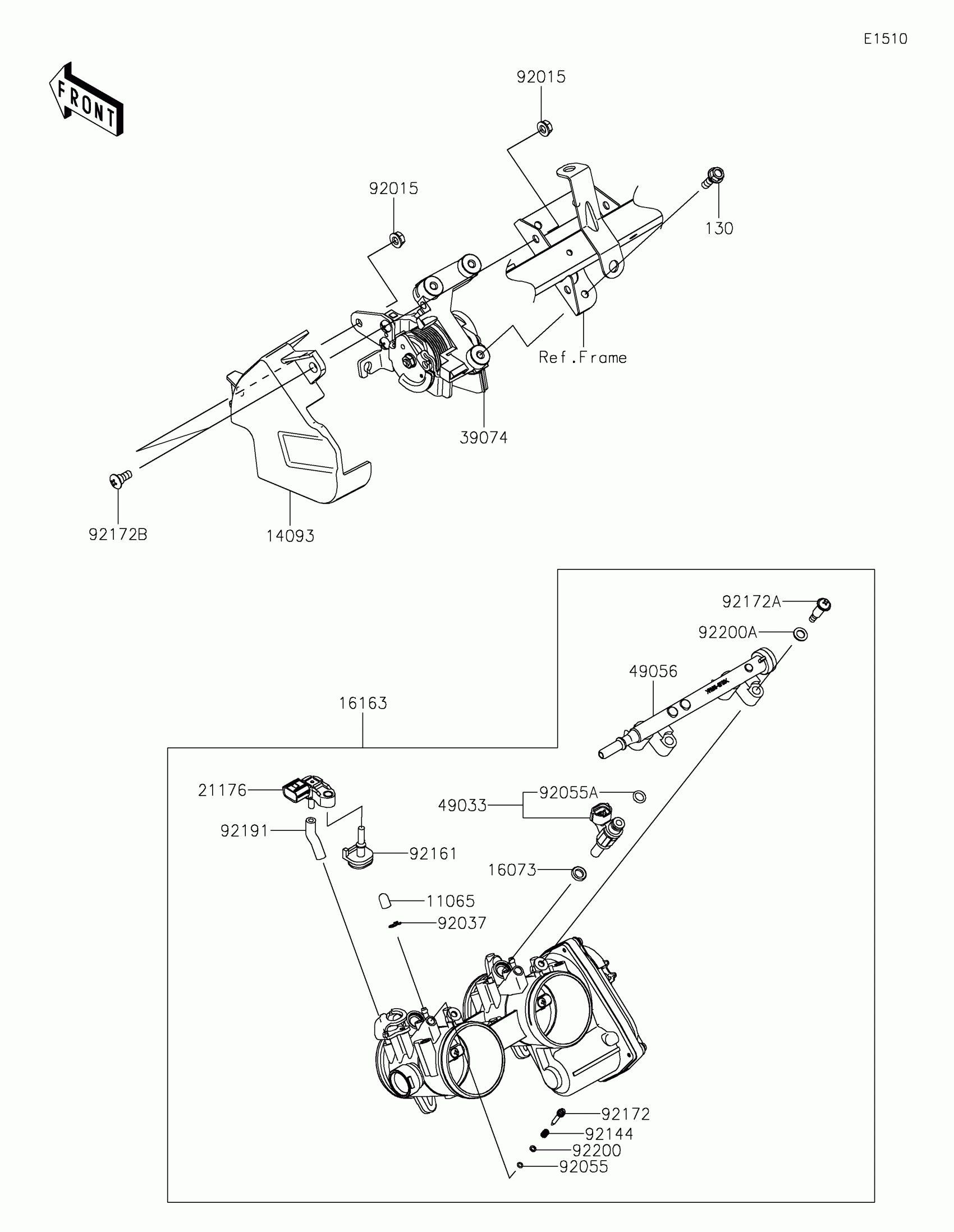

Find the part on the Throttle diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0072

1
Out of stock

14093

COVER,APS

14093-0953

1
Out of stock

16073

INSULATOR

16073-0848

1
Out of stock

16163

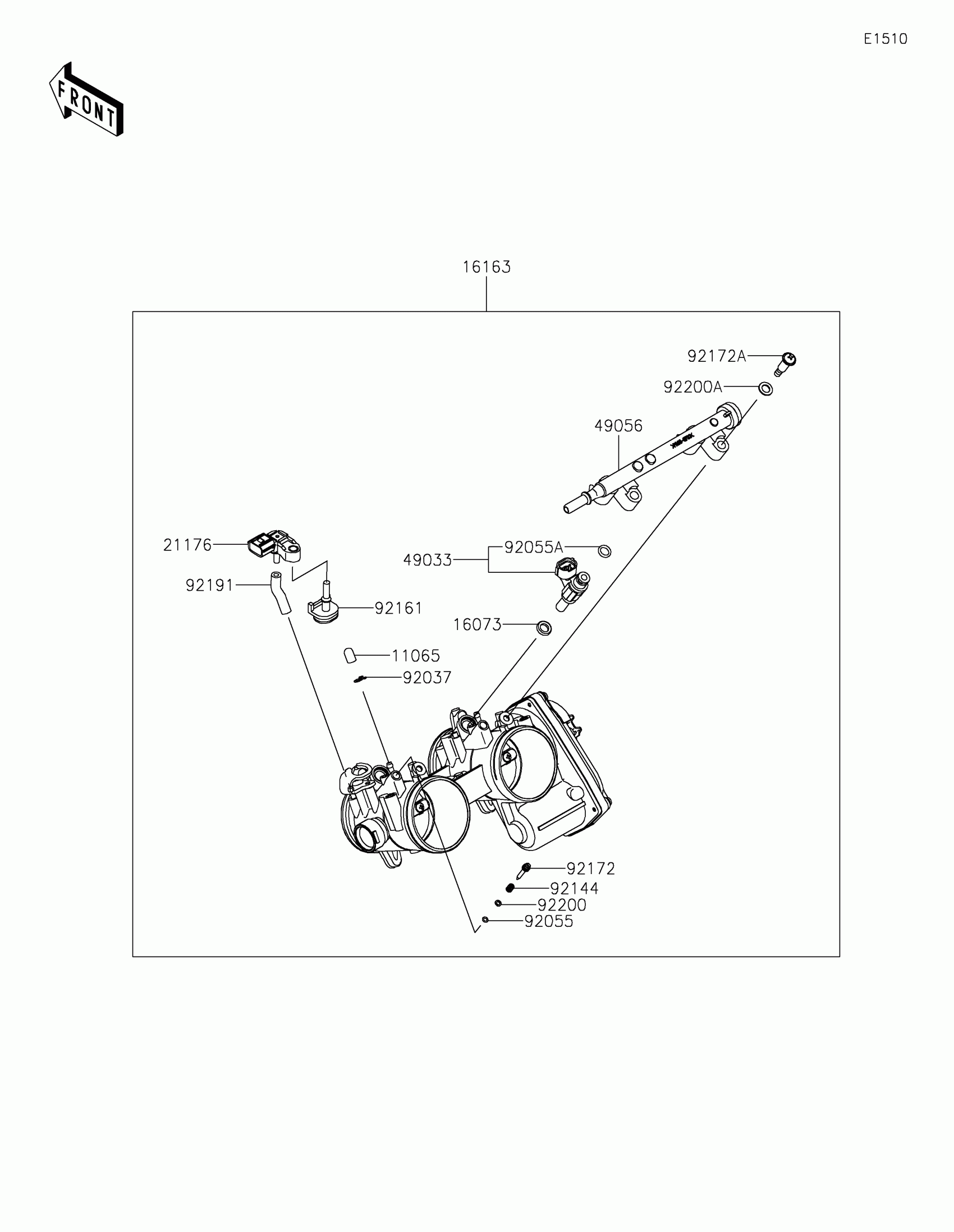

THROTTLE-ASSY

16163-0991

1
Out of stock

21176

SENSOR,PRESSURE

21176-0906

1
Out of stock

39074

LEVER-ASSY-THROTTLE

39074-0004

1
Out of stock

49033

NOZZLE-INJECTION

49033-0040

1
Out of stock

49056

PIPE-INJECTION

49056-0564

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,TUBE

92037-1124

1
Out of stock

92055

RING-O

92055-0840

1
Out of stock

92055A

RING-O,INJECTION NOZZLE

92055-0937

1
Out of stock

92144

SPRING,THROTTLE STOP SCREW

92144-1674

1
Out of stock

92161

DAMPER

92161-0673

1
Out of stock

92172

SCREW

92172-0156

1
Out of stock

92172A

SCREW,PIPE INJECTION

92172-0828

1
Out of stock

92172B

SCREW,6X16

92172-1333

1
Out of stock

92191

TUBE,3.2X7.4X40

92191-1551

1
Out of stock

92200

WASHER,PILOT AIR SCREW

92200-1564

1
Out of stock

92200A

WASHER

92200-3807

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
