2020 Kawasaki Teryx KRX® 1000 Fuel Pump Diagram

← All diagrams

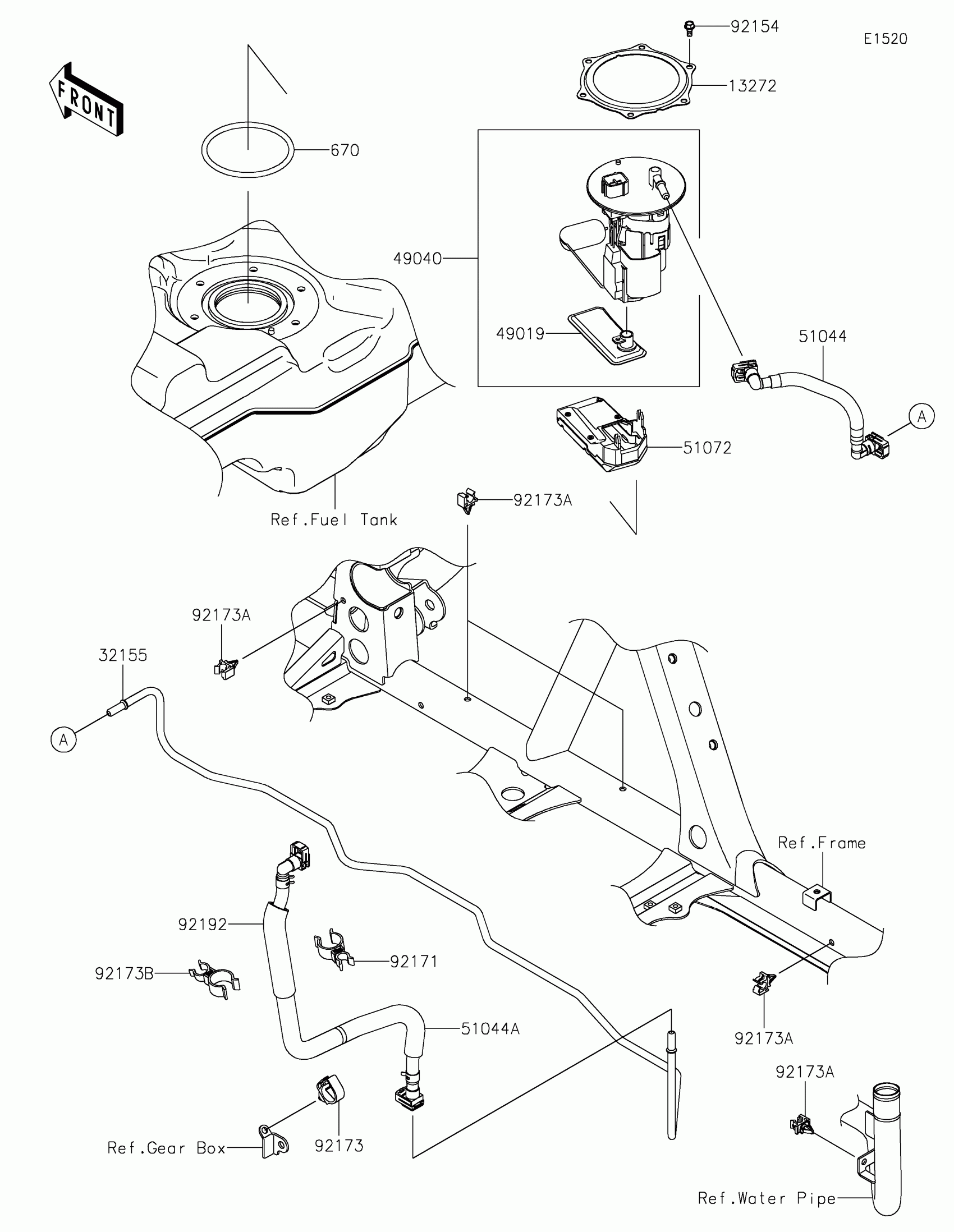

Find the part on the Fuel Pump diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2500

1
Out of stock

32155

PIPE,FUEL

32155-3718

1
Out of stock

49019

FILTER-FUEL

49019-0034

1
Out of stock

49040

PUMP-FUEL

49040-0782

1
Out of stock

51044

TUBE-ASSY,FUEL PUMP-PIPE

51044-0905

1
Out of stock

51044A

TUBE-ASSY,PIPE-ENGINE

51044-0944

1
Out of stock

51072

CHAMBER-FUEL

51072-0007

1
Out of stock

92154

BOLT,FUEL PUMP

92154-1326

1
Out of stock

92171

CLAMP

92171-0762

1
Out of stock

92173

CLAMP

92173-0861

1
Out of stock

92173A

CLAMP,FUEL PIPE

92173-1213

1
Out of stock

92173B

CLAMP,CLIP

92173-2286

1
Out of stock

92192

TUBE,CORRUGATED,19.5X23.8X120

92192-2335

1
Out of stock

670

O RING

670E5090

1
Out of stock
