2020 Kawasaki Teryx KRX® 1000 Fuel Injection Diagram

← All diagrams

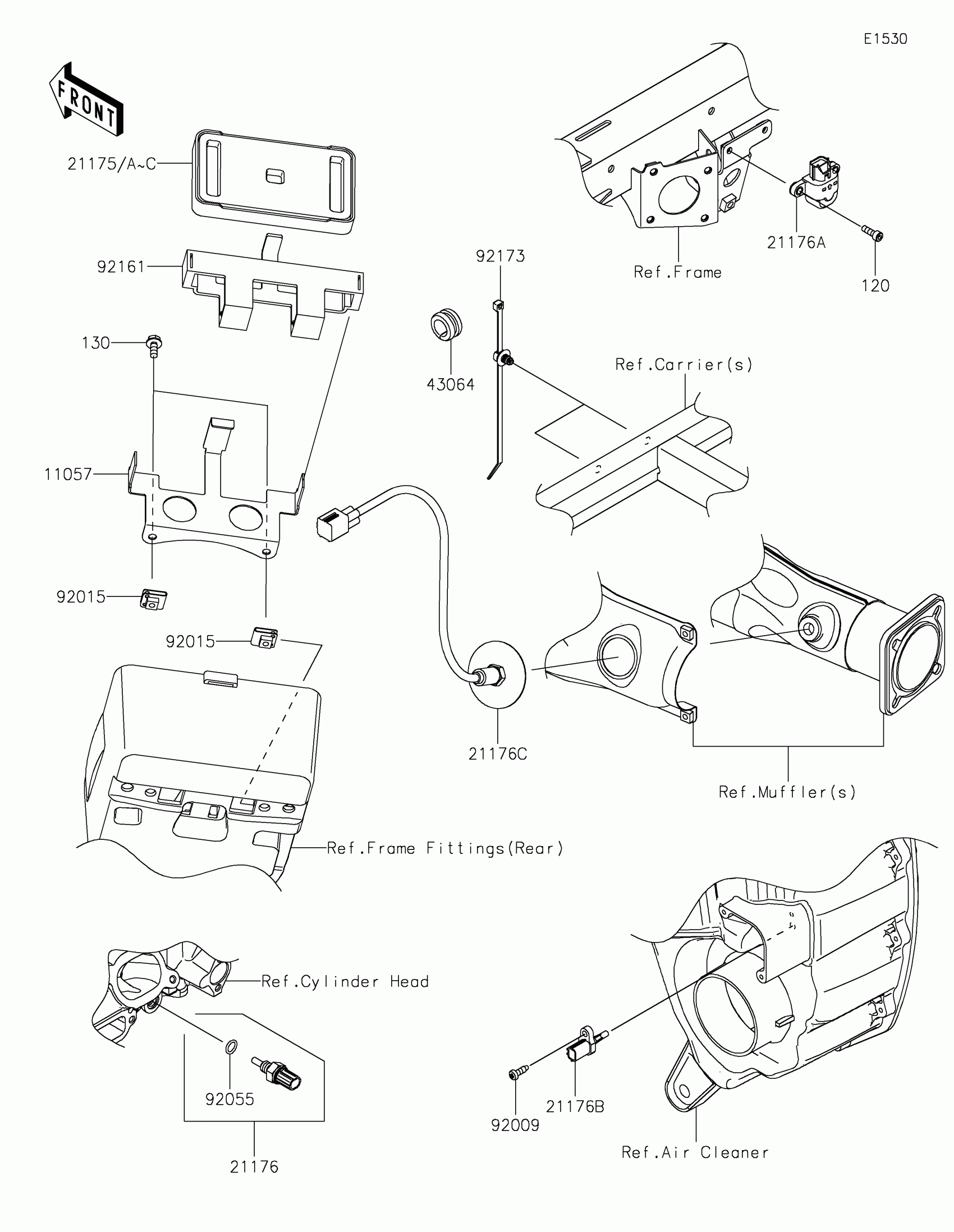

Find the part on the Fuel Injection diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ECU

11057-2230

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,OXYGEN

21176-0900

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92015

NUT,CLAMP,6MM

92015-1678

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92161

DAMPER,ECU

92161-2183

1
Out of stock

92173

CLAMP

92173-2188

1
Out of stock

120

BOLT-SOCKET,5X16

120CA0516

1
Out of stock

130

BOLT-FLANGED,6X14

130CA0614

1

$3.28

In stock
