2020 Kawasaki Teryx KRX® 1000 Gear BOX Diagram

← All diagrams

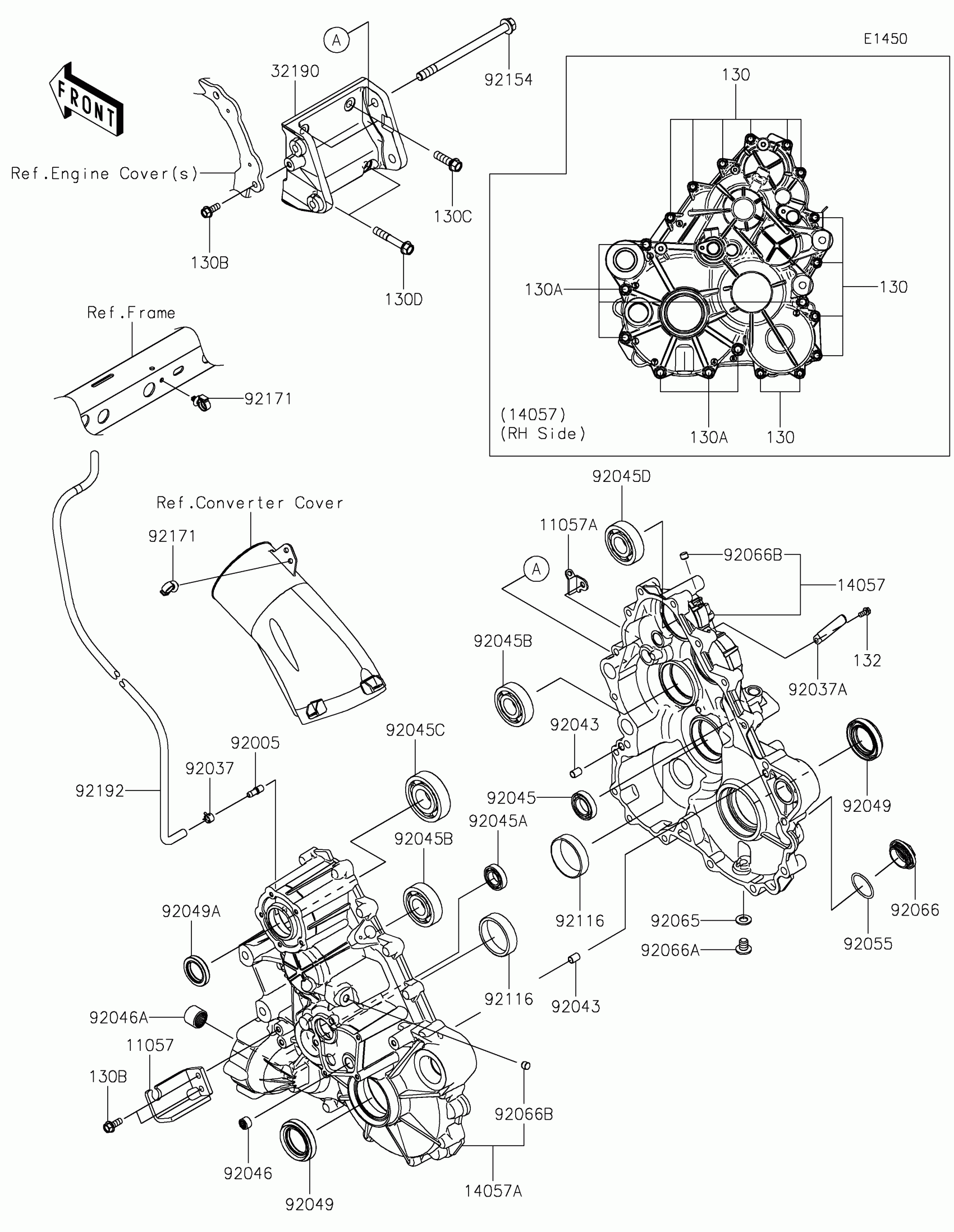

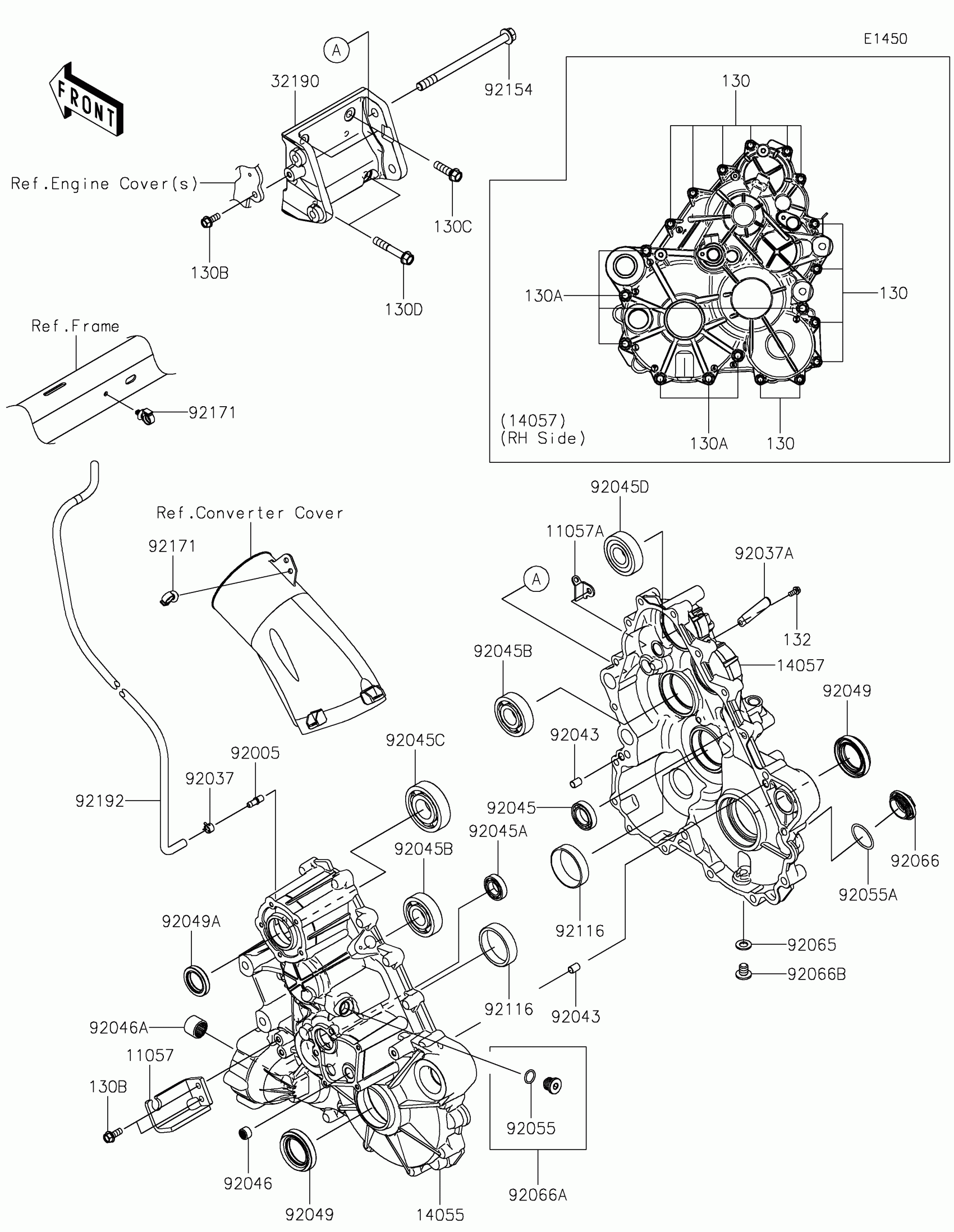

Find the part on the Gear BOX diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Gear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CABLE

11057-1898

1
Out of stock

11057A

BRACKET

11057-4094

1
Out of stock

14055

CASE-GEAR

14055-0641

1
Out of stock

14057

CASE-COMP-GEAR

14057-0020

1
Out of stock

32190

BRACKET-ENGINE

32190-0776

1
Out of stock

92005

FITTING,BREATHER

92005-1127

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92037A

CLAMP

92037-1993

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1
Out of stock

92045A

BEARING-BALL,6904

92045-0705

1
Out of stock

92045B

BEARING-BALL,6305RSH2

92045-0899

1
Out of stock

92045C

BEARING-BALL,TMB306C3

92045-0900

1
Out of stock

92045D

BEARING-BALL,6305Z

92045-0901

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92046A

BEARING-NEEDLE

92046-0039

1
Out of stock

92049

SEAL-OIL,TC9Y 40X62X10X17.2

92049-0815

1
Out of stock

92049A

SEAL-OIL,HTC 30X45X8

92049-1575

1
Out of stock

92055

RING-O,15.3X2.2

92055-0830

1
Out of stock

92055A

RING-O,35.8MM

92055-1281

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,36X7.5

92066-0744

1
Out of stock

92066A

PLUG

92066-0778

1
Out of stock

92066B

PLUG,12X15

92066-0943

1
Out of stock

92116

BEARING-ROLLER,HC30305J

92116-0011

1
Out of stock

92154

BOLT,12X175

92154-3859

1
Out of stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92192

TUBE,5.8X10.8X935

92192-1921

1
Out of stock

130

BOLT-FLANGED,8X45

130BA0845

1

$1.39

In stock

130A

BOLT-FLANGED,10X55

130BA1055

1

$1.92

In stock

130B

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock

130C

BOLT-FLANGED,10X35

130CA1035

1

$5.35

In stock

130D

BOLT-FLANGED,10X60

130CA1060

1
Out of stock

132

1

$1.12

In stock
