2020 Kawasaki Teryx KRX® 1000 Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

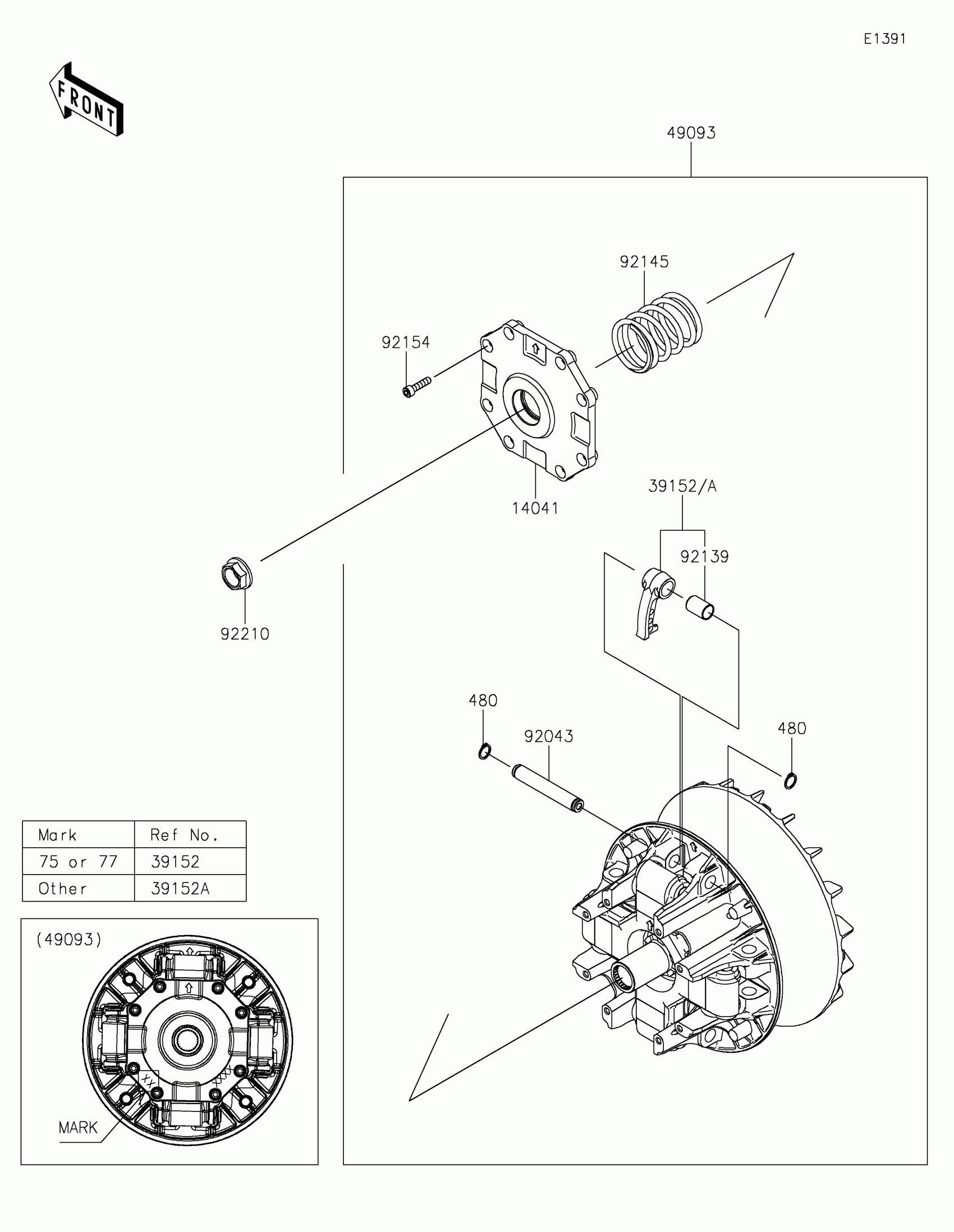

2020 Kawasaki Teryx KRX® 1000 Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14041

COVER-COMP

14041-0622

1

$70.89

In stock

39152

WEIGHT-RAMP

39152-0048

1

$103.38

In stock

39152A

WEIGHT-RAMP

39152-0097

1

$93.00

In stock

49093

1

$1,151.87

In stock

92043

PIN

92043-0975

1

$19.62

In stock

92139

BUSHING

92139-0933

1

$5.93

In stock

92145

SPRING

92145-1855

1

$20.06

In stock

92154

BOLT-SOCKET,6X25

92154-3960

1

$1.10

In stock

92200

WASHER,20.2X31X1.4

92200-2248

1

$5.54

In stock

92210

NUT,20MM

92210-1753

1

$13.83

In stock

480

1

$3.12

In stock
← Clutch Drive Shaft-Front →
