2020 Kawasaki Teryx KRX® 1000 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

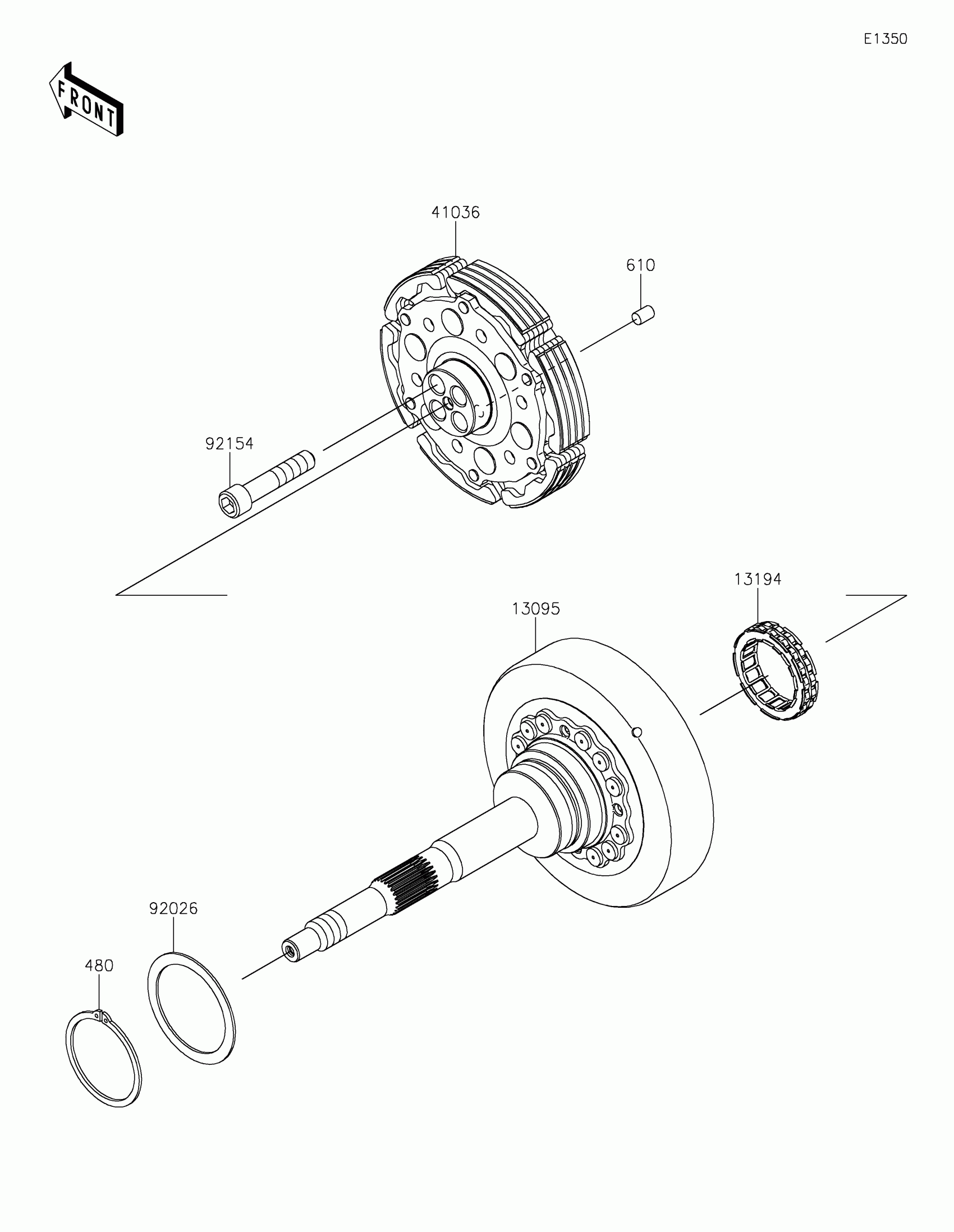

2020 Kawasaki Teryx KRX® 1000 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13095

HOUSING-COMP-CLUTCH

13095-0596

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0022

1
Out of stock

41036

HUB-ASSY

41036-0853

1
Out of stock

92026

SPACER

92026-0710

1
Out of stock

92154

BOLT,12X60

92154-3926

1
Out of stock

480

CIRCLIP-TYPE-C,60MM

480J6000

1
Out of stock

610

PIN-DOWEL,8X12

610A0812

1
Out of stock
