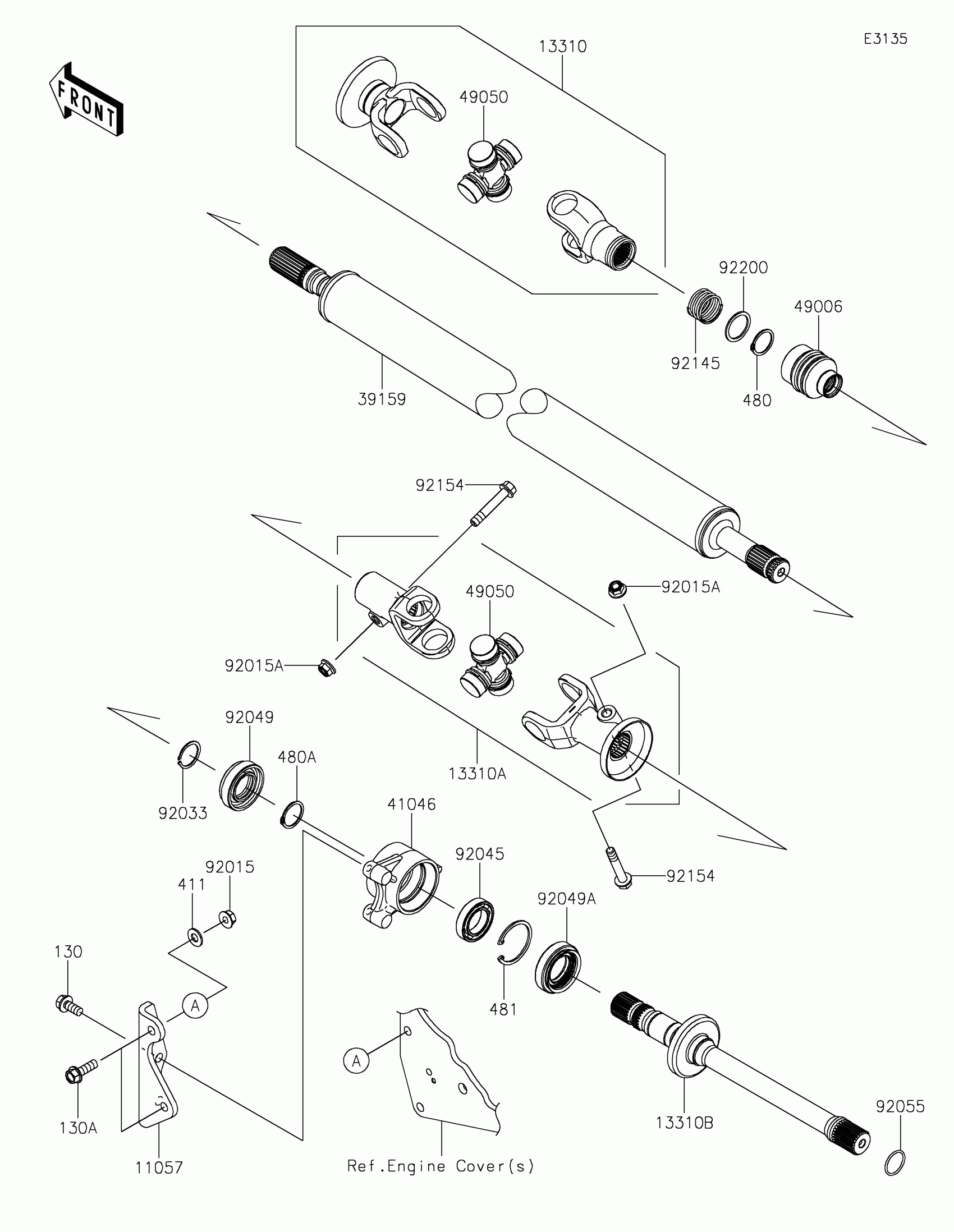

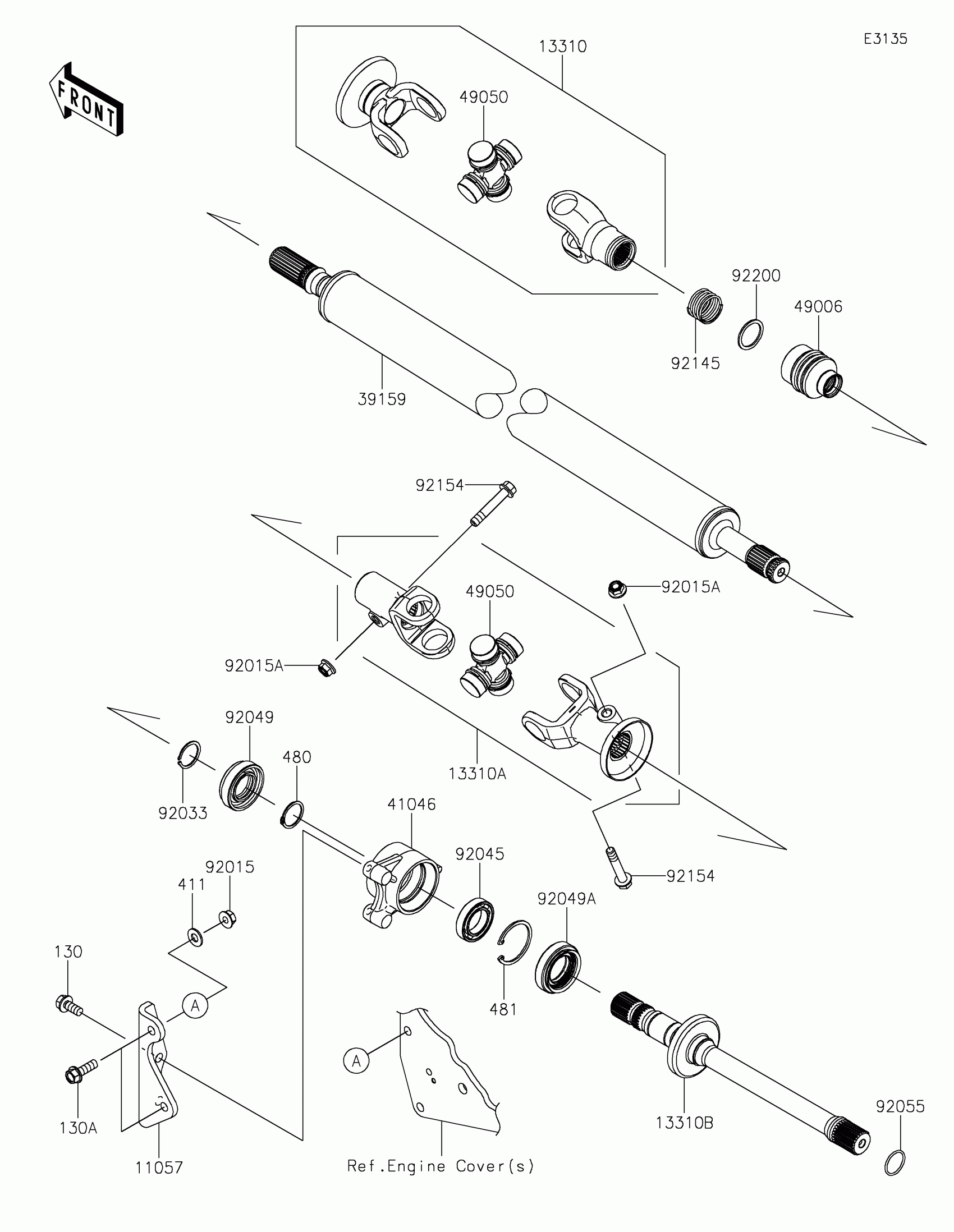

Kawasaki TERYX KRX® 1000 Drive Shaft-Propeller Diagram

Description

Price

11057

BRACKET,BEARING-COMP

11057-2804

$34.90

13310

SHAFT-ASSY,FRONT GEAR SIDE

13310-0031

$142.45

13310A

SHAFT-ASSY,REAR GEAR SIDE

13310-0045

$142.45

13310B

SHAFT-ASSY

13310-0046

$69.36

39159

SHAFT-DRIVE

39159-0576

$268.94

41046

HOUSING-BEARING

41046-0037

$111.12

49006

BOOT,GEAR ASSY SIDE

49006-0108

$4.90

49050

SPIDER

49050-0034

$104.96

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,8MM

92015-1432

$4.93

92033

RING-SNAP,25MM

92033-1172

$3.71

92045

BEARING-BALL,#6905

92045-036

$22.57

92049

SEAL-OIL,TC9Y 25X48X10X17.2

92049-0817

$9.51

92049A

SEAL-OIL,TC9Y 28X50X10X17.2

92049-0818

$9.51

92055

RING-O,22.1X1.9

92055-1617

$1.89

92145

SPRING

92145-1838

$3.88

92154

BOLT,FLANGED,8X46

92154-1365

$2.05

92200

WASHER,25X31X1.5

92200-0600

$3.29

130

BOLT-FLANGED,8X18

130BA0818

$1.81

130A

BOLT-FLANGED,8X25

130BA0825

$2.01

411

WASHER-PLAIN,8MM

411AA0800

Unavailable

480

CIRCLIP-TYPE-C,24MM

480J2400

$4.65

480A

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

481

CIRCLIP-TYPE-C,42MM

481J4200

$4.64
