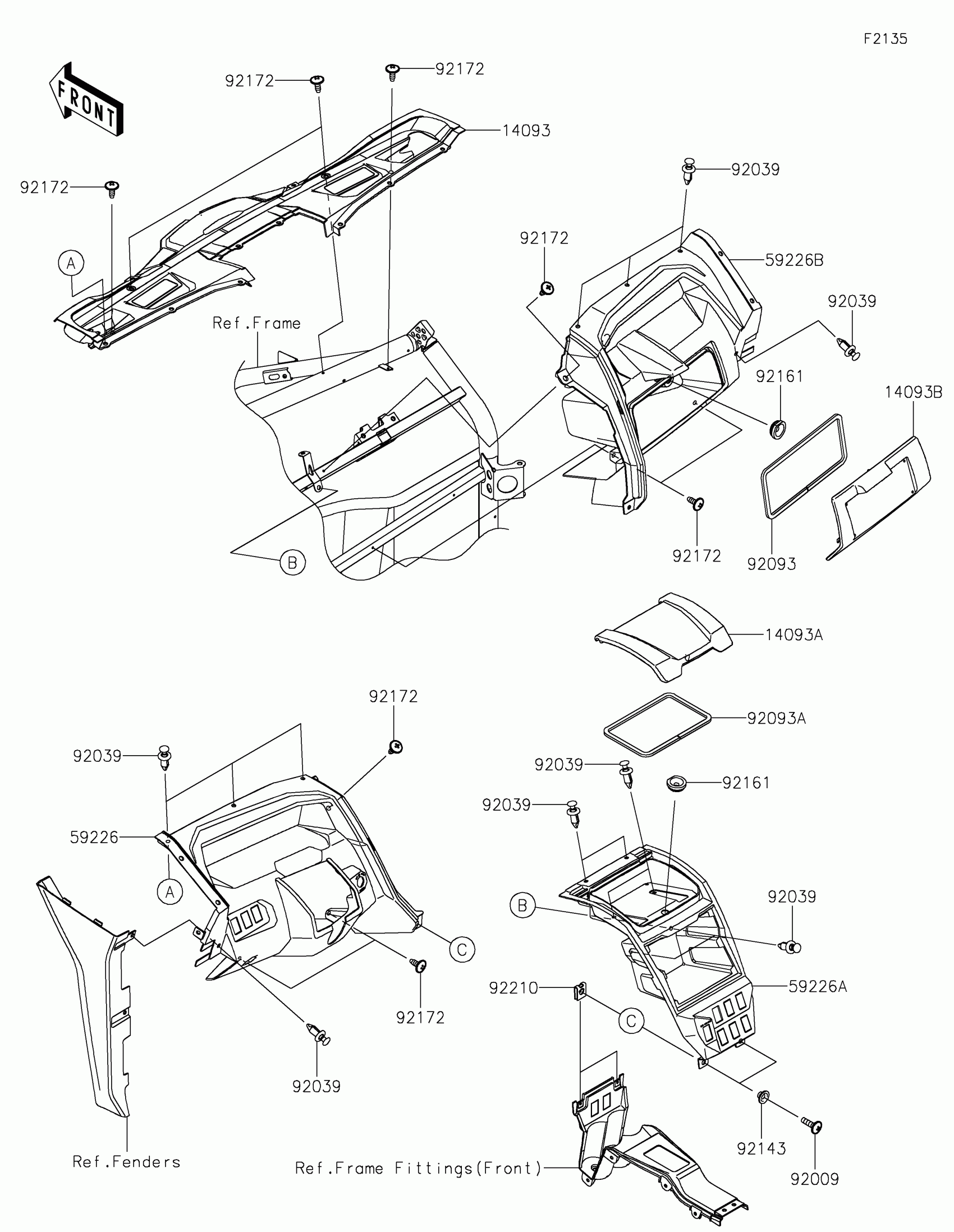

Kawasaki TERYX KRX® 1000 Front Box Diagram

Description

Price

14093

COVER

14093-0829

$152.18

14093A

COVER,STORAGE,UPP

14093-0831

$16.10

14093B

COVER,STORAGE,LWR

14093-0832

$50.31

59226

PANEL-CONTROL,LH

59226-0745

$132.69

59226A

PANEL-CONTROL,CNT

59226-0746

Unavailable

59226B

PANEL-CONTROL,RH

59226-0747

$176.31

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92039

RIVET

92039-0776

$0.80

92093

SEAL,10X6X825

92093-0729

$2.63

92093A

SEAL,10X6X725

92093-0730

$2.58

92143

COLLAR

92143-1057

$3.81

92161

DAMPER,7.8X30X11

92161-1953

$0.93

92172

SCREW,6X16

92172-0711

$2.11

92210

NUT

92210-1125

$3.63
