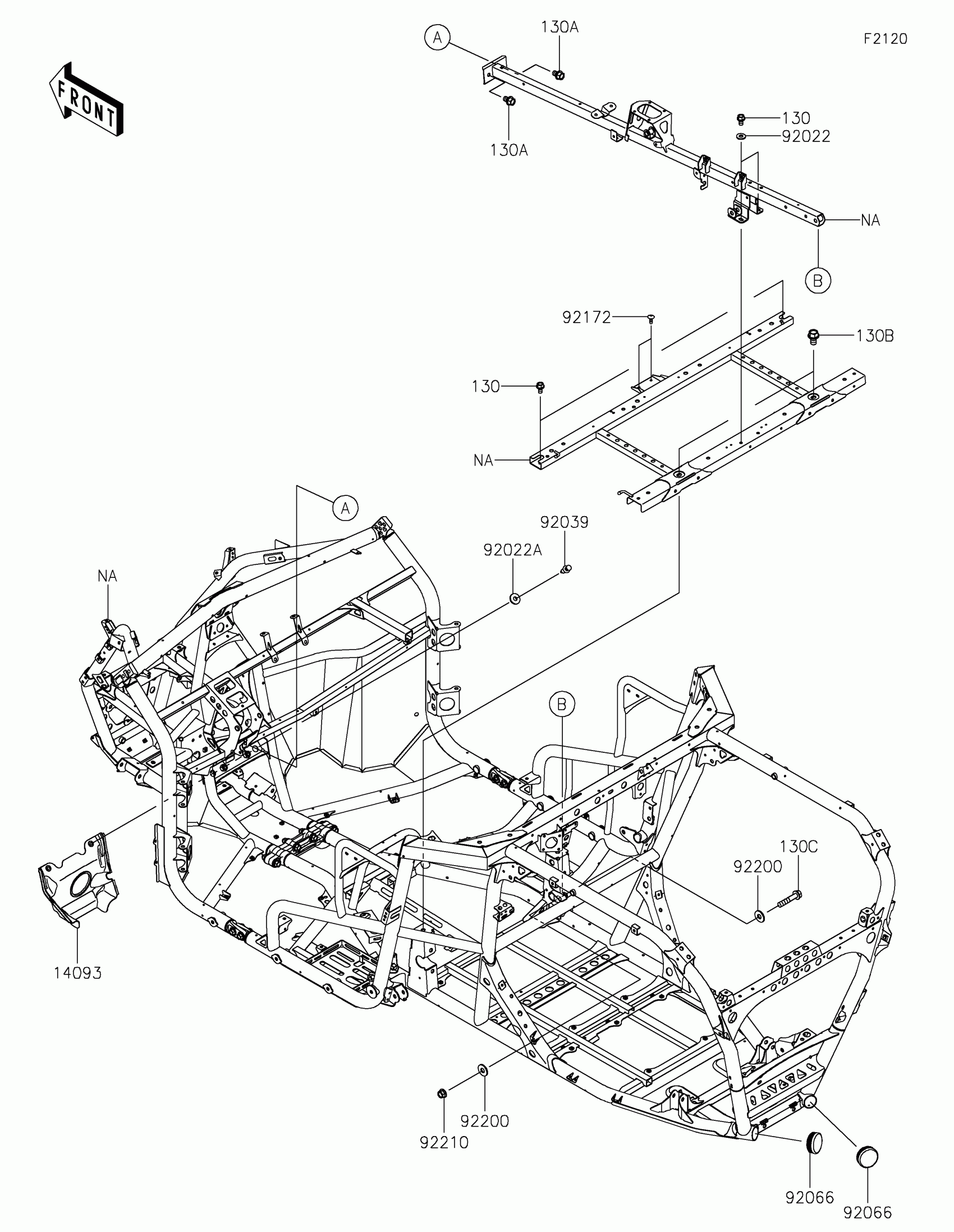

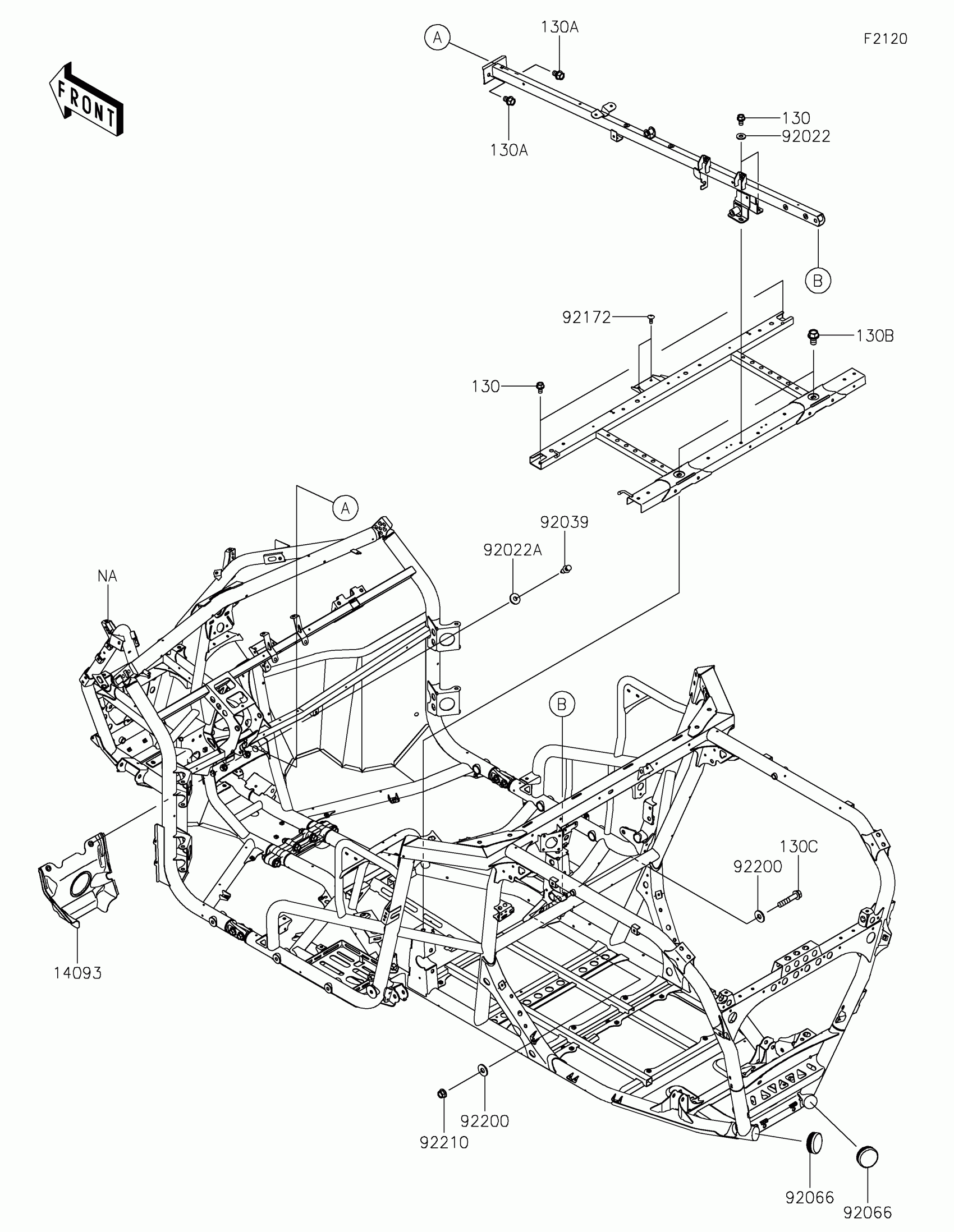

Kawasaki TERYX KRX® 1000 Frame Diagram

Description

Price

14093

COVER,PROPELLER SHAFT

14093-1009

$9.24

92022

WASHER,8.2X19X2

92022-1533

$4.85

92022A

WASHER,8.4X23X2.5

92022-3744

$3.19

92039

RIVET

92039-0776

$0.80

92066

PLUG,RR END

92066-0926

$0.98

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92200

WASHER,11X26X2.6

92200-0352

$2.34

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130

BOLT-FLANGED,8X14

130BA0814

$1.54

130A

BOLT-FLANGED,10X14

130BA1014

$4.24

130B

BOLT-FLANGED,12X20

130BA1220

$2.84

130C

BOLT-FLANGED,10X50

130CA1050

$2.93
