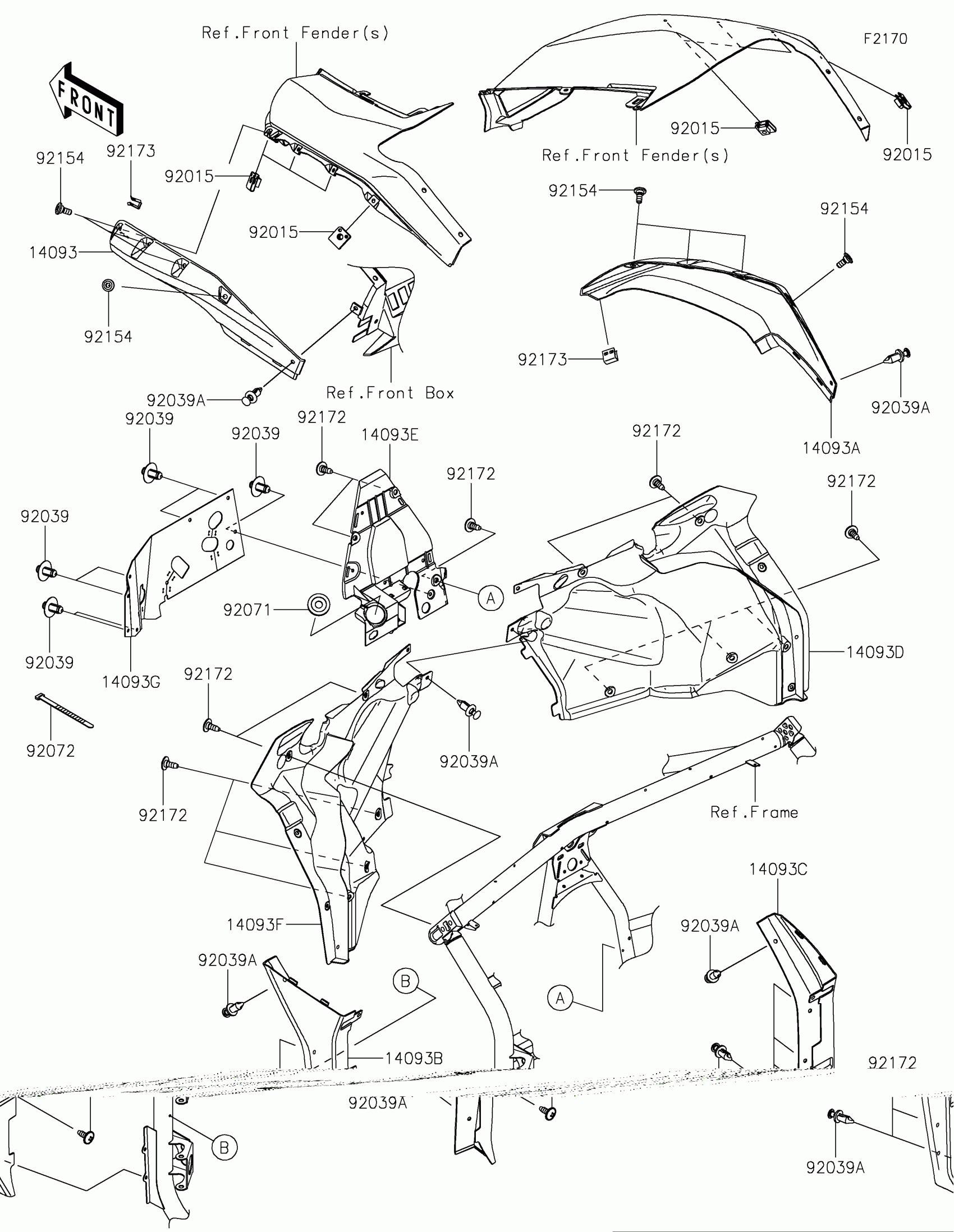

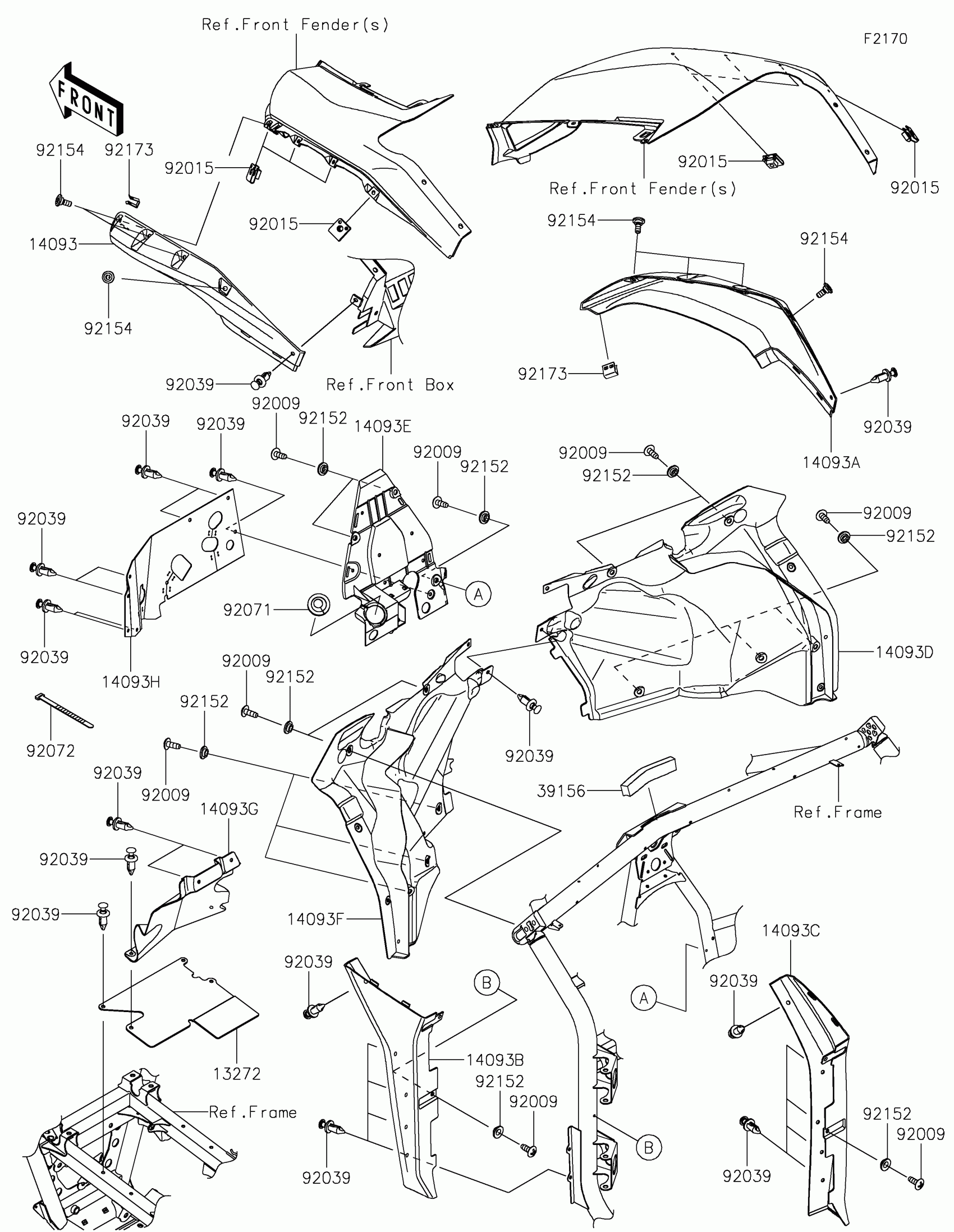

Kawasaki TERYX KRX® 1000 Fenders Diagram

Description

Price

14093

COVER,FLAP,UPP,LH

14093-0806

$30.41

14093A

COVER,FLAP,UPP,RH

14093-0807

$30.60

14093B

COVER,FLAP,LWR,LH

14093-0808

$29.00

14093C

COVER,FLAP,LWR,RH

14093-0809

$29.00

14093D

COVER,FLOOR UPP,RH

14093-0822

$38.87

14093E

COVER,FLOOR UPP,CNT

14093-0823

$13.39

14093F

COVER,FLOOR UPP,LH

14093-0824

$44.28

14093G

COVER,RUBBER

14093-0844

$8.61

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-0086

$4.18

92039A

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0790

$1.08

92072

BAND,L=123

92072-030

$3.81

92154

BOLT

92154-2474

$1.20

92172

SCREW,6X16

92172-0711

$2.11

92173

CLAMP

92173-2249

$2.69
