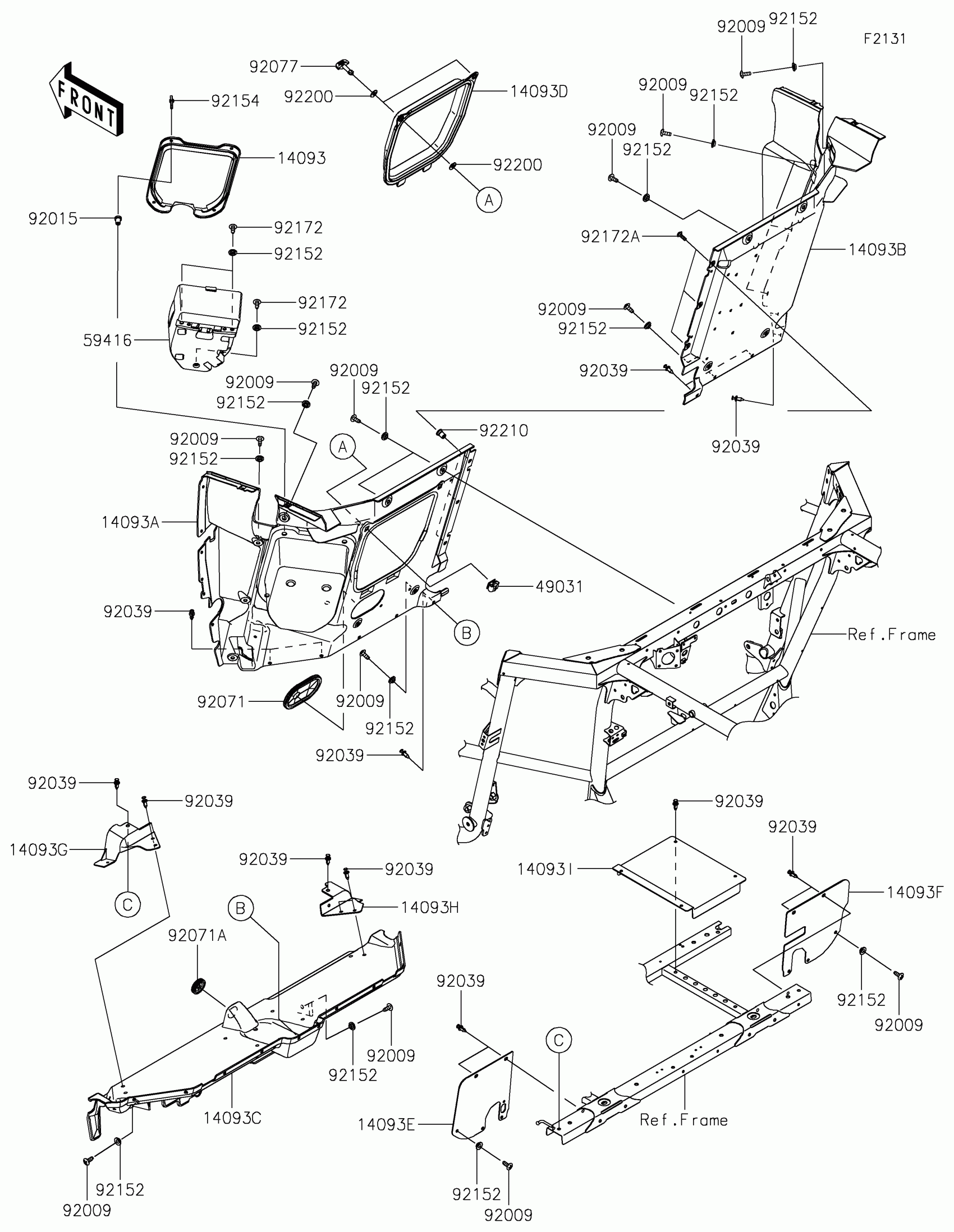

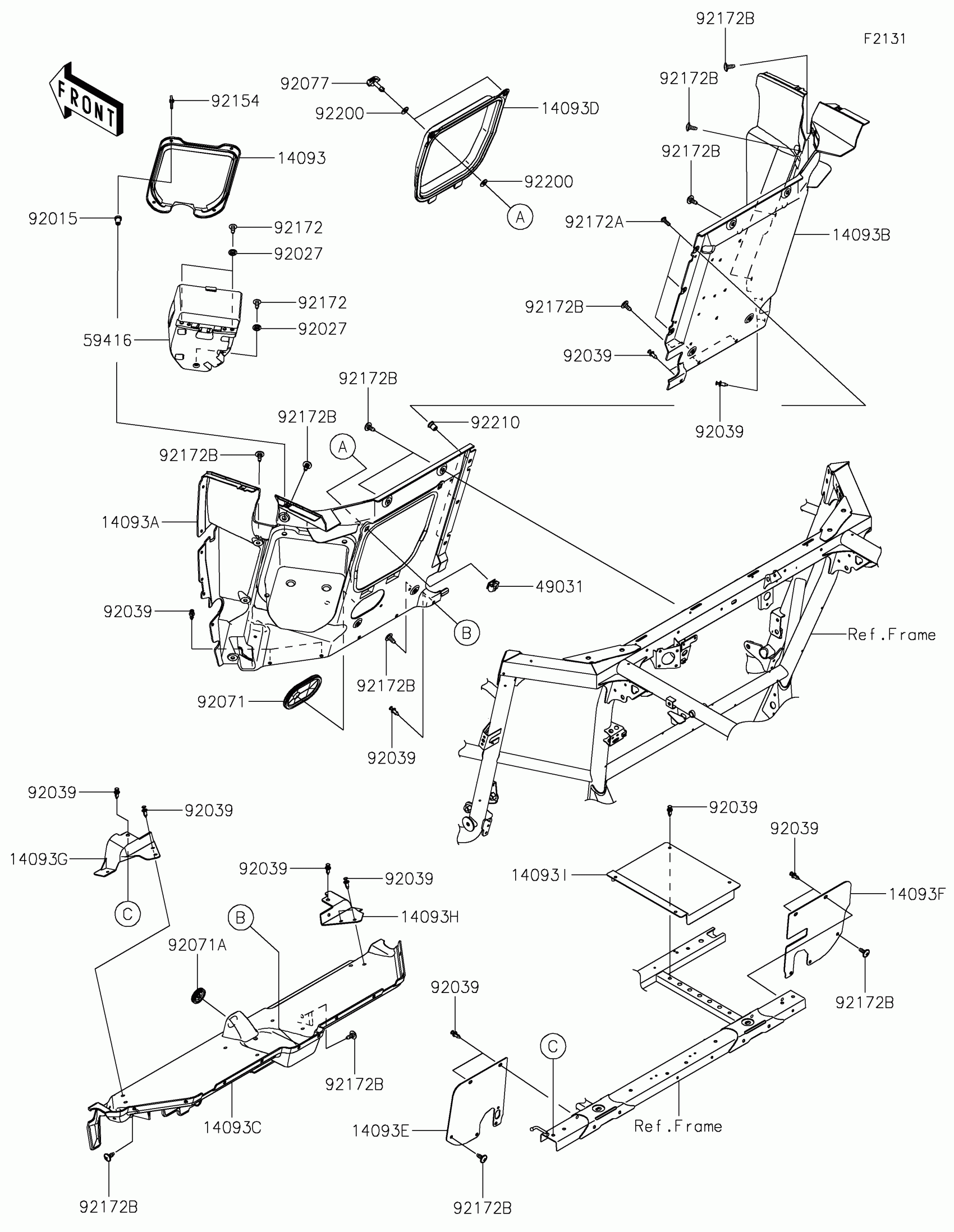

Kawasaki TERYX KRX® 1000 Frame Fittings(Rear) Diagram

Description

Price

14093

COVER,ELECTRIC-CASE

14093-0821

$10.31

14093A

COVER,SEAT-BACK-PANEL,LH

14093-0840

$110.37

14093B

COVER,SEAT-BACK-PANEL,RH

14093-0841

$126.26

14093C

COVER,SEAT-BACK-PANEL,LWR

14093-0842

$185.14

14093D

COVER,A/C-BOX

14093-0843

$12.83

14093E

COVER,BATTERY

14093-0853

$5.34

14093F

COVER,FUEL-TANK

14093-0854

$5.46

14093G

COVER,SEAT-BACK,LH

14093-0992

$3.31

14093H

COVER,SEAT-BACK,RH

14093-0993

$3.36

14093I

COVER,SEAT,LWR

14093-1006

$8.54

49031

LATCH,A/C-BOX

49031-0022

$1.30

59416

CASE-ELECTRIC

59416-0028

$13.29

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92027

COLLAR,L=4.6

92027-1168

$3.81

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0789

$3.08

92071A

GROMMET

92071-0791

$1.34

92077

KNOB

92077-0030

$2.11

92154

BOLT,WING,6X25

92154-4116

$1.66

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,5MM

92172-0292

$2.34

92172B

SCREW,6X16

92172-0711

$2.11

92200

WASHER

92200-0503

$1.81

92210

NUT,WELL,5MM

92210-0370

$4.27
