2008 Kawasaki Teryx® 750 4x4 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

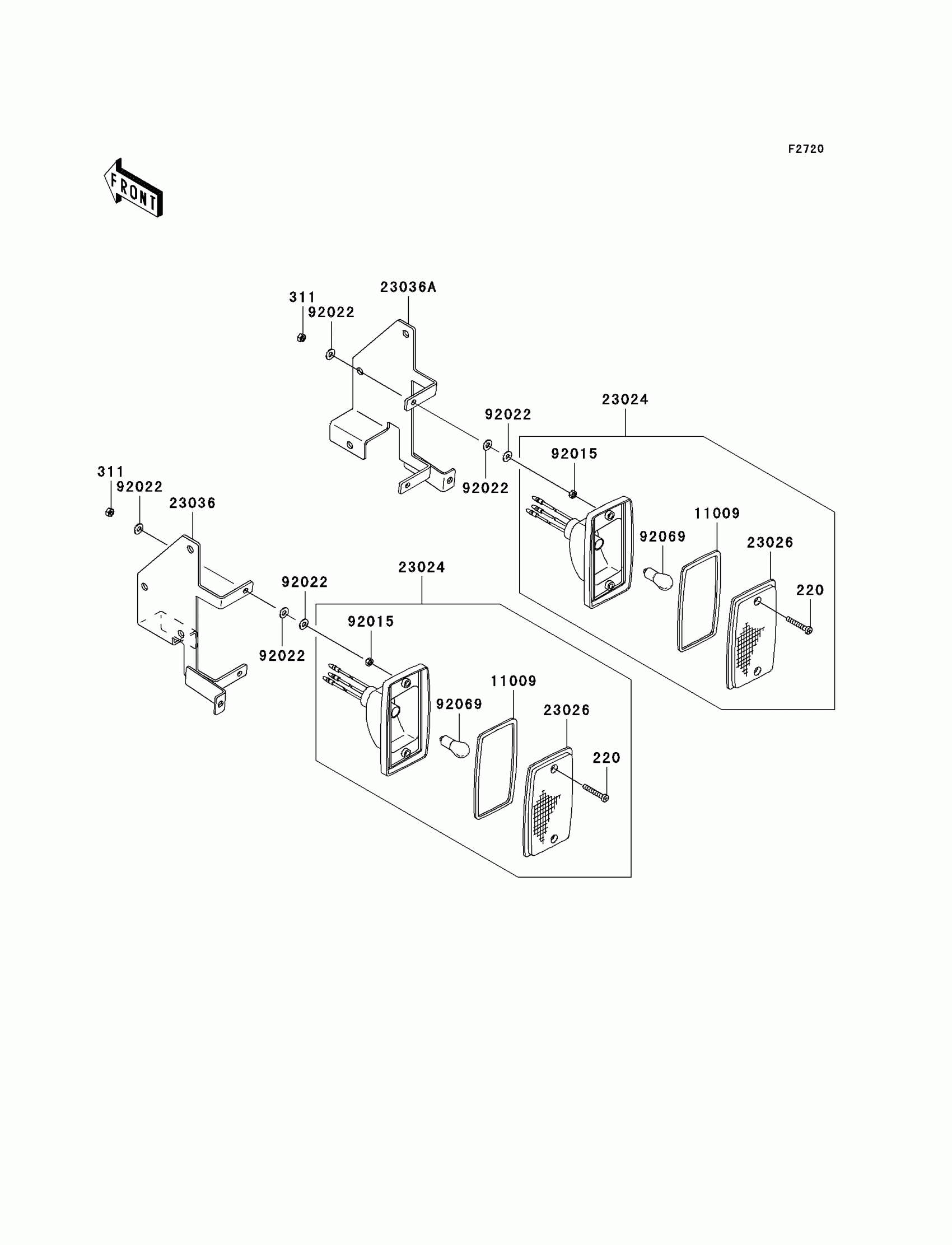

2008 Kawasaki Teryx® 750 4x4 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$1.00

In stock

311

NUT-HEX,4MM

311AA0400

1

$0.58

In stock

11009

GASKET,TAIL LAMP

11009-4004

1

$7.49

In stock

23024

LAMP-ASSY-TAIL

23024-1139

1

$124.41

In stock

23026

LENS,TAIL LAMP

23026-1239

1

$16.56

In stock

23036

1

$17.34

In stock

23036A

1

$17.34

In stock

92015

NUT,4MM

92015-1550

1

$2.68

In stock

92022

WASHER

92022-563

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock
