2008 Kawasaki Teryx® 750 4x4 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

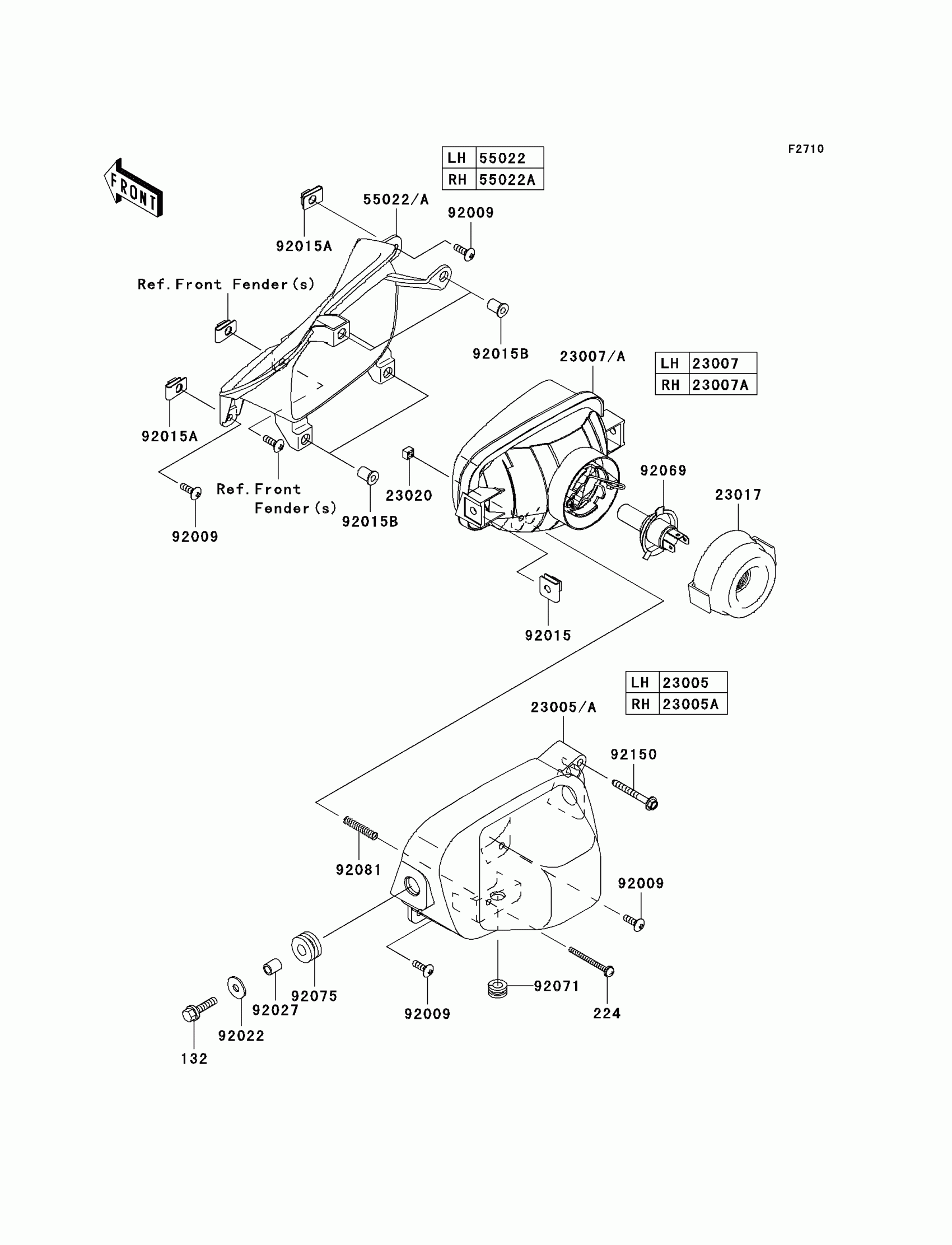

2008 Kawasaki Teryx® 750 4x4 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.29

In stock

224

SCREW-PAN-WP-CROS,4X45

224AA0445

1
Out of stock

23005

BODY-COMP-HEAD LAMP,LH

23005-1180

1
Out of stock

23005A

BODY-COMP-HEAD LAMP,RH

23005-1181

1
Out of stock

23007

LENS-COMP,HEAD LAMP,LH

23007-0113

1
Out of stock

23007A

LENS-COMP,HEAD LAMP,RH

23007-0114

1
Out of stock

23017

SOCKET,HEAD LAMP

23017-0005

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

55022

COVER-HEAD LAMP,LH

55022-0035

1
Out of stock

55022A

COVER-HEAD LAMP,RH

55022-0036

1
Out of stock

92009

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92015A

NUT,5MM

92015-1710

1
Out of stock

92015B

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 35/35W

92069-0026

1
Out of stock

92071

GROMMET

92071-1128

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92150

BOLT,ADJUST,5X45

92150-1590

1
Out of stock
