2008 Kawasaki Teryx® 750 4x4 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

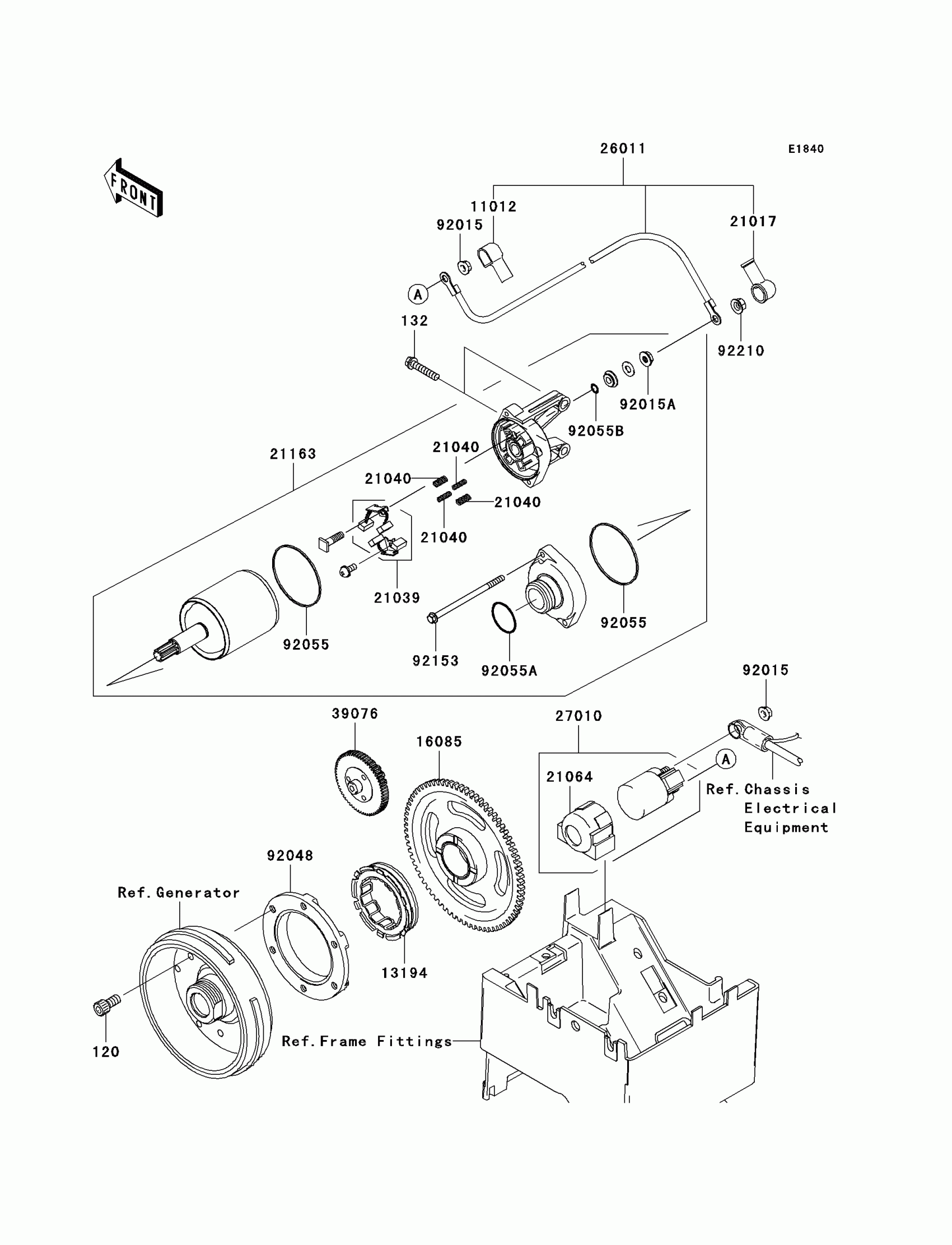

2008 Kawasaki Teryx® 750 4x4 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X16

120CA0816

1

$3.53

In stock

132

1

$2.92

In stock

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13194

CLUTCH-ONEWAY

13194-1094

1

$123.96

In stock

16085

GEAR,STARTER

16085-1238

1

$122.94

In stock

21017

1

$7.48

In stock

21039

BRUSH,CARBON

21039-0004

1

$120.17

In stock

21040

SPRING-BRUSH

21040-0003

1

$9.47

In stock

21064

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

21163

STARTER-ELECTRIC

21163-0037

1

$763.64

In stock

26011

1

$40.39

In stock

27010

SWITCH,MAGNETIC

27010-1098

1
Out of stock

39076

LIMITER,STARTER

39076-0005

1

$231.23

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92015A

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92048

RACE,ONE WAY CLUTCH

92048-0002

1
Out of stock

92055

RING-O

92055-0136

1

$6.16

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92055B

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92153

BOLT

92153-1850

1

$11.42

In stock

92210

NUT,6MM

92210-0188

1
Out of stock
