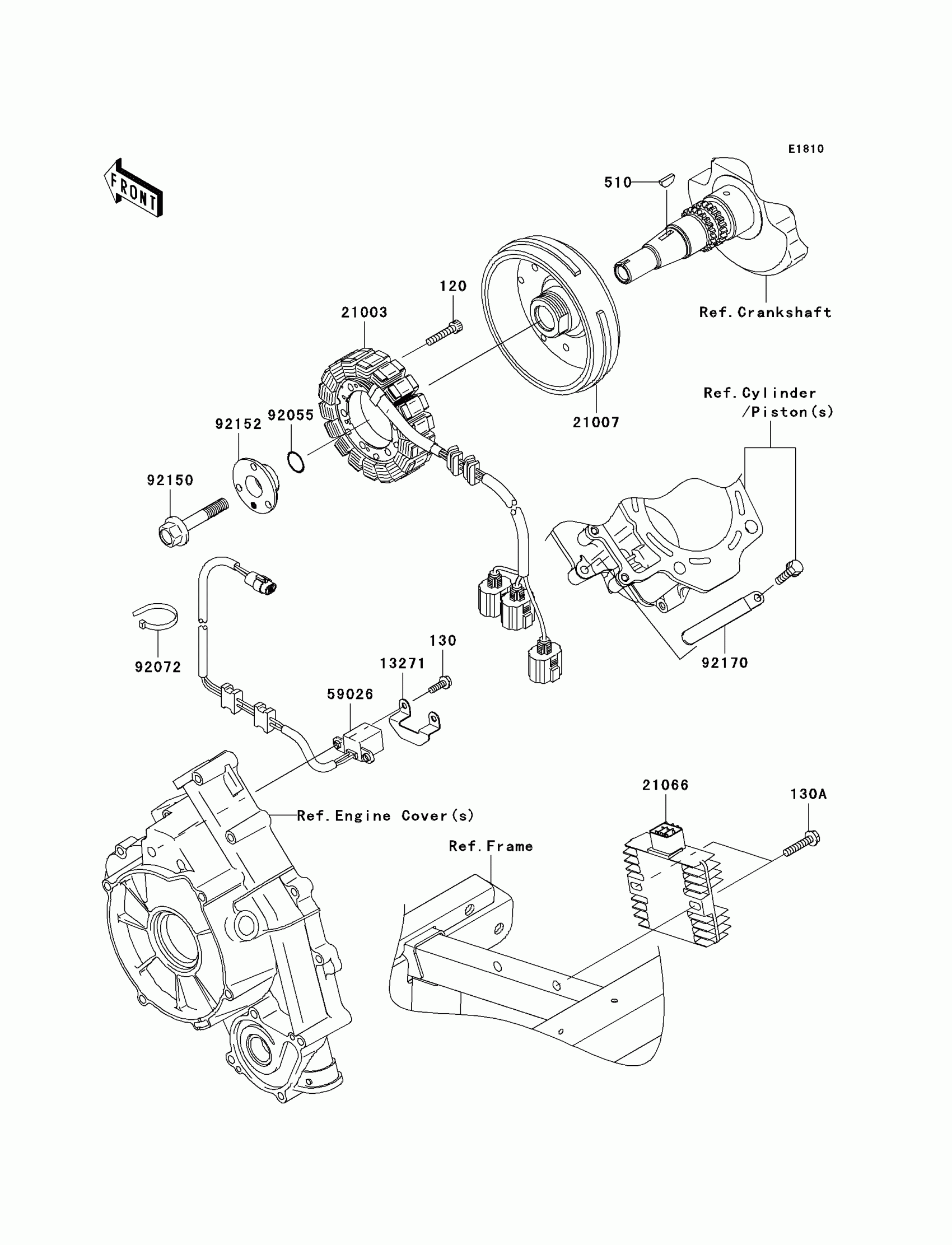

Kawasaki Teryx® 750 4x4 Generator Diagram

Description

Price

120

BOLT-SOCKET,6X28

120CA0628

$4.42

130

BOLT-FLANGED,5X16

130BA0516

$0.73

130A

BOLT-FLANGED,6X30

130BB0630

$3.38

510

KEY-WOODRUFF

510A4200

$2.04

13271

PLATE

13271-1369

$2.37

21003

STATOR

21003-0077

$616.75

21007

ROTOR

21007-1367

$658.25

21066

REGULATOR-VOLTAGE

21066-0030

$203.63

59026

COIL-PULSING

59026-1159

$98.31

92055

RING-O,19.8X2.2

92055-1215

$3.29

92072

BAND,L=188

92072-1239

$1.30

92150

BOLT,12X65

92150-1987

$11.32

92152

COLLAR,20X51X17

92152-1467

$18.00

92170

CLAMP

92170-1925

$1.98
