2008 Kawasaki Teryx® 750 4x4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

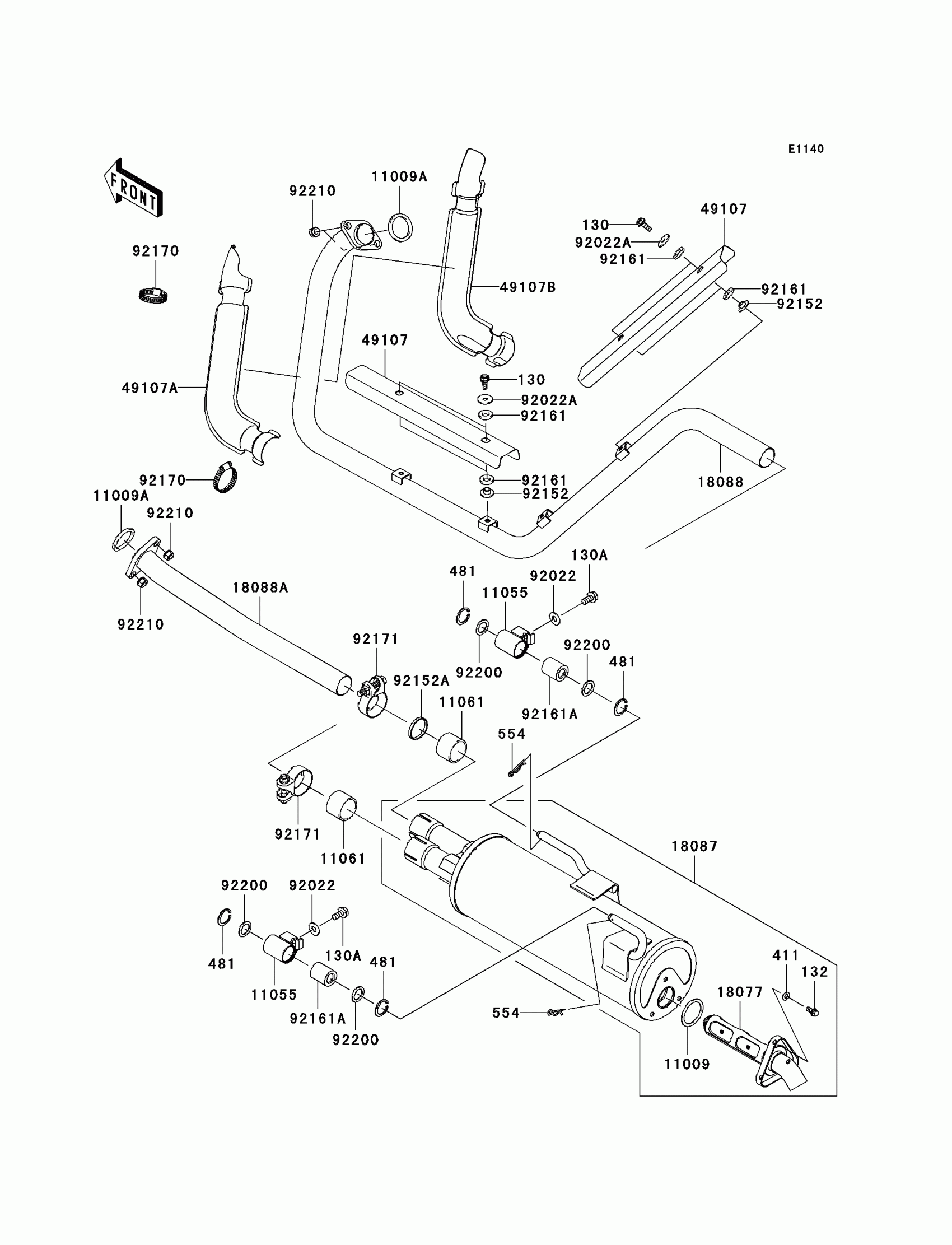

2008 Kawasaki Teryx® 750 4x4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130BD0616

1

$3.51

In stock

130A

BOLT-FLANGED,8X16

130CB0816

1

$1.83

In stock

132

1

$1.73

In stock

411

WASHER-PLAIN,6MM

411S0600

1
Out of stock

481

CIRCLIP-TYPE-C,25MM

481J2500

1
Out of stock

554

PIN-SNAP,12MM

554DA1200

1
Out of stock

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

1
Out of stock

11009A

GASKET,EXHAUST HOLDER

11009-1894

1
Out of stock

11055

BRACKET

11055-0499

1
Out of stock

11061

GASKET,MUFFLER CONNECTING

11061-0360

1
Out of stock

18077

ARRESTER-SPARK

18077-0027

1
Out of stock

18087

MUFFLER

18087-0177

1
Out of stock

18088

PIPE-EXHAUST,FR

18088-0423

1
Out of stock

18088A

PIPE-EXHAUST,RR

18088-0430

1
Out of stock

49107

COVER-EXHAUST PIPE,MIDDLE

49107-0118

1
Out of stock

49107A

COVER-EXHAUST PIPE,FR,LH

49107-0130

1
Out of stock

49107B

COVER-EXHAUST PIPE,FR,RH

49107-0131

1
Out of stock

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

92022A

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92152

COLLAR

92152-0423

1
Out of stock

92152A

COLLAR

92152-0741

1
Out of stock

92161

DAMPER

92161-0319

1
Out of stock

92161A

DAMPER

92161-0594

1
Out of stock

92170

CLAMP

92170-1036

1

$8.51

In stock

92171

CLAMP

92171-1921

1
Out of stock

92200

WASHER,17X24.5X1.2

92200-0421

1
Out of stock

92210

NUT,8MM

92210-1242

1
Out of stock
