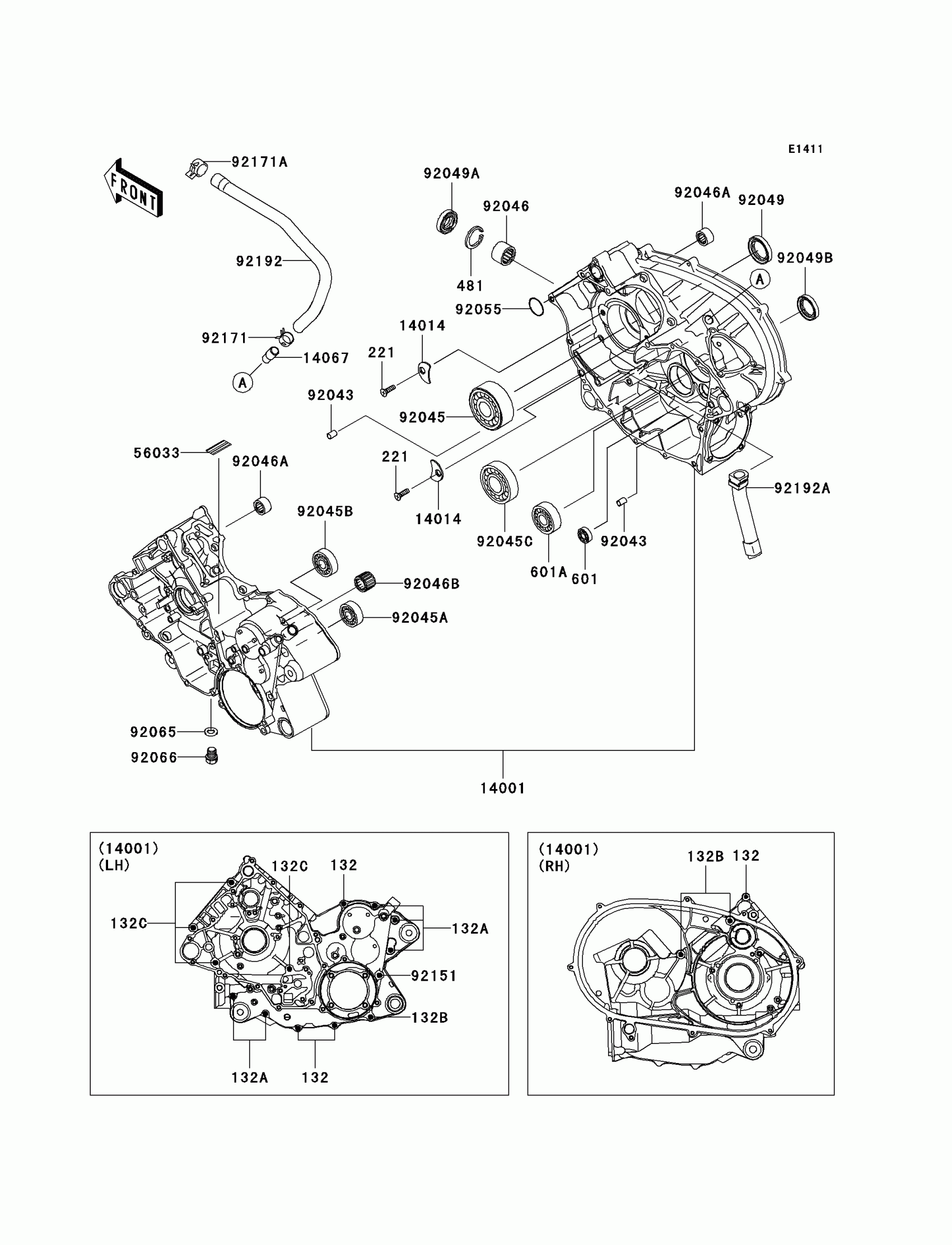

Kawasaki Teryx® 750 4x4 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X40

132BD0640

$3.99

132A

BOLT-FLANGED-SMALL,6X65

132BD0665

$3.63

132B

BOLT-FLANGED-SMALL,8X110

132BD08110

$4.59

132C

BOLT-FLANGED-SMALL,8X75

132BD0875

$2.53

221

SCREW-CSK-CROS,6X16

221AA0616

$0.54

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

601

BEARING-BALL

601A6000

$9.76

601A

BEARING-BALL,#6304

601A6304

$11.00

14001

SET-CRANKCASE

14001-0109

Unavailable

14014

PLATE-POSITION

14014-0006

$11.17

14067

FITTING,BREATHER

14067-006

$19.78

56033

LABEL-MANUAL,OIL LEVEL

56033-0078

$5.12

92043

PIN,10X14

92043-1506

$2.30

92045

BEARING-BALL,5208X2-A-ECG45

92045-0012

$130.38

92045A

BEARING-BALL,#6004

92045-0076

$15.15

92045B

BEARING-BALL,6303LUA

92045-0091

Unavailable

92045C

BEARING-BALL,6306SH2

92045-1190

$36.30

92046

BEARING-NEEDLE

92046-0022

$20.25

92046A

BEARING-NEEDLE,TA202715ZE

92046-1118

$17.82

92046B

BEARING-NEEDLE

92046-1143

Unavailable

92049

SEAL-OIL,TC 35X50X8

92049-1452

$10.44

92049A

SEAL-OIL,TCY 28X42X8

92049-1570

$13.05

92049B

SEAL-OIL,HTC 30X45X8

92049-1575

$12.45

92055

RING-O,25.7X2.4

92055-1136

$3.81

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92151

BOLT,8X110

92151-1689

$4.42

92171

CLAMP

92171-0329

$6.77

92171A

CLAMP

92171-0514

$7.88

92192

TUBE,BREATHER

92192-0400

$24.24

92192A

TUBE,OIL RETURN

92192-0703

$22.68
