2008 Kawasaki Teryx® 750 4x4 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

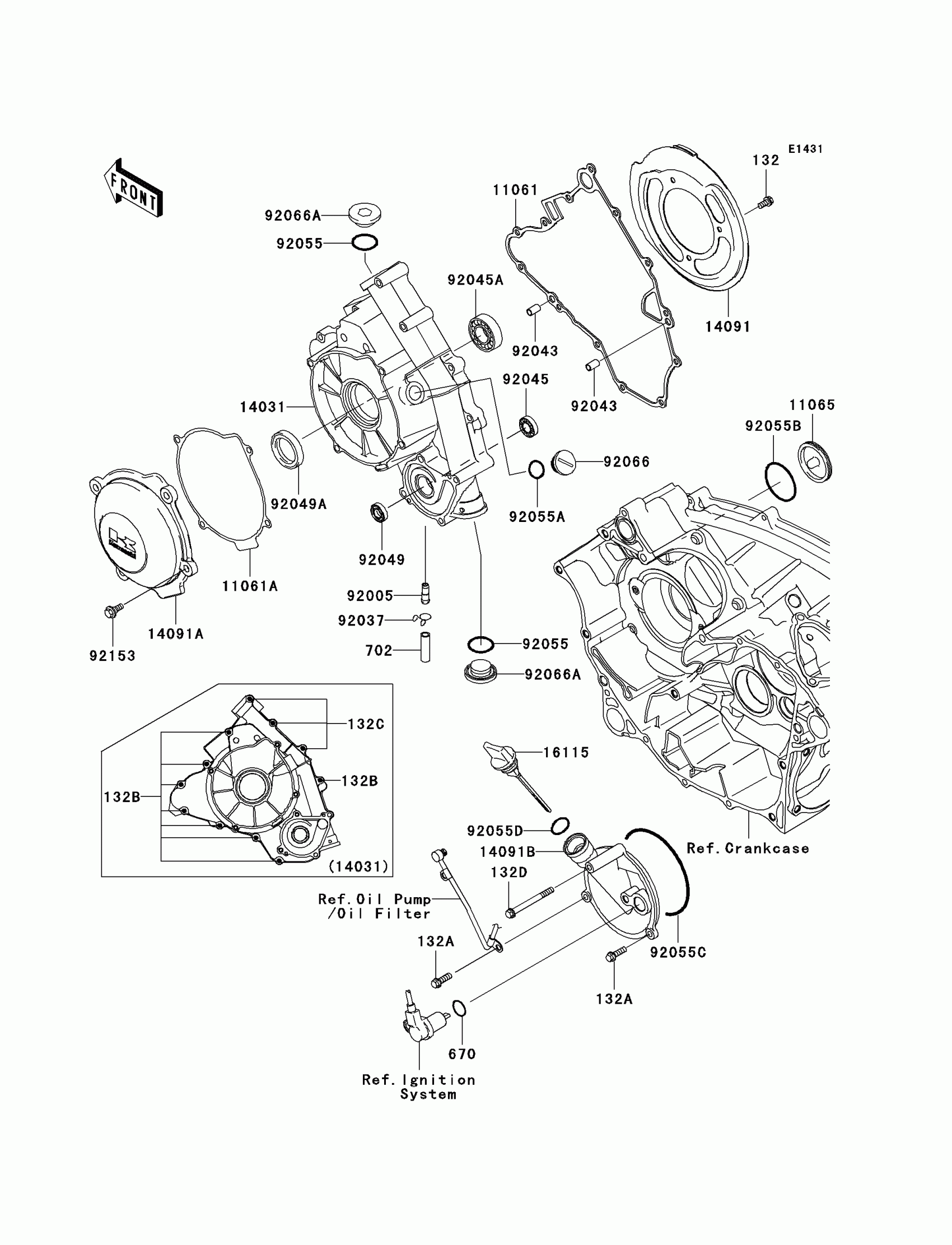

2008 Kawasaki Teryx® 750 4x4 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.73

In stock

132A

1

$3.28

In stock

132B

1

$2.92

In stock

132C

1

$4.46

In stock

132D

1

$3.78

In stock

670

O RING,18MM

670D2018

1
Out of stock

702

TUBE-RUBBER,7X10X35

702A07035

1
Out of stock

11061

GASKET

11061-1119

1
Out of stock

11061A

GASKET

11061-1153

1
Out of stock

11065

CAP

11065-1151

1
Out of stock

14031

COVER-GENERATOR

14031-0030

1
Out of stock

14091

COVER,BELT CONVERTER

14091-0309

1
Out of stock

14091A

COVER

14091-0738

1
Out of stock

14091B

COVER

14091-1365

1
Out of stock

16115

CAP-OIL FILLER

16115-1072

1
Out of stock

92005

FITTING

92005-1369

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,6901

92045-0084

1
Out of stock

92045A

BEARING-BALL,TMB004JR2CM

92045-0086

1
Out of stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92049A

SEAL-OIL,HTC 28X45X7

92049-1576

1
Out of stock

92055

RING-O,25.7X2.4

92055-1136

1
Out of stock

92055A

RING-O,20X2

92055-1146

1
Out of stock

92055B

RING-O,44.7X2.4

92055-1279

1
Out of stock

92055C

RING-O,99.5X2.0

92055-1632

1
Out of stock

92055D

RING-O,20X3

92055-2185

1
Out of stock

92066

PLUG,COVER

92066-0011

1
Out of stock

92066A

PLUG,25X8

92066-0012

1
Out of stock

92153

BOLT,FLANGED,6X16

92153-7007

1
Out of stock
