2008 Kawasaki Teryx® 750 4x4 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

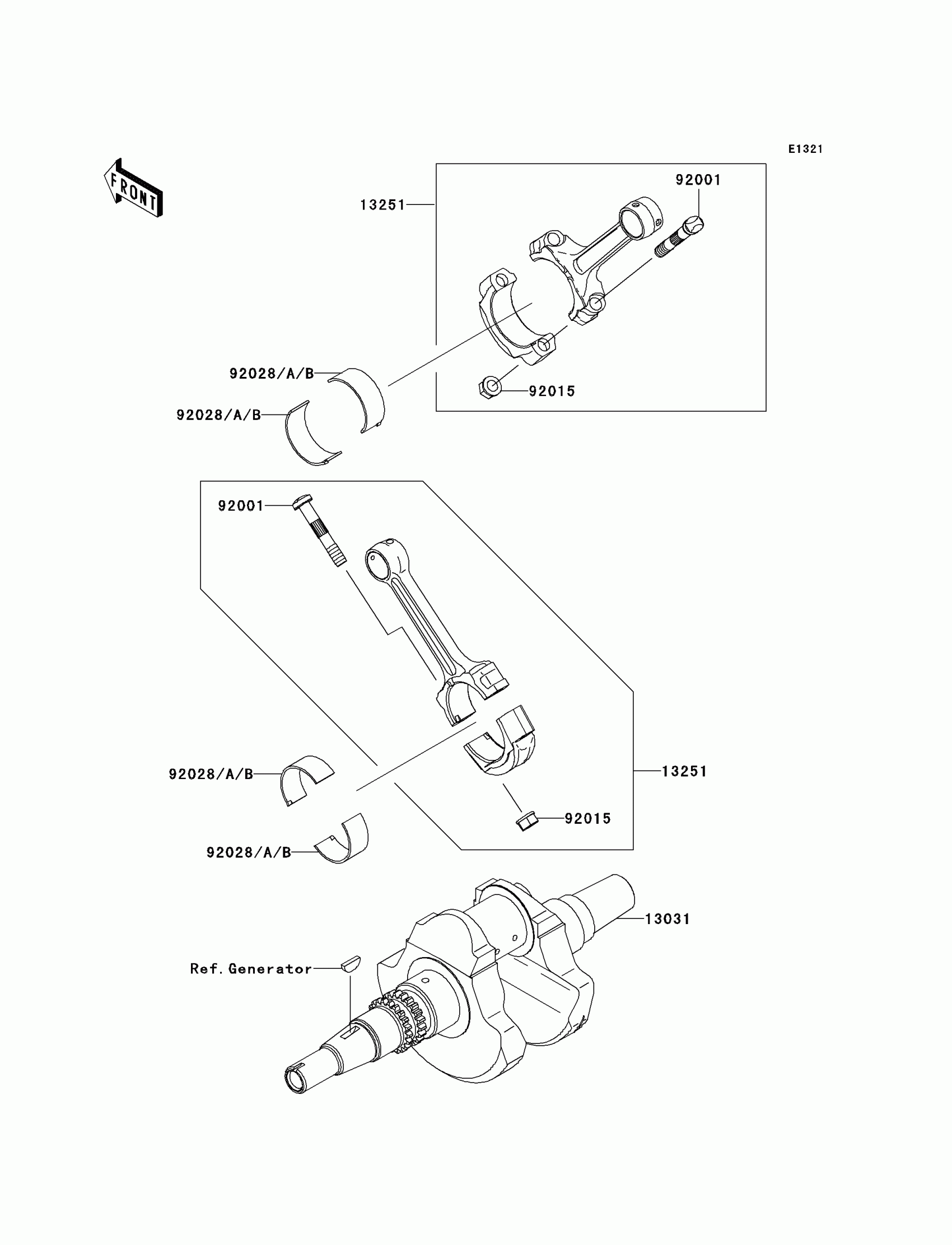

2008 Kawasaki Teryx® 750 4x4 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0079

1
Out of stock

13251

ROD-ASSY-CONNECTING

13251-1143

1
Out of stock

92001

BOLT,CONNECTING ROD

92001-1980

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

BUSHING,CONNECTING ROD,GREEN

92028-1961

—
Out of stock

92028A

BUSHING,CONNECTING ROD,YELLOW

92028-1962

1
Out of stock

92028B

BUSHING,CONNECTING ROD,BROWN

92028-1963

—
Out of stock
