1991 Kawasaki Tengai Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

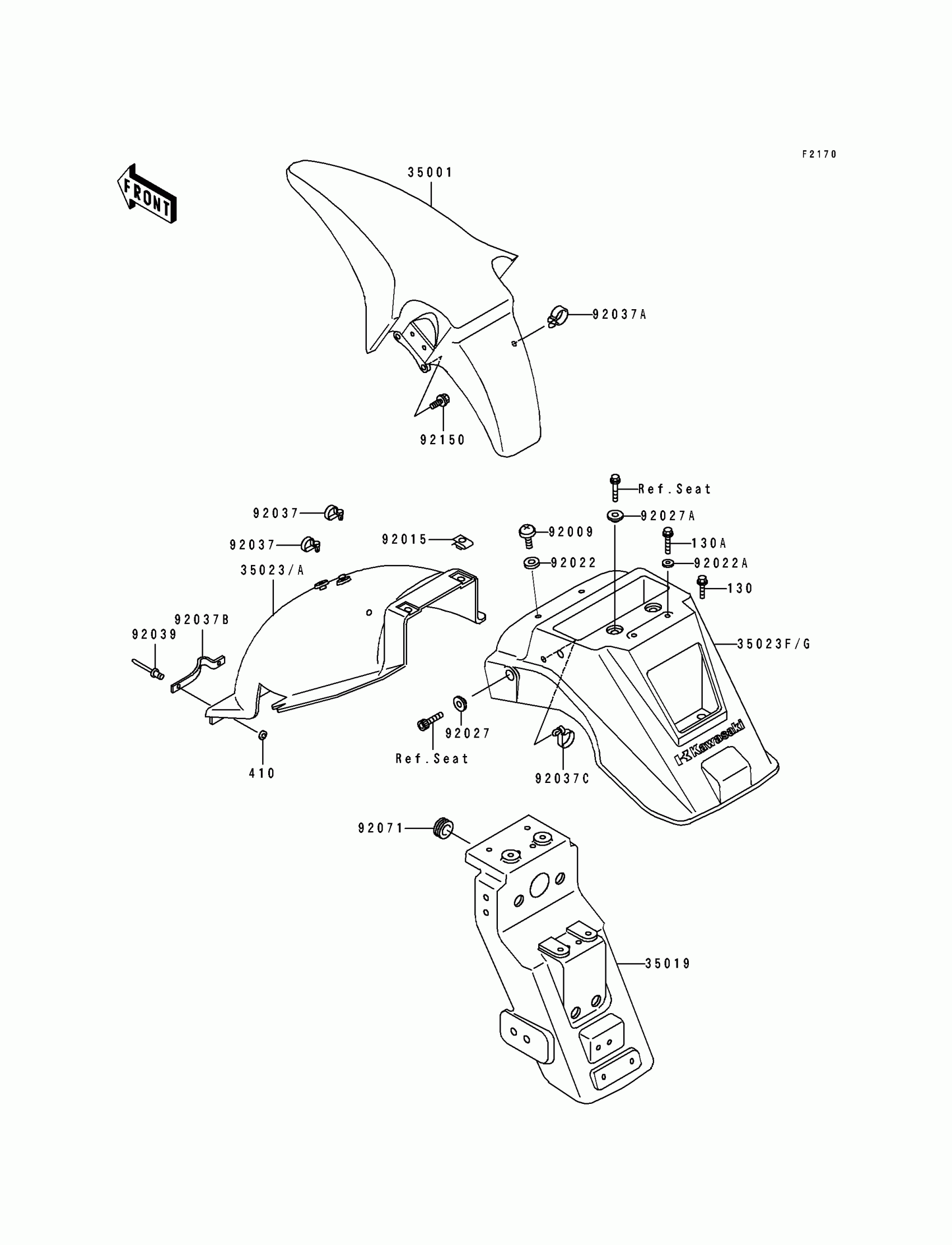

1991 Kawasaki Tengai Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35001

1

$211.96

In stock

35019

FLAP,RR

35019-1186

1

$74.87

In stock

35023

FENDER-REAR,FR

35023-1181

1

$65.24

In stock

35023G

FENDER-REAR,RR,P.A.WHITE

35023-5056-R1

1

$247.69

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92022

WASHER,6.5X16X1

92022-1143

1

$3.12

In stock

92022A

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR

92027-1745

1

$6.82

In stock

92027A

COLLAR

92027-1794

1

$3.43

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92037B

CLAMP

92037-1901

1
Out of stock

92037C

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92039

RIVET

92039-1038

1
Out of stock

92071

GROMMET

92071-1027

1
Out of stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

130A

BOLT-FLANGED,6X25

130D0625

1
Out of stock

410

WASHER PLAIN 4MM

410B0400

1
Out of stock
