1991 Kawasaki Tengai Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

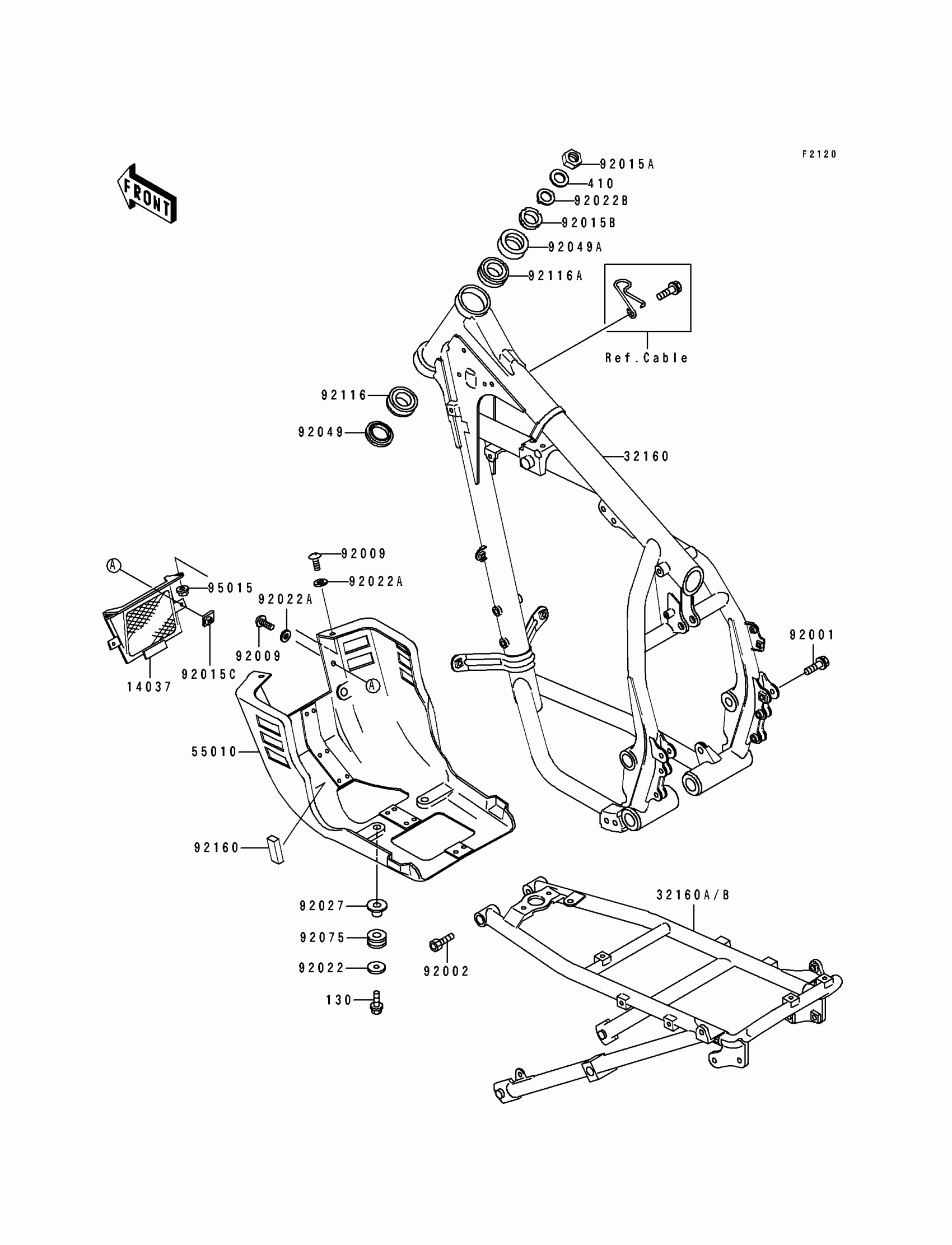

1991 Kawasaki Tengai Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037

1

$30.65

In stock

32160

FRAME-COMP,FR,GRAY

32160-1028-EC

1

$1,547.01

In stock

32160A

FRAME-COMP,RR,GRAY

32160-1029-EC

1

$1,179.07

In stock

55010

1

$623.71

In stock

92001

BOLT,FLANGED,8X28,BLACK

92001-1508

1
Out of stock

92002

BOLT,SOCKET,8X25

92002-1442

1

$4.01

In stock

92009

SCREW,5X14,BLACK

92009-1383

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1328

1
Out of stock

92015A

NUT,18MM

92015-1404

1

$21.97

In stock

92015B

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92015C

NUT,5MM

92015-1710

1

$4.93

In stock

92022

WASHER,7X24X1.6

92022-1160

1

$3.12

In stock

92022A

1

$3.12

In stock

92022B

1

$7.49

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92116

1

$33.21

In stock

92116A

1

$37.01

In stock

92160

DAMPER

92160-1183

1

$2.92

In stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

410

W-PLAIN-S

410F1800

1
Out of stock
