1977 Suzuki TC185 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1977 Suzuki TC185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

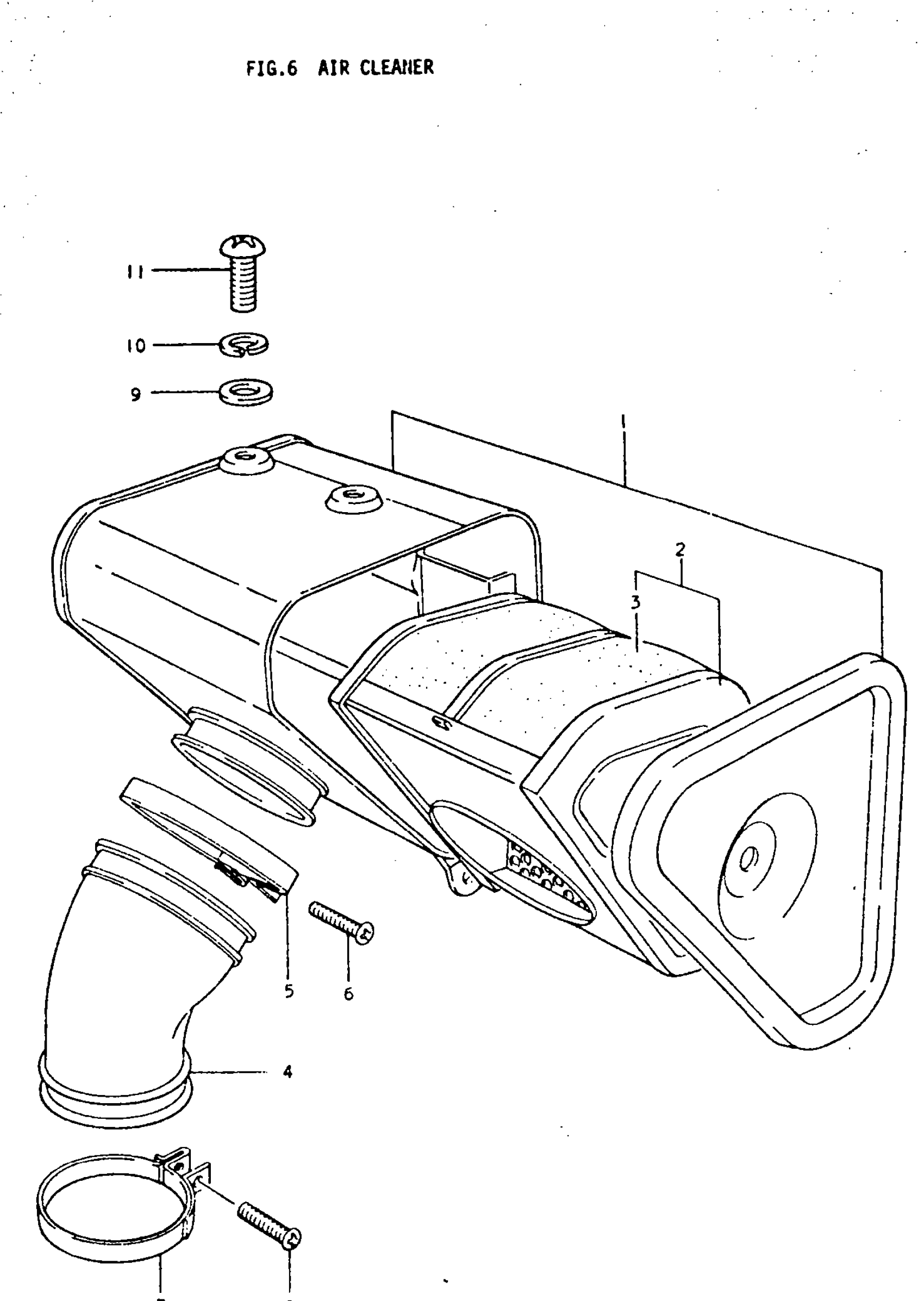

1977 Suzuki TC185 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | L This part replaces 13700-29601.

13700-29602

1
Out of stock

1

CLEANER ASSY, AIR | M,A,B; FROM 13700-29601; Includes Item(s) 2 - 3

13700-29602

1
Out of stock

2

FILTER | FROM 13780-29600

13780-29601

—
Out of stock

3

ELEMENT

13781-29610

1
Out of stock

4

HOSE, AIR INLET

13881-29002

1
Out of stock

5

CLAMP

09402-52306

1
Out of stock

6

SCREW | L,M This part replaces 02111-04208.

02112-0420A

1
Out of stock

7

CLAMP This part replaces 09402-64306.

09402-64203

1
Out of stock

8

SCREW | L,M This part replaces 02111-04208.

02112-0420A

1
Out of stock

9

WASHER | L,MA This part replaces 08322-21068.

08322-01067

3
Out of stock

11

SCREW | L,MA,B This part replaces 02112-06128.

02112-06127

3
Out of stock
