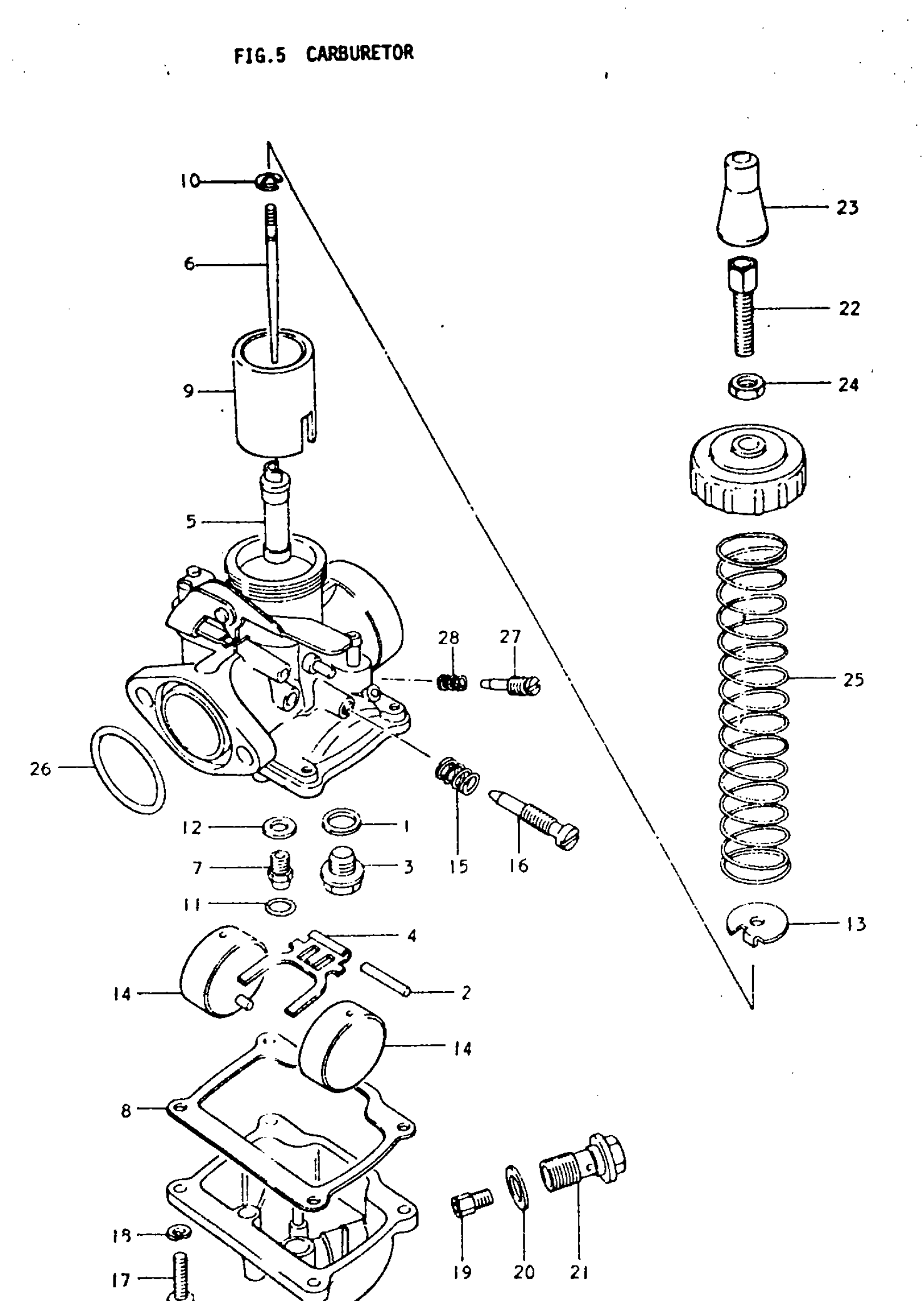

Suzuki TC185 (1977) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 4

13200-29110

Unavailable

1

GASKET, VALVE SEAT

13392-58600

$1.85

2

PIN, FLOAT | L,M,A

13254-11010

Unavailable

2

.PIN, FLOAT | B; FROM 13254-11010 This part replaces 13254-35013.

13254-01010

$3.41

3

VALVE,NEEDLE This part replaces 13370-28010.

13370-48051

$70.88

4

ARM

13253-28010

Unavailable

5

NO DESCRIPTION AVAILABLE | O-4; Includes Item(s) 6 - 28

09494-00080

Unavailable

6

NEEDLE, JET | 5DP 2.8-3

13383-29110

Unavailable

7

JET, PILOT (17.5) | #17.5 This part replaces 09492-17002.

09492-17006

$8.70

8

GASKET, FLOAT CHAMBER

13251-11010

$5.14

9

VALVE, THROTTLE

13551-29110

Unavailable

10

CLIP, NEEDLE

13394-10010

$6.15

11

O RING

13294-28010

$4.22

12

WASHER, NEEDLE JET

13382-03110

$2.80

13

PLATE

13581-28010

$8.97

14

FLOAT

13252-18620

$20.55

15

SPRING, THROTTLE STOP

13268-03110

$6.15

16

SCREW, THROTTLE STOP

13267-28110

Unavailable

17

SCREW This part replaces 02111-04168.

02112-0416A

$1.24

18

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

19

JET, MAIN | #130

09491-26003

$10.70

20

WASHER

13332-97010

Unavailable

21

UNION BOLT | L,M

13333-28010

Unavailable

21

UNION BOLT | A,B; FROM 13333-28010

13333-29110

Unavailable

22

ADJUSTER, CABLE

13577-22600

$6.58

23

BOOT

13681-16601

$7.78

24

NUT

13661-16600

$4.37

25

SPRING, THROTTLE VALVE This part replaces 13573-97010.

13573-30900

$8.13

26

O RING This part replaces 13295-28010.

13295-28011

$3.07

27

SCREW, PILOT AIR

13269-15010

Unavailable

28

SPRING, PILOT AIR SCREW

13268-01010

$4.11

29

JET, MAIN | #125 OPT This part replaces 09491-25004.

09491-25009

Unavailable

29

JET,MAIN #135 | #135 OPT This part replaces 09491-27005.

09491-27015

Unavailable

29

JET, MAIN | #140 OPT This part replaces 09491-28002.

09491-28009

Unavailable

29

JET, MAIN | #145 OPT

09491-29002

$11.75
