1977 Suzuki TC185 Fuel Tank Diagram

← All diagrams

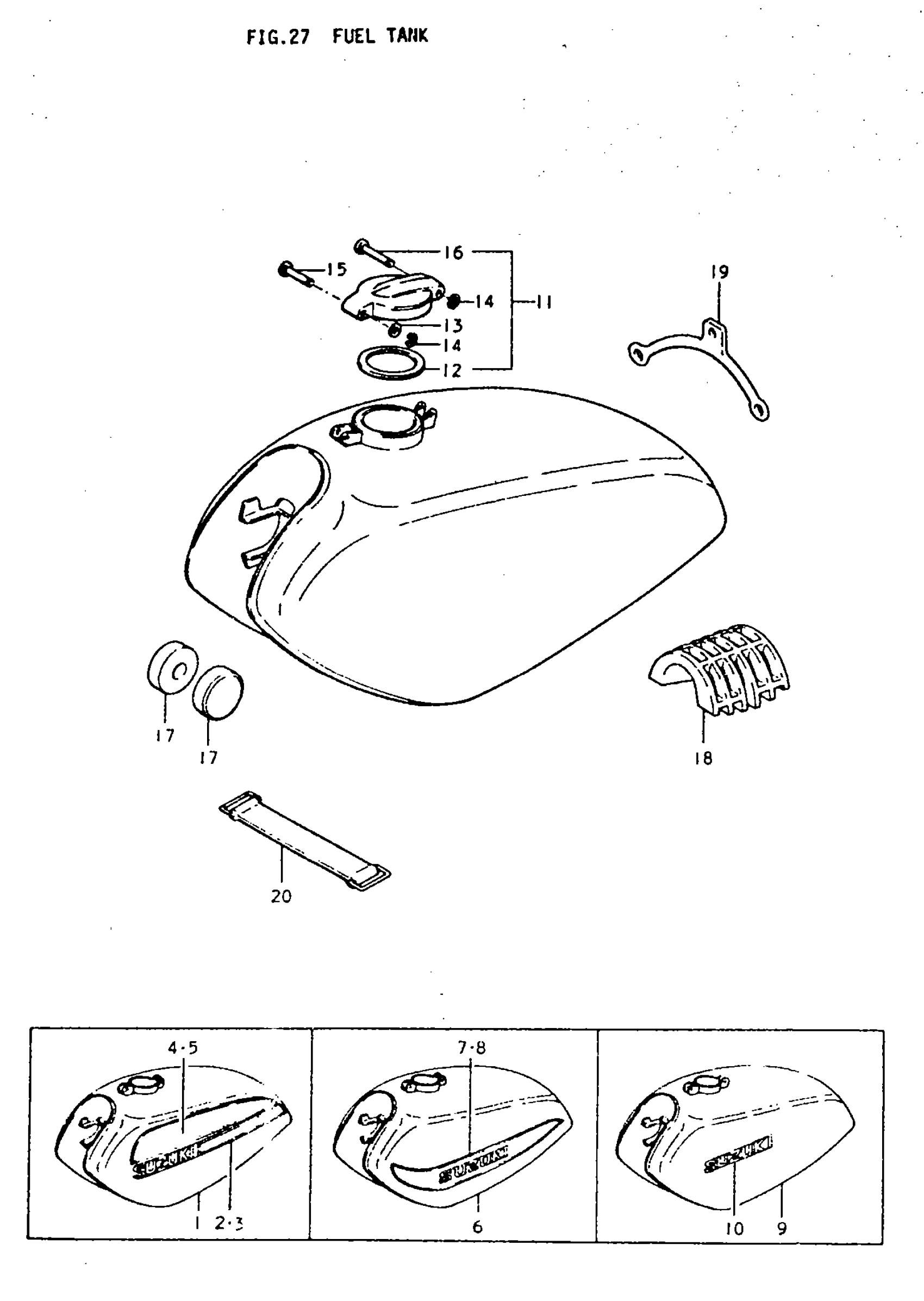

Find the part on the Fuel Tank diagram for your 1977 Suzuki TC185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC185 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | L; Includes Item(s) 2 - 5 This part replaces 44110-28400-288.

44110-28690-737

1
Out of stock

2

EMBLEM, RH | L

68111-28400-742

1
Out of stock

3

EMBLEM, LH | L

68121-28400-742

1
Out of stock

4

NO DESCRIPTION AVAILABLE | L; TO 68100-28830-7 This part replaces 68115-28400-718.

68100-28830-718

1
Out of stock

5

NO DESCRIPTION AVAILABLE | L; TO 68100-28830-7 This part replaces 68125-28400-718.

68100-28830-718

1
Out of stock

6

NO DESCRIPTION AVAILABLE | M; TO 44110-28671-0; Includes Item(s) 7 - 8 This part replaces 44110-28650-00J.

44110-28690-737

1
Out of stock

7

NO DESCRIPTION AVAILABLE | M; TO 68100-25860-9 This part replaces 68115-25600-991.

68100-25860-991

1
Out of stock

8

NO DESCRIPTION AVAILABLE | M; TO 68100-25860-9 This part replaces 68125-25600-991.

68100-25860-991

1
Out of stock

9

NO DESCRIPTION AVAILABLE | A This part replaces 44110-28671-00N.

44110-28690-737

1
Out of stock

9

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 10 - 10 This part replaces 44110-28690-797.

44110-28690-737

1
Out of stock

10

EMBLEM | A; FROM 68111-41001-538

68111-25610-538

2
Out of stock

10

EMBLEM | B This part replaces 68111-28610-064.

68111-43400-13L

2
Out of stock

11

CAP ASSY,FUEL T | Includes Item(s) 12 - 16 This part replaces 44200-33011.

44200-33012

1
Out of stock

12

1

$9.56

In stock

13

WASHER

44238-33010

1
Out of stock

14

E RING

09383-02003

2
Out of stock

15

PIN, FRONT

44239-33010

1
Out of stock

16

PIN, LOCK

44233-33010

1
Out of stock

17

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

18

1

$6.85

In stock

19

BAND

09462-00042

1
Out of stock

20

BAND

09462-00007

1

$3.98

In stock
