1977 Suzuki TC185 Piston - Crankshaft Diagram

← All diagrams

Find the part on the Piston - Crankshaft diagram for your 1977 Suzuki TC185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

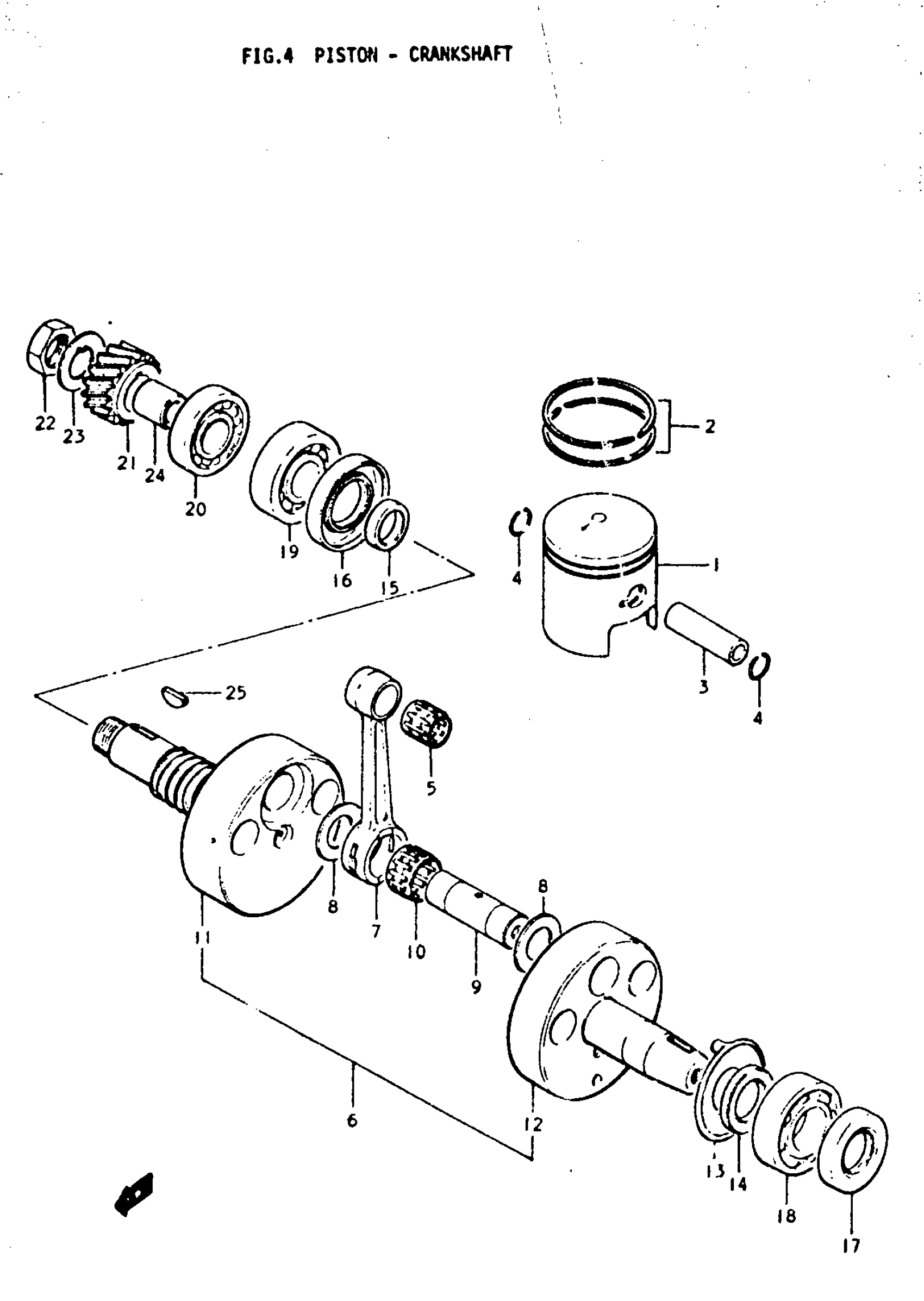

1977 Suzuki TC185 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON | L,M,A; TO 12110-29001 This part replaces 12110-29000.

12110-29001

1
Out of stock

1

PISTON | B

12110-29001

1
Out of stock

1

PISTON SET | L,M,A; OS:0.5 TO 12110-29711 This part replaces 12110-29710.

12103-29830-050

1
Out of stock

1

PISTON SET | B; OS:0.5 This part replaces 12110-29711.

12103-29830-050

1
Out of stock

1

NO DESCRIPTION AVAILABLE | L,M,A; OS:1.0 TO 12110-29721 This part replaces 12110-29720.

12110-29001-100

1
Out of stock

1

NO DESCRIPTION AVAILABLE | B; OS:1.0 This part replaces 12110-29721.

12110-29001-100

1
Out of stock

2

RING SET, PISTON

12140-29010

1

$27.68

In stock

2

1

$49.08

In stock

2

RING SET, PLSTON | OS:1.0 FROM 12140-29720 This part replaces 12140-29760.

12140-97311

1
Out of stock

3

PIN, PISTON | B

12151-29001

1

$15.27

In stock

4

CIRCLIP

09381-16001

2

$1.80

In stock

5

1

$15.34

In stock

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-29100

1
Out of stock

7

CONECTING ROD

12161-29100

1
Out of stock

8

THRUST WASHER | 24x40x1

09160-24004

2
Out of stock

9

PIN, CRANK

12211-29100

1
Out of stock

10

1

$101.33

In stock

11

CRANKSHAFT, RH

12220-29101

—
Out of stock

12

CRANKSHAFT, LH

12261-29100

—
Out of stock

13

PLATE, OIL GUIDE

12511-29100

1

$11.37

In stock

14

SPACER, LH | 25x36x3

09180-25041

1
Out of stock

15

SPACER, RH | 30x40x10.5

09180-30014

1
Out of stock

16

OIL SEAL, RH

09289-40002

1
Out of stock

17

1

$7.27

In stock

18

BALL BEARING, LH

09269-25013

1

$51.83

In stock

20

NO DESCRIPTION AVAILABLE This part replaces 09262-30025.

09262-30026

1
Out of stock

21

GEAR, PRIMARY DRIVE | NT:21

21111-30000

1
Out of stock

22

NUT

09140-18002

1

$4.20

In stock

23

WASHER | 18x8

09166-18001

1

$2.92

In stock

24

SPACER

09180-20055

—
Out of stock

25

KEY

08341-31059

1

$2.61

In stock
