1975 Suzuki T500J Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1975 Suzuki T500J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

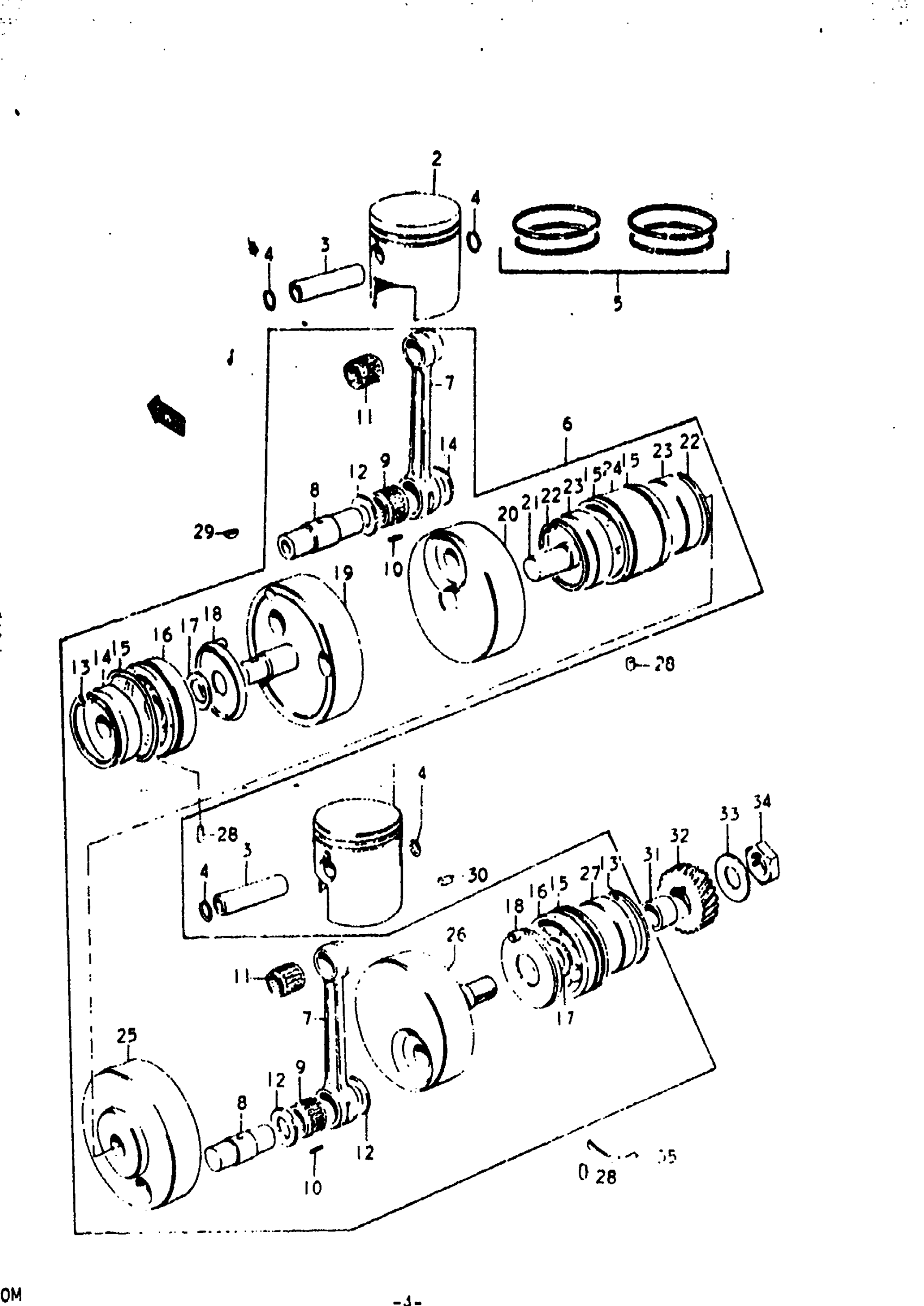

1975 Suzuki T500J Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON, RH | R,J,K,L; TO 12110-15102 This part replaces 12110-15101.

12110-15103

1
Out of stock

1

PISTON, RH | M

12110-15102

—
Out of stock

1

PISTON SET | R,J,K,L; OS:0.5 OPT TO 12110-31711 This part replaces 12110-15721.

12103-31830-050

1
Out of stock

1

PISTON, RH | M; OPT

12110-31711

—
Out of stock

1

PISTON SET, OS: | R,J,K,L; OS:1.0 OPT TO 12110-31721 This part replaces 12110-15731.

12103-31830-100

1
Out of stock

1

PISTON SET, OS: | M This part replaces 12110-31721.

12103-31830-100

1
Out of stock

2

PISTON, LH | R,J,K,L; TO 12120-15102 This part replaces 12120-15101.

12120-15103

1
Out of stock

2

PISTON, LH | M

12120-15102

—
Out of stock

2

PISTON SET,OS:0 | R,J,K,L; OS:0.5 OPT TO 12120-31711 This part replaces 12120-15721.

12103-31870-050

1
Out of stock

2

PISTON SET,OS:0 | M; OPT This part replaces 12120-31711.

12103-31870-050

1
Out of stock

2

PISTON SET,0S: | R,J,K,L; OS:1.0 OPT TO 12120-31721 This part replaces 12120-15731.

12103-31870-100

1
Out of stock

2

PISTON SET,0S: | M This part replaces 12120-31721.

12103-31870-100

1
Out of stock

3

PIN, PISTON | R,J,K,L,M This part replaces 12151-15000.

12151-13A00-0A0

2
Out of stock

4

CIRCLIP, PISTON PIN | R,J,K,L,M

09381-18002

4
Out of stock

5

RING ASSY, PISTON | R,J,K,L; FROM 12140-15011

12140-15013

2
Out of stock

5

RING ASSY, PISTON | M; FROM 12140-15012

12140-30010

2
Out of stock

5

RING ASSY, PISTON | R,J,K,L; OS:0.5; FROM 12140-15700OPT

12140-15013-050

2
Out of stock

5

RING ASSY, PISTON | M; OS:0.5; FROM 12140-16701; OPT

12140-30010-050

2
Out of stock

5

RING ASSY, PISTON | R,J,K,L; OS:1.0; FROM 12140-15710;OPT

12140-15013-100

2
Out of stock

5

RING ASSY, PISTON | M; OS:1.0; FROM 12140-15711; OPT

12140-30010-100

2
Out of stock

6

CRANKSHAFT ASSY | R,J,K,L

12001-15802

—
Out of stock

6

CRANKSHAFT ASSY | M; Includes Item(s) 7 - 27

12200-15000

1
Out of stock

7

ROD, CONNECTING | R,J,K,L,M

12161-15000

2
Out of stock

8

PIN, CRANK | R,J,K,L,M

12211-15000

2
Out of stock

9

CAGE, NEEDLE ROLLER | R,J,K,L,M

12215-15010

2
Out of stock

10

ROLLER | R,J,K,L,M

09261-03009

32
Out of stock

11

BEARING (18X23X24) | R,J,K,L,M This part replaces 09263-18005.

09263-18021

2
Out of stock

12

THRUST WASHER | R,J,K,L,M; 24x44x1

09160-24007

4
Out of stock

13

CIRCLIP | R,J,K,L,M

09381-62001

2
Out of stock

14

OIL SEAL | R,J,K,L,M

09283-25014

1
Out of stock

15

O RING | R,J,K,L,M

09280-76001

4
Out of stock

16

BEARING, CRANKSHAFT | R,J,K,L,M

09269-25003

2
Out of stock

17

WASHER, SUB T/M DRIVE | R,J,K,L; 25x40x1 This part replaces 08211-25401.

09181-25251

2
Out of stock

17

THRUST WASHER | M

08212-25401

2
Out of stock

18

PLATE, OIL GUIDE | R,J,K,L,M

12511-15000

2
Out of stock

19

CRANKSHAFT, LH | R,J,K,L,M

12261-15000

1
Out of stock

20

WHEEL, MIDDLE CRANK LH | R,J,K,L,M

12251-15000

—
Out of stock

21

CRANKSHAFT, MIDDLE | R,J,K,L,M

12231-15000

1
Out of stock

22

CIRCLIP | R,J,K,L,M

09381-65001

2
Out of stock

23

OIL SEAL | R,J,K,L,M

09283-30003

2
Out of stock

24

BEARING, MIDDLE CRANK | R,J,K,L,M

09269-30002

1
Out of stock

25

CRANKSHAFT, MIDDLE | R,J,K,L,M This part replaces 12241-15000.

12231-15001

—
Out of stock

26

CRANKSHAFT, RH | R,J,K,L,M

12221-15000

1
Out of stock

27

OIL SEAL | R,J,K,L,M

09283-35002

1
Out of stock

28

PIN | R,J,K,L,M This part replaces 06211-07123.

04221-07129

3
Out of stock

29

KEY | R,J,K,L,M

08341-31039

1
Out of stock

30

KEY | R,J,K,L,M

09421-07001

1
Out of stock

31

SPACER, PRIMARY GEAR | R,J,K,L,M; 25x35x11.8

09180-25012

1
Out of stock

32

GEAR, PRIMARY DRIVE | R,J,K,L,M; NT:16

21111-15001

1
Out of stock

33

WASHER | R,J,K,L,M; 20.4x40x2

09164-20002

1
Out of stock

34

NUT | R,J,K,L,M

09140-20007

1
Out of stock

35

C RING | R,J,K,L,M

09390-80001

1
Out of stock
