1975 Suzuki T500J Crankcase Cover Diagram

← All diagrams

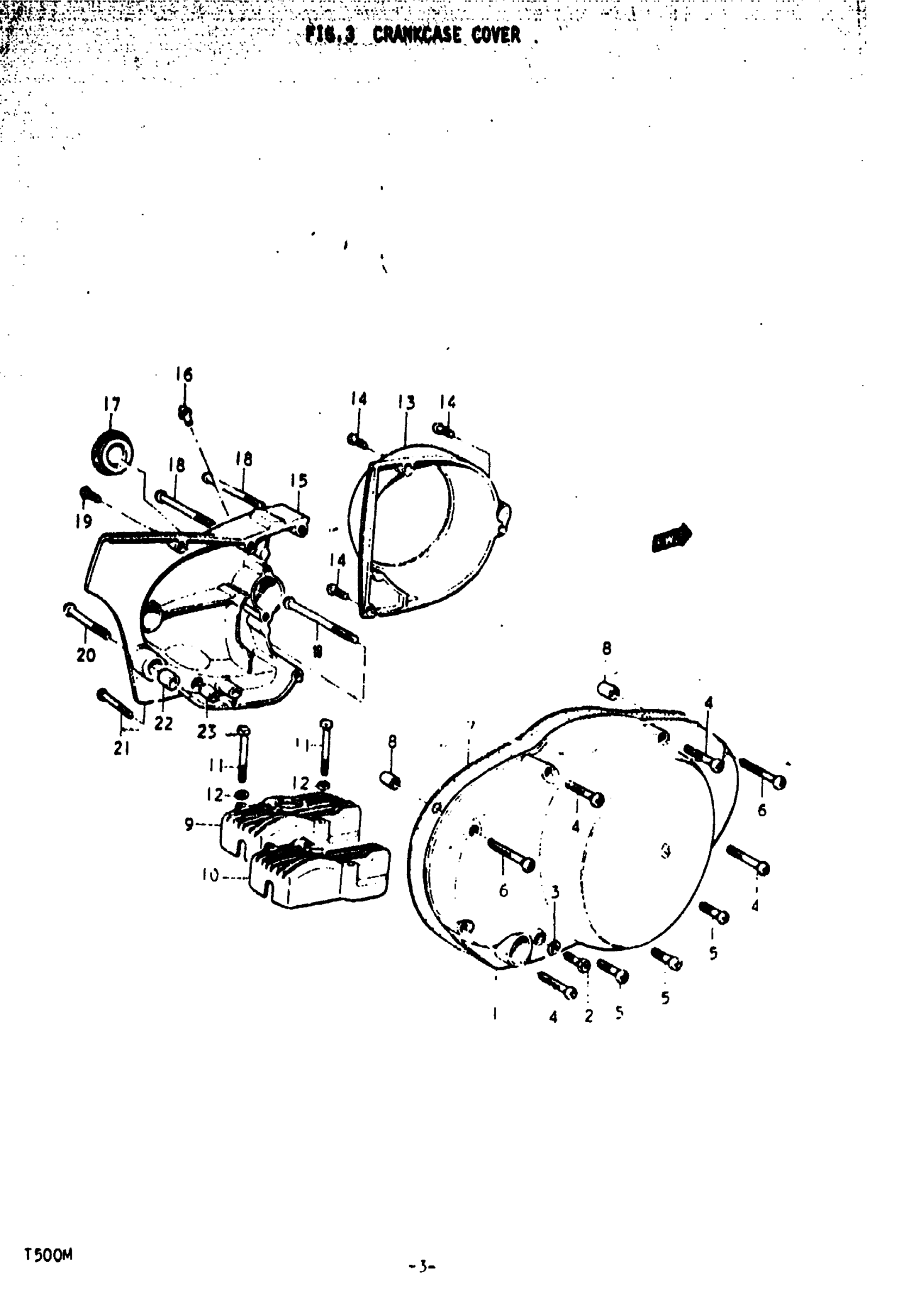

Find the part on the Crankcase Cover diagram for your 1975 Suzuki T500J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki T500J Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | R,J,K,L,M This part replaces 11341-15600.

11341-15601

1
Out of stock

2

SCREW (6X10) | R,J,K,L,M This part replaces 09128-06004.

09128-06044

1
Out of stock

3

GASKET, OIL LEVEL PLUG | R,J,K,L,M

09168-06001

1
Out of stock

4

SCREW (6X40) | R,J,K,L,M This part replaces 02112-06408.

02112-06407

4
Out of stock

5

SCREW | R,J,K,L,M This part replaces 02112-06258.

02112-06257

3
Out of stock

6

SCREW (6X45) | R,J,K,L,M This part replaces 02112-06458.

02112-06457

2
Out of stock

7

GASKET,CLUTCH C | R,J,K,L,M This part replaces 11482-15000.

11482-15001

1
Out of stock

8

DOWEL PIN | R,J,K,L,M

04211-09129

2
Out of stock

9

COVER, OIL PUMP | R,J This part replaces 11411-15000.

11411-15001

1
Out of stock

10

COVER, OIL PUMP | K,L,M

11411-15001

1
Out of stock

11

BOLT | R,J,K,L,M This part replaces 01112-06358.

64455-07L00

2
Out of stock

12

WASHER | R,J,K,L,M This part replaces 08322-21068.

08322-01067

2
Out of stock

13

COVER, CRANKCASE LH | R,J,K,L,M

11351-15600

—
Out of stock

14

SCREW | R,J,K,L,M This part replaces 02112-06208.

02112-06207

3
Out of stock

15

COVER, ENGINE SPROCKET | R,J,K,L,M

11361-15601

1
Out of stock

16

NIPPLE, GREASE | R,J,K,L,M

08351-11009

1
Out of stock

17

CAP, RELEASE SCREW | R,J,K,L,M

09250-30003

1
Out of stock

18

SCREW | R,J,K,L,M This part replaces 02112-06758.

02112-06757

3
Out of stock

19

SCREW | R,J,K,L,M

02112-06307

1
Out of stock

20

SCREW (6X45) | R,J,K,L,M This part replaces 02112-06458.

02112-06457

1
Out of stock

21

SCREW | R,J,K,L,M This part replaces 02112-06358.

02112-06357

1
Out of stock

22

DOWEL PIN | R,J,K,L,M

04211-09129

1
Out of stock

23

BUFFER, TOUCH DEFENCE | R,J,K,L,M

09320-18001

1
Out of stock
