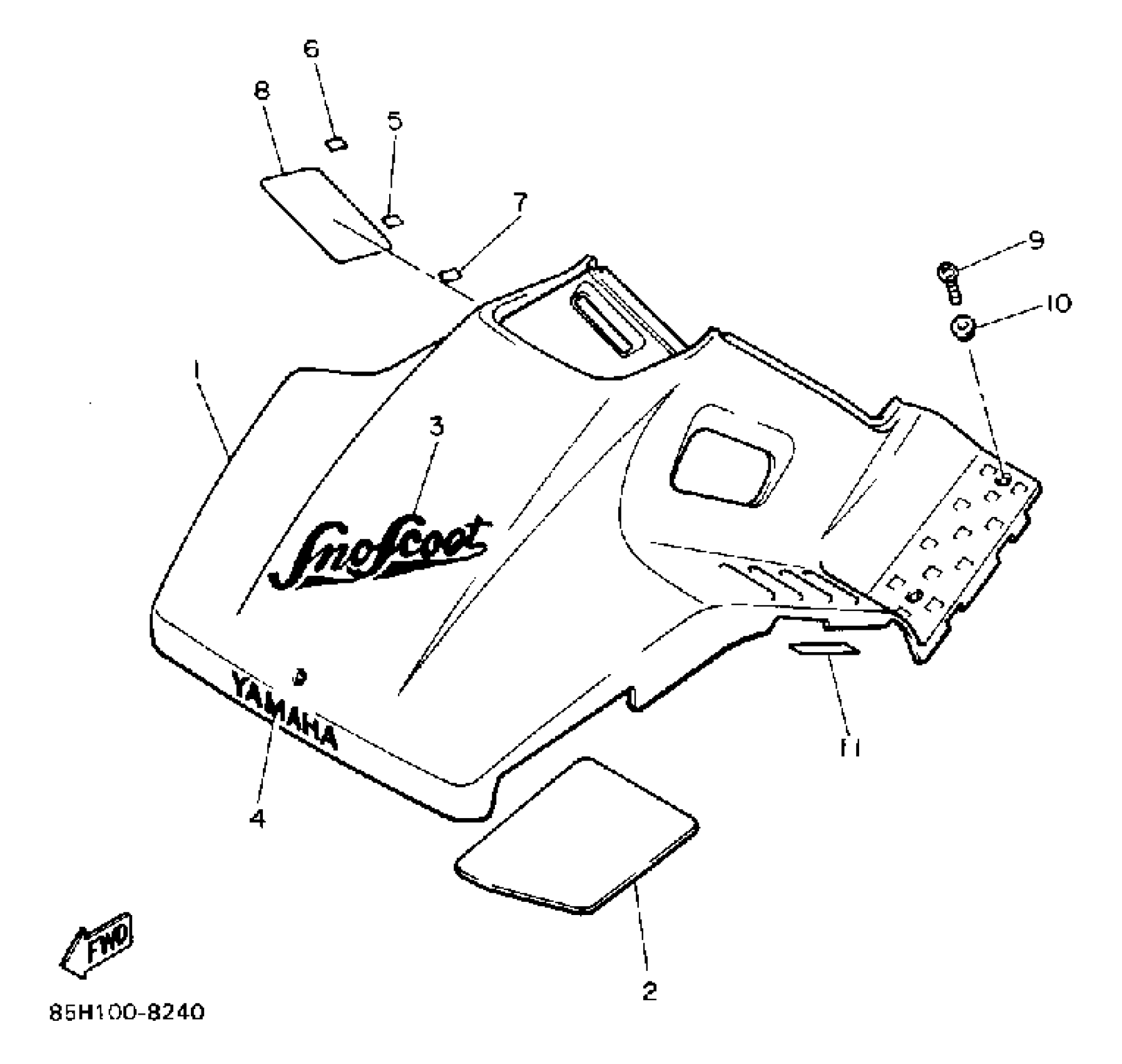

Find the part on the Shroud diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Snoscoot (SV80P) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

85G-77111-00-00

1
Out of stock

1

SHROUD

86X-77111-00-00

1
Out of stock

2

LINING, SHROUD 1

85G-77261-00-00

1
Out of stock

3

EMBLEM 1

85G-77351-10-00

1
Out of stock

4

EMBLEM, YAMAHA

99241-00120-00

1

$20.85

In stock

4

EMBLEM, YAMAHA

99242-00030-00

1
Out of stock

5

INDICATOR 2

86X-77742-00-00

1
Out of stock

6

INDICATOR 1

87A-77741-00-00

1

$2.37

In stock

7

INDICATOR 5

87A-77745-00-00

1
Out of stock

8

LABEL,WARNING 1

87B-77761-00-00

1
Out of stock

9

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

10

C0LLAR

90387-062M9-00

1
Out of stock

11

LABEL, WARNING 2

85G-77762-00-00

1
Out of stock
