1990 Yamaha Snoscoot (SV80P) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

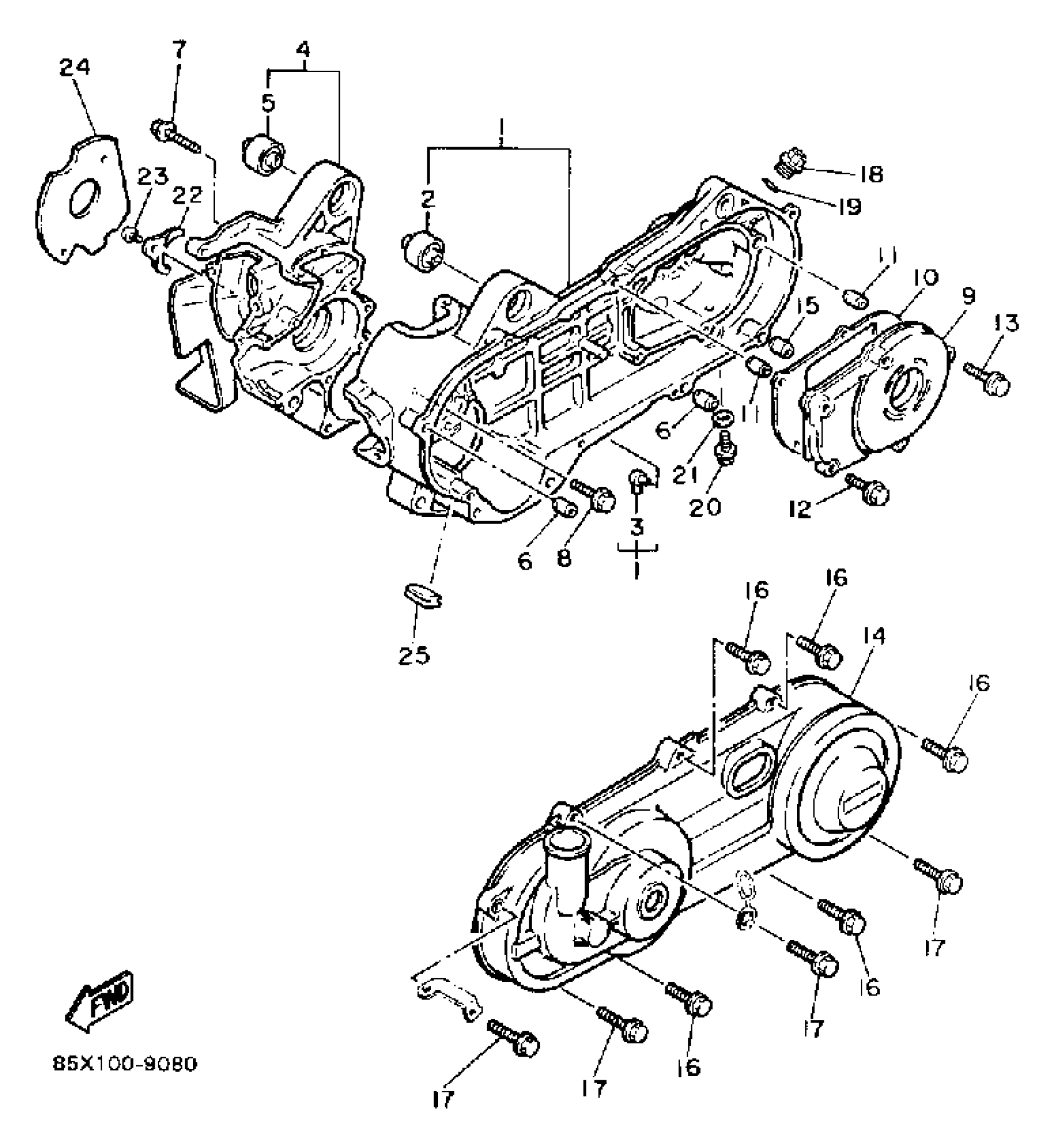

1990 Yamaha Snoscoot (SV80P) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY 1

85G-15110-00-00

1
Out of stock

2

. DAMPER, ENG MOUNT

85G-15316-01-00

1
Out of stock

3

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

4

CRANKCASE ASSEMBLY 2

85G-15120-00-00

1
Out of stock

5

. DAMPER, ENG MOUNT

85G-15316-01-00

1
Out of stock

6

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

7

BOLT, SMALL FLANGE

95024-06045-00

1

$6.89

In stock

8

BOLT, FLANGE(4BH)

95024-06035-00

1
Out of stock

9

COVER, CRANKCASE R

5G3-15421-00-00

1
Out of stock

10

GASKET, CRCS CVR 2

88W-15461-00-00

1
Out of stock

11

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

12

BOLT, FLANGE(4KG)

95024-06025-00

1
Out of stock

13

BOLT, FLANGE(4BH)

95024-06035-00

1
Out of stock

14

CRANKCASE COVER 1ASSEMBLY 1

86X-W1541-01-00

1
Out of stock

15

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

16

BOLT, SMALL FLANGE

95027-06030-00

—

$3.65

In stock

17

BOLT, SMALL FLANGE

95027-06040-00

—

$2.48

In stock

18

PLUG, STRAIGHT SCREW

90340-14119-00

1
Out of stock

19

O-RING (26H)

93210-14579-00

—

$5.69

In stock

20

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

21

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

22

HOLDER

(5G3-15128-00-00)

1
Out of stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

24

GASKET, CRANKCASE

88W-15462-00-00

1
Out of stock

25

PLUG, SPEC''L SHAPE

90338-15203-00

1
Out of stock
