1990 Yamaha Snoscoot (SV80P) Cylinder Diagram

← All diagrams

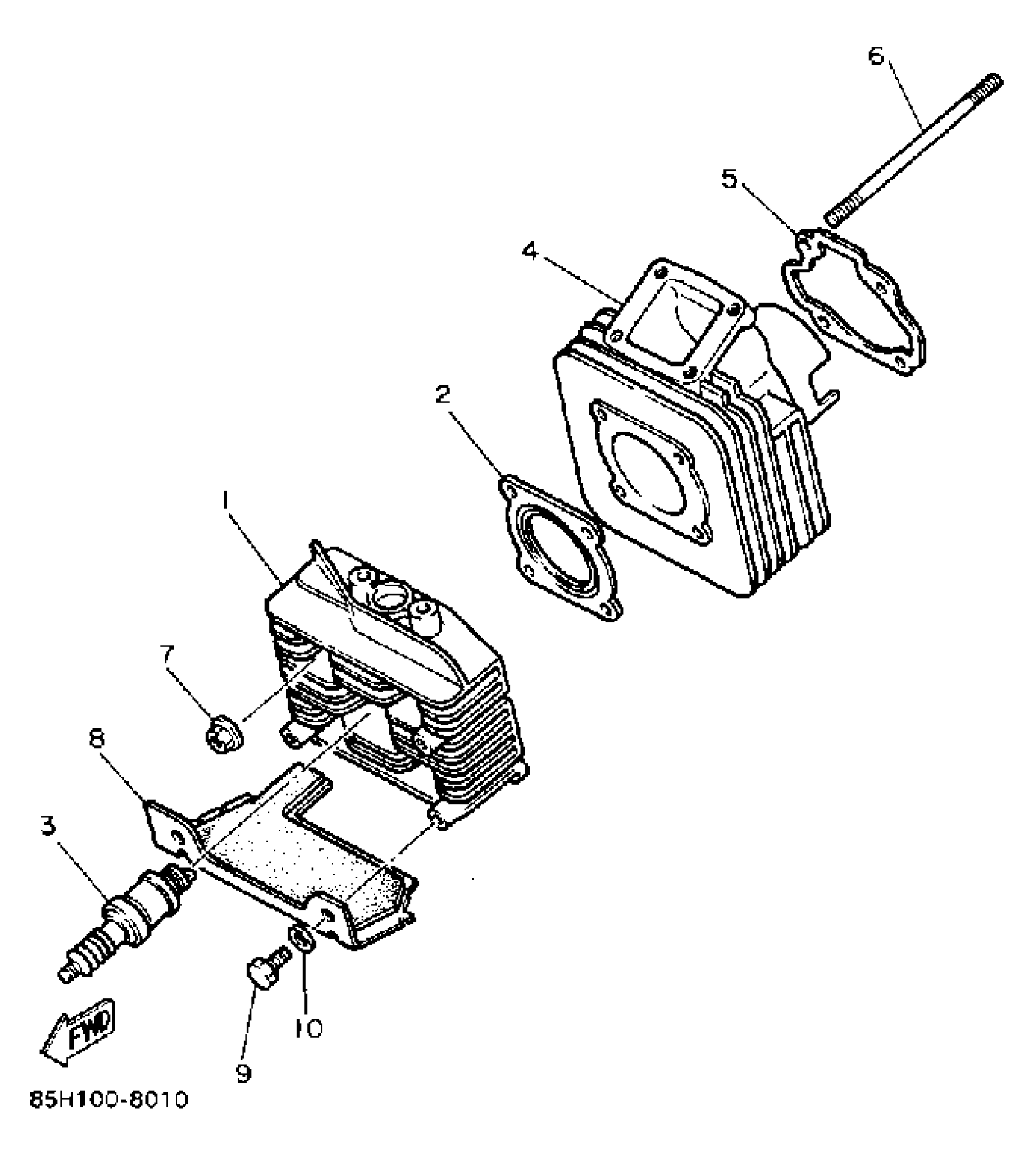

Find the part on the Cylinder diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Snoscoot (SV80P) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

32N-11111-00-00

1
Out of stock

2

GASKET, CYLINDER HEAD

3M8-11181-00-00

1
Out of stock

3

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

1
Out of stock

4

CYLINDER 1

32N-11311-00-00

1
Out of stock

5

GASKET, CYLINDER

3WX-11351-00-00

1
Out of stock

6

BOLT, STUD

90116-07356-00

1
Out of stock

7

NUT, FLANGE (17L)

90179-07381-00

1
Out of stock

8

COVER, CYLHEAD SIDE

85G-1111H-00-00

1
Out of stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock
