1990 Yamaha Snoscoot (SV80P) Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

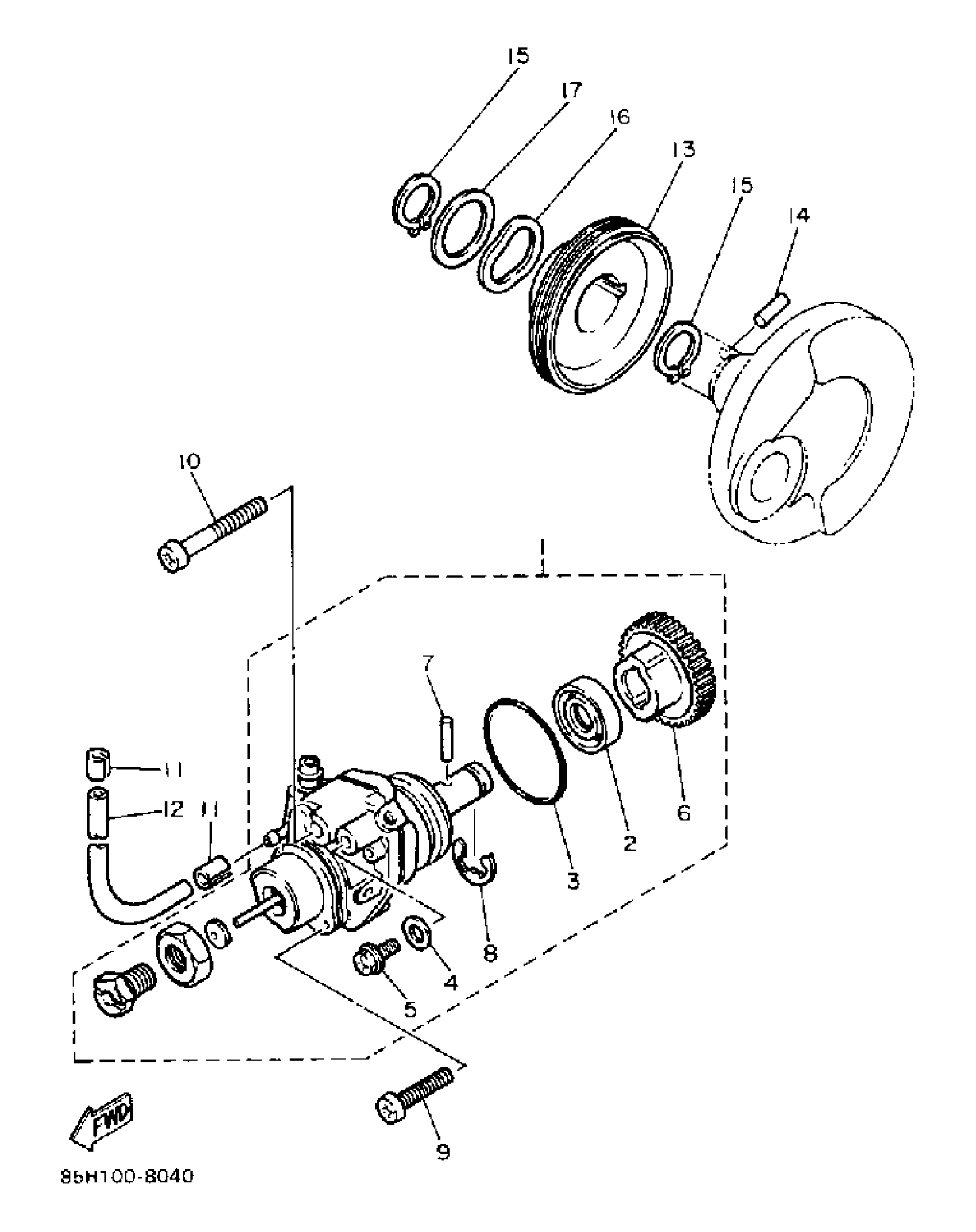

1990 Yamaha Snoscoot (SV80P) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

85G-13101-00-00

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

O-RING

93210-26240-00

1

$6.82

In stock

4

GASKET 137131870000

90430-04004-00

1
Out of stock

5

SCREW (3L5)

90149-04135-00

1

$0.96

In stock

6

GEAR, WORM WHEEL

296-13124-00-00

—

$12.75

In stock

7

PIN, SPRING

91690-30014-00

1

$6.23

In stock

8

CIRCLIP

99080-07600-00

1

$2.89

In stock

9

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

10

SCREW, PAN

98507-05035-00

1

$6.69

In stock

11

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

12

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1

$9.15

In stock

13

GEAR, PUMP DRIVE

5G3-13178-01-00

1
Out of stock

14

PIN,DOWEL (603)

93603-12007-00

1

$1.60

In stock

15

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

16

WASHER WAVE 296156430000

90206-19027-00

—

$5.78

In stock

17

SHIM

296-15644-00-00

—

$5.43

In stock
