2024 Suzuki SV650AM4(E28) Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

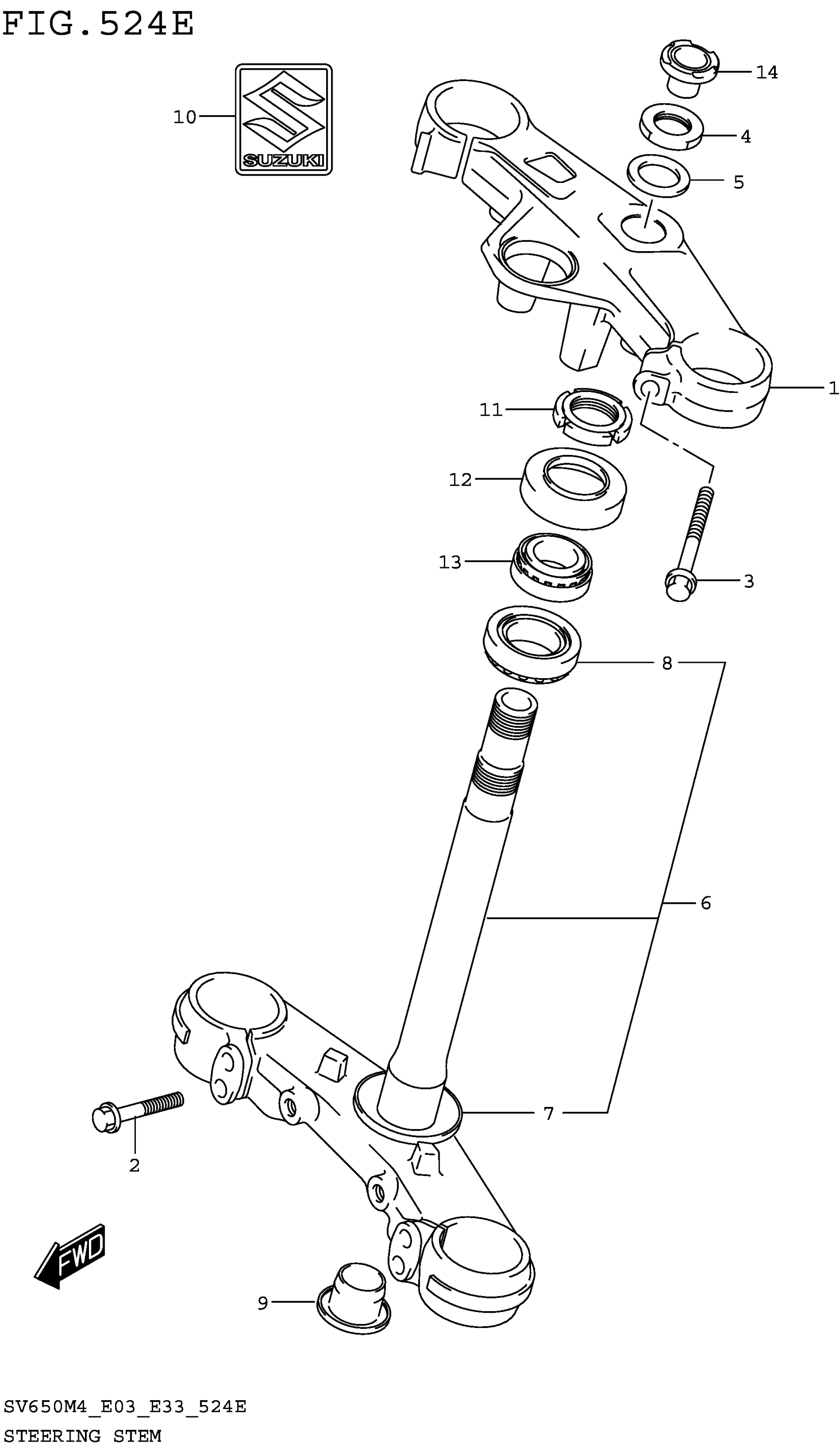

2024 Suzuki SV650AM4(E28) Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,UPPER

51311-44HB0

1
Out of stock

2

BOLT

51328-44H00

4
Out of stock

3

.BOLT,BRACKET UPPER

51328-44HB0

2
Out of stock

4

NUT

51353-13K00

1
Out of stock

5

WASHER

51356-13K00

1
Out of stock

6

BRACKET,UNDER (BLACK)

51410-44HB0-291

1
Out of stock

7

.SEAL,STEERING LWR (30.1X56X4 | (30.1X56X4)

51644-12C00

1
Out of stock

8

.BEARING (30X55X17)

09265-30020

1
Out of stock

9

CAP

51482-44H00

1
Out of stock

10

EMBLEM,S

68281-47HA0

1
Out of stock

11

NUT,STEERING STEM

51631-31F10

1
Out of stock

12

SEAL,DUST

51643-40503

1
Out of stock

13

BEARING (25X47X15)

09265-25038

1
Out of stock

14

CAP,STEERING STEM

51344-23K10

1
Out of stock
