2024 Suzuki SV650AM4(E28) Front Fork Damper Diagram

← All diagrams

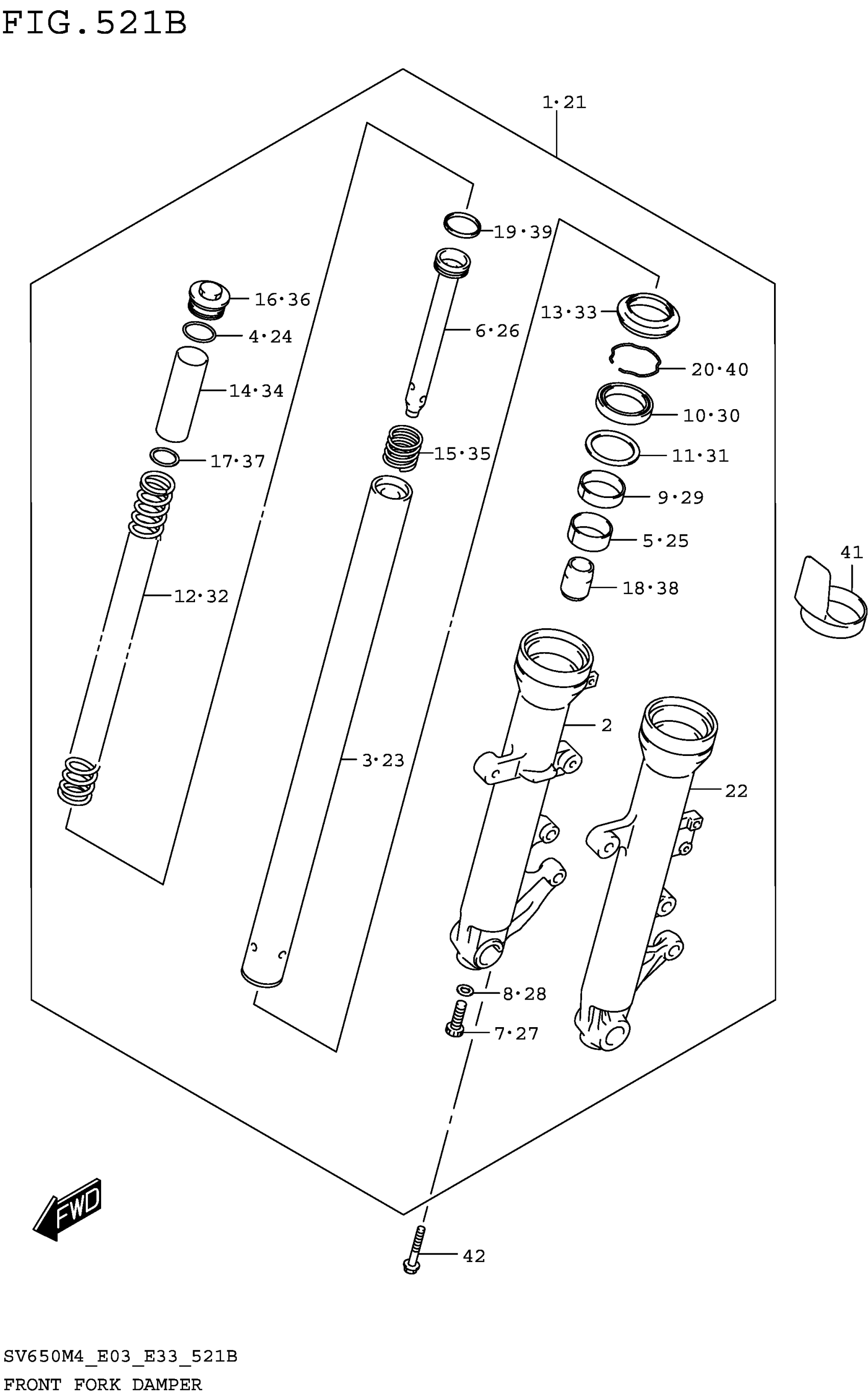

Find the part on the Front Fork Damper diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki SV650AM4(E28) Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY,FR,R (BLACK)

51103-18K00-291

1
Out of stock

2

.TUBE,OUTER RH (BLACK)

51130-18K00-291

1
Out of stock

3

.TUBE,INNER

51110-18K00

1
Out of stock

4

.O-RING

51117-12C00

1
Out of stock

5

.BUSH,SLIDE

51121-44H00

1
Out of stock

6

.CYLINDER

51146-17G20

1
Out of stock

7

.BOLT (8X18)

51147-06F10

1
Out of stock

8

1

$3.55

In stock

9

.BUSH,GUIDE

51152-01H10

1
Out of stock

10

.SEAL,OIL

51153-01H10

1
Out of stock

11

.SPACER,SEAL

51168-38B00

1
Out of stock

12

.SPRING,FRONT

51171-18K00

1
Out of stock

13

.SEAL,DUST

51173-01H00

1
Out of stock

14

.COLLAR,SPRING

51176-18K00

1
Out of stock

15

.SPRING,REBOUND

51177-17G50

1
Out of stock

16

.BOLT,FORK

51189-47D50

1
Out of stock

17

.JOINT,SPRING

51192-19C00

1
Out of stock

18

.PIECE,OIL LOCK

51195-48B31

1
Out of stock

19

.RING,PISTON

51196-12C00

1
Out of stock

20

.RING,STOPPER

51556-38B00

1
Out of stock

21

DAMPER ASSY,FR,L (BLACK)

51104-18K00-291

1
Out of stock

22

.TUBE,OUTER LH (BLACK)

51140-18K00-291

1
Out of stock

23

.TUBE,INNER

51110-18K00

1
Out of stock

24

.O-RING

51117-12C00

1
Out of stock

25

.BUSH,SLIDE

51121-44H00

1
Out of stock

26

.CYLINDER

51146-17G20

1
Out of stock

27

.BOLT (8X18)

51147-06F10

1
Out of stock

28

1

$3.55

In stock

29

.BUSH,GUIDE

51152-01H10

1
Out of stock

30

.SEAL,OIL

51153-01H10

1
Out of stock

31

.SPACER,SEAL

51168-38B00

1
Out of stock

32

.SPRING,FRONT

51171-18K00

1
Out of stock

33

.SEAL,DUST

51173-01H00

1
Out of stock

34

.COLLAR,SPRING

51176-18K00

1
Out of stock

35

.SPRING,REBOUND

51177-17G50

1
Out of stock

36

.BOLT,FORK

51189-47D50

1
Out of stock

37

.JOINT,SPRING

51192-19C00

1
Out of stock

38

.PIECE,OIL LOCK

51195-48B31

1
Out of stock

39

.RING,PISTON

51196-12C00

1
Out of stock

40

.RING,STOPPER

51556-38B00

1
Out of stock

41

PROTECTOR

51201-32F00

2
Out of stock

42

1

$4.98

In stock
