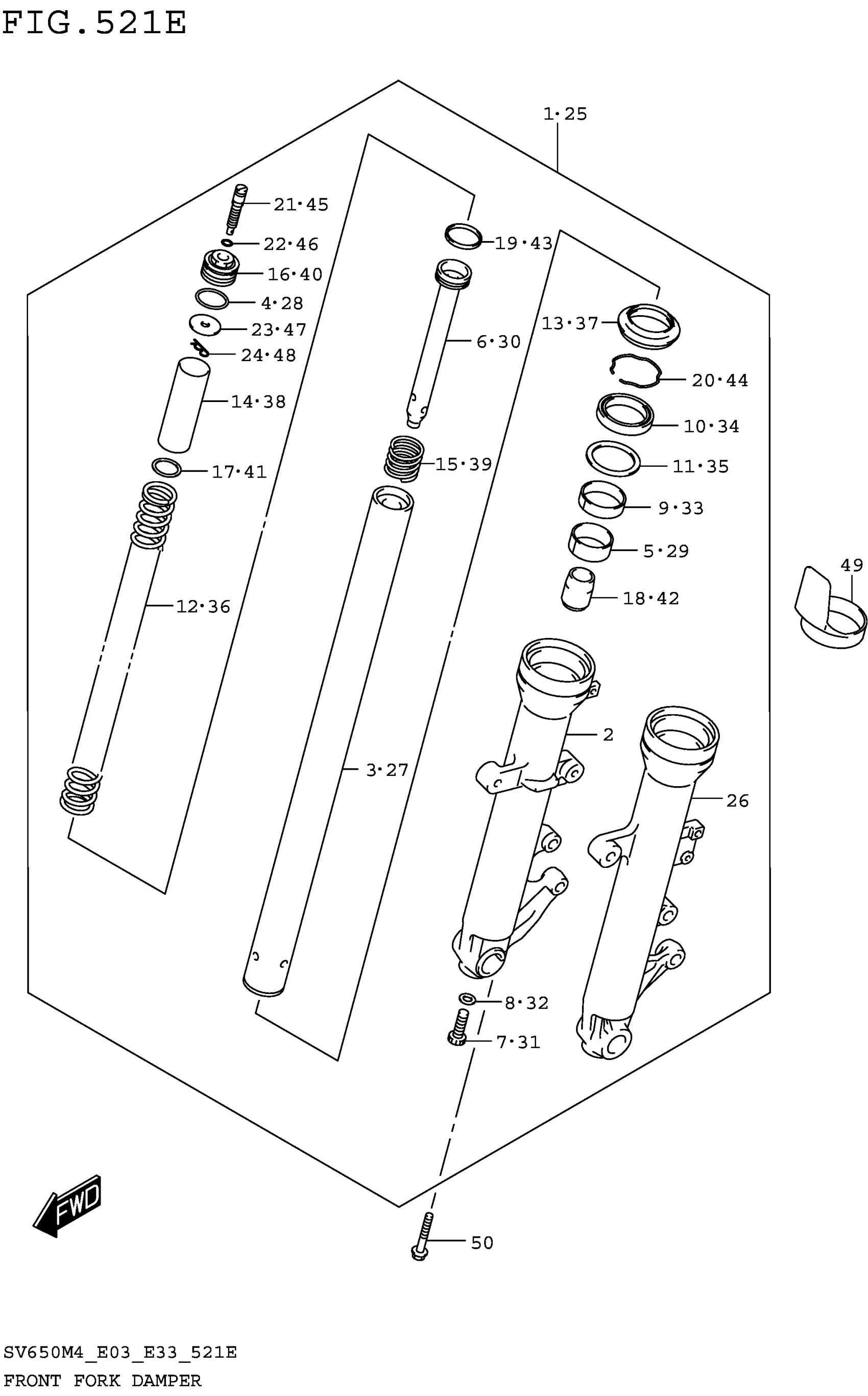

Suzuki SV650AM4(E28) (2024) FRONT FORK DAMPER (SV650XAM4 E28) Diagram

#

Description
Price

1

DAMPER ASSY,FR,R (BLACK)

51103-18K10-291

$890.00

2

.TUBE,OUTER RH (BLACK)

51130-18K00-291

$445.72

3

.TUBE,INNER

51110-18K00

$327.85

4

.O-RING

51117-12C00

$3.66

5

.BUSH,SLIDE

51121-44H00

$25.73

6

.CYLINDER

51146-17G80

$97.40

7

.BOLT (8X18)

51147-06F10

$6.75

8

O RING This part replaces 51148-31030.

51148-36011

$3.26

9

.BUSH,GUIDE

51152-01H10

$16.70

10

.SEAL,OIL

51153-01H10

$24.63

11

.SPACER,SEAL

51168-38B00

$6.12

12

.SPRING,FRONT

51171-18K10

$33.23

13

.SEAL,DUST

51173-01H00

$10.66

14

.COLLAR,SPRING

51176-18K00

$8.21

15

.SPRING,REBOUND

51177-17G50

Unavailable

16

.BOLT,FORK

51189-12C00

Unavailable

17

.JOINT,SPRING

51192-19C00

$5.65

18

.PIECE,OIL LOCK

51195-48B31

$34.12

19

.RING,PISTON

51196-12C00

$9.50

20

.RING,STOPPER

51556-38B00

$6.61

21

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

22

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

23

.SEAT,SPRING

51186-12C00

$8.52

24

.PIN,SEAT SPRING

51188-32B00

Unavailable

25

DAMPER ASSY,FR,L (BLACK)

51104-18K10-291

$890.00

26

.TUBE,OUTER LH (BLACK)

51140-18K00-291

$462.72

27

.TUBE,INNER

51110-18K00

$327.85

28

.O-RING

51117-12C00

$3.66

29

.BUSH,SLIDE

51121-44H00

$25.73

30

.CYLINDER

51146-17G80

$97.40

31

.BOLT (8X18)

51147-06F10

$6.75

32

O RING This part replaces 51148-31030.

51148-36011

$3.26

33

.BUSH,GUIDE

51152-01H10

$16.70

34

.SEAL,OIL

51153-01H10

$24.63

35

.SPACER,SEAL

51168-38B00

$6.12

36

.SPRING,FRONT

51171-18K10

$33.23

37

.SEAL,DUST

51173-01H00

$10.66

38

.COLLAR,SPRING

51176-18K00

$8.21

39

.SPRING,REBOUND

51177-17G50

Unavailable

40

.BOLT,FORK

51189-12C00

Unavailable

41

.JOINT,SPRING

51192-19C00

$5.65

42

.PIECE,OIL LOCK

51195-48B31

$34.12

43

.RING,PISTON

51196-12C00

$9.50

44

.RING,STOPPER

51556-38B00

$6.61

45

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

46

.SEAT,SPRING

51186-12C00

$8.52

47

.PIN,SEAT SPRING

51188-32B00

Unavailable

48

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

49

PROTECTOR

51201-32F00

$19.72

50

BOLT This part replaces 51321-10F00.

07130-08307

$4.98
