Description

Price

1-1

WHEEL,FRONT (17M/CXMT3.50,SIL | (SILVER) FOR QT8,YVB

54111-18K10-YMY

$628.43

1-2

WHEEL,FRONT (RED) | (RED) FOR BTH

54111-18K10-QGY

$628.43

2

SPACER,FR HUB BEARING

54731-44H00

$28.05

3-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

3-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

3-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

4

SEAL,OIL (22X40X7)

09285-22004

$5.51

5

BEARING

08123-6203B

$24.63

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

7

TIRE,FRONT (120/70ZR17 M/C 58 | 58W) SPORTMAX ROADSMART3,DUNLOP

55110-18K02

$243.88

8

AXLE,FR

54711-08F00

$117.03

9

SPACER,FR AXLE,L

54751-44H00

$19.23

10

DISC,FR BRAKE

59210-38G10

$472.48

11

BOLT (8X21)

09106-08160

$3.22

12

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

13

BOLT

07130-0512A

$2.19

14

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.530B(2-C-12) FRONT WHEEL (SV650M4 E33) FIG.530C(2-C-13) FRONT WHEEL (SV650AM4 E28) FIG.530D(2-C-14) FRONT WHEEL (SV650AM4 E33) FIG.530E(2-D-2 ) FRONT WHEEL (SV650XAM4 E28)

SPECIAL NOTE

Unavailable

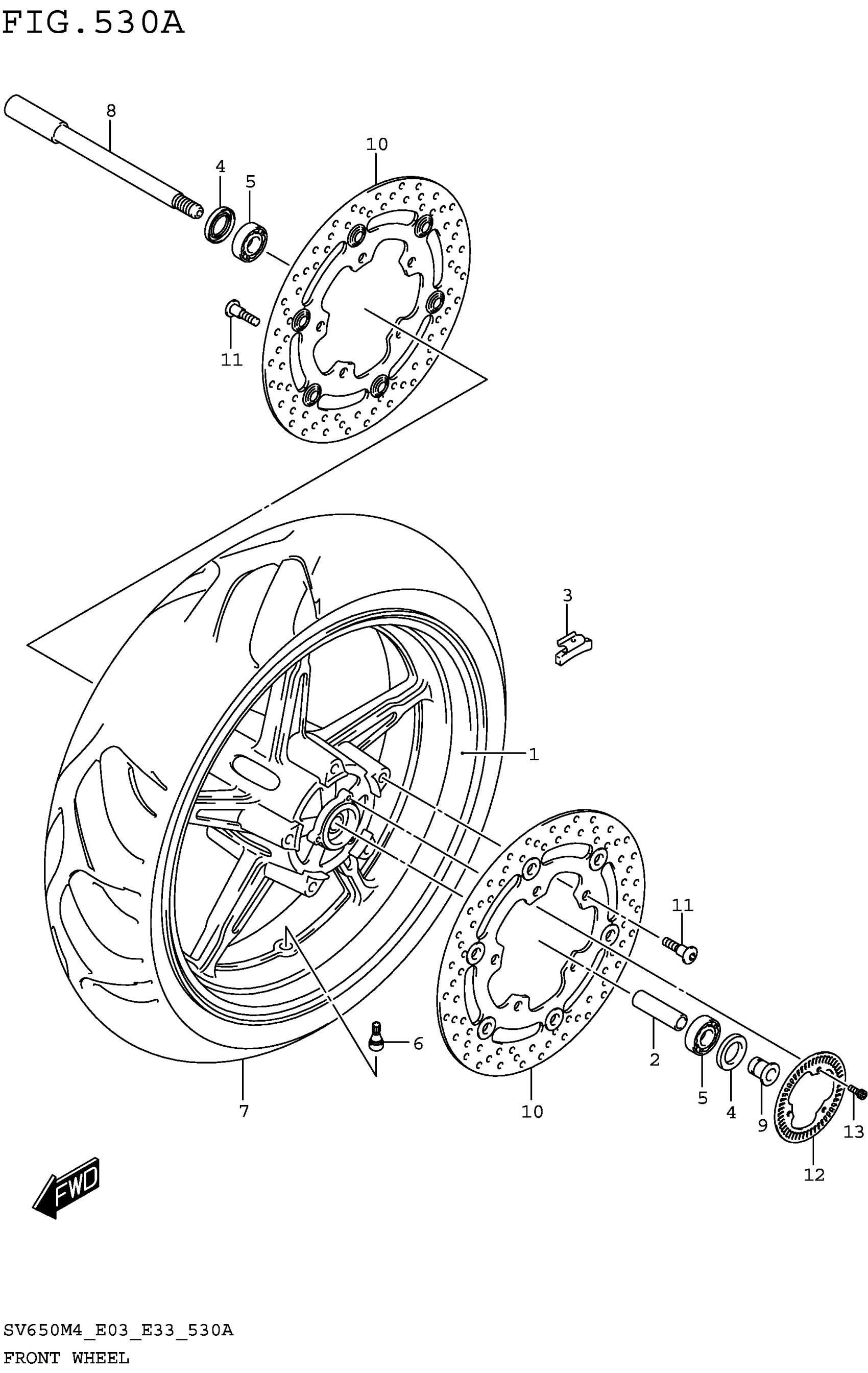

Suzuki SV650AM4(E28) (2024) FRONT WHEEL (SV650M4 E03) Diagram
